Lumberjack 5x12 Ortholinear Keyboard Kit

Lumberjack 5x12 Ortholinear Keyboard Kit

Regular price $61.00 USD
Regular price Sale price $61.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Switch Plates
×

Stock notification

Get an email when this product is back in stock.

Lumberjack 5x12 Ortholinear Keyboard Kit

We respect your privacy and don't share your email with anybody.

...

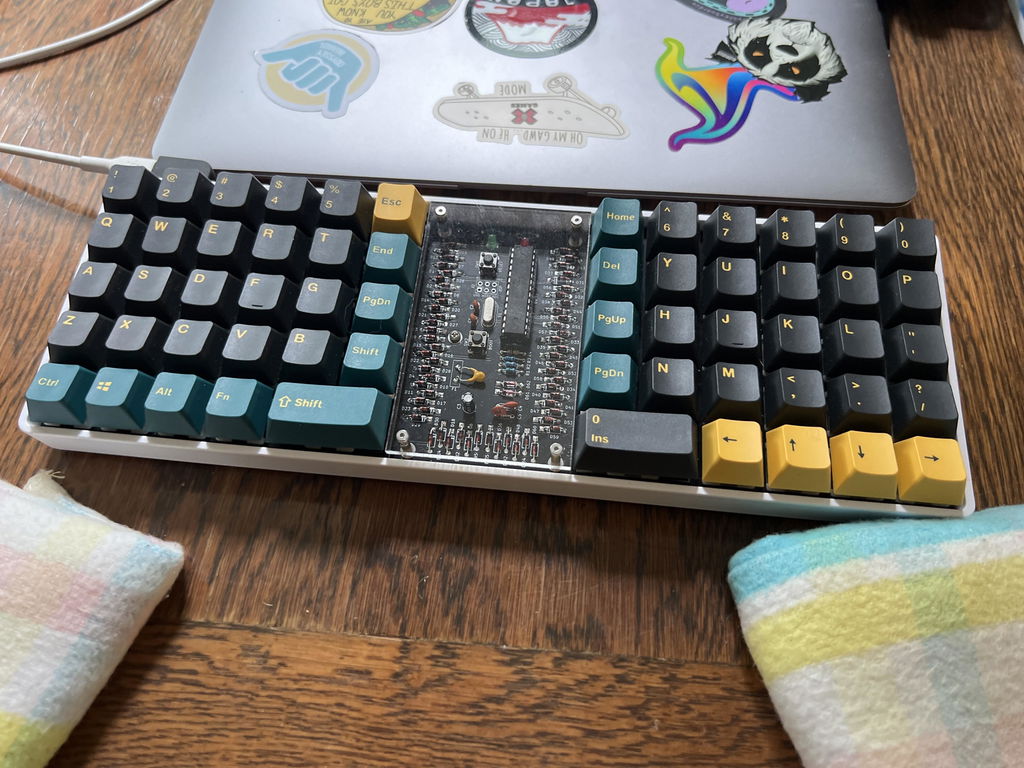

Lumberjack is a split 5x12 ortholinear keyboard using through-hole components only.

  • Designed to be easy to build with minimal soldering experience.
  • All through-hole components, no SMD soldering required.
  • Get that visible component aesthetic in a standard 60% tray-mount case.
  • Supports both USB Mini and USB-C.
  • Plateless or with FR4 switch plates.

Current Version: v1.7

This keyboard runs QMK and is configurable with Via, the find the via firmware can be found here.

Note: The ATMEGA328P Microcontroller chip included comes with a bootloader flashed meaning once built you will only be required to flash the firmware with the keymap of choice to your Lumberjack.



Kit Includes

1 x Lumberjack PCB

2 x FR4 Switch Plates (If chosen in either MX or Alps)

1 x Acrylic Component Cover

1 x ATMEGA328P-PU Microcontroller

1 x 28 Pin Narrow IC Socket

60 x Diodes (Through Hole)

2 x 3.6V Zener Diodes

2 x 22pF Multilayer Ceramic Capacitors

2 x 100nF Multilayer Ceramic Capacitors

1 x 4.7uF Electrolytic Capacitor

1 x 100mA Polyfuse

1 x USB-C Port

1 x 3mm Red LED

1 x 3mm Green LED

2 x 6x6 Tactile Switches

1 x 16MHz Crystal

2 x 75Ω Resistors

3 x 1.5kΩ Resistors

2 x 5.1kΩ Resistors

1 x 10kΩ Resistor

4 x 4mm Screws

4 x 6mm Screws

4 x 10mm Brass Standoffs


Required to Complete

1 x 60% Keyboard Case

60 x MX Switches

60 x MX Keycaps



Optional Items

2 x 2u PCB Mount Stabilizer

120 x 0305 Mill-Max Sockets (Hot Swap Switches)

120 x 7305 Mill-Max Sockets (Hot Swap Switches)


Build Instructions

Lumberjack Build Guide



This keyboard was designed by Peej.
