nice!nano v2.0

nice!nano v2.0

Regular price $27.00 USD
Regular price Sale price $27.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
×

Stock notification

Get an email when this product is back in stock.

nice!nano v2.0

We respect your privacy and don't share your email with anybody.

...

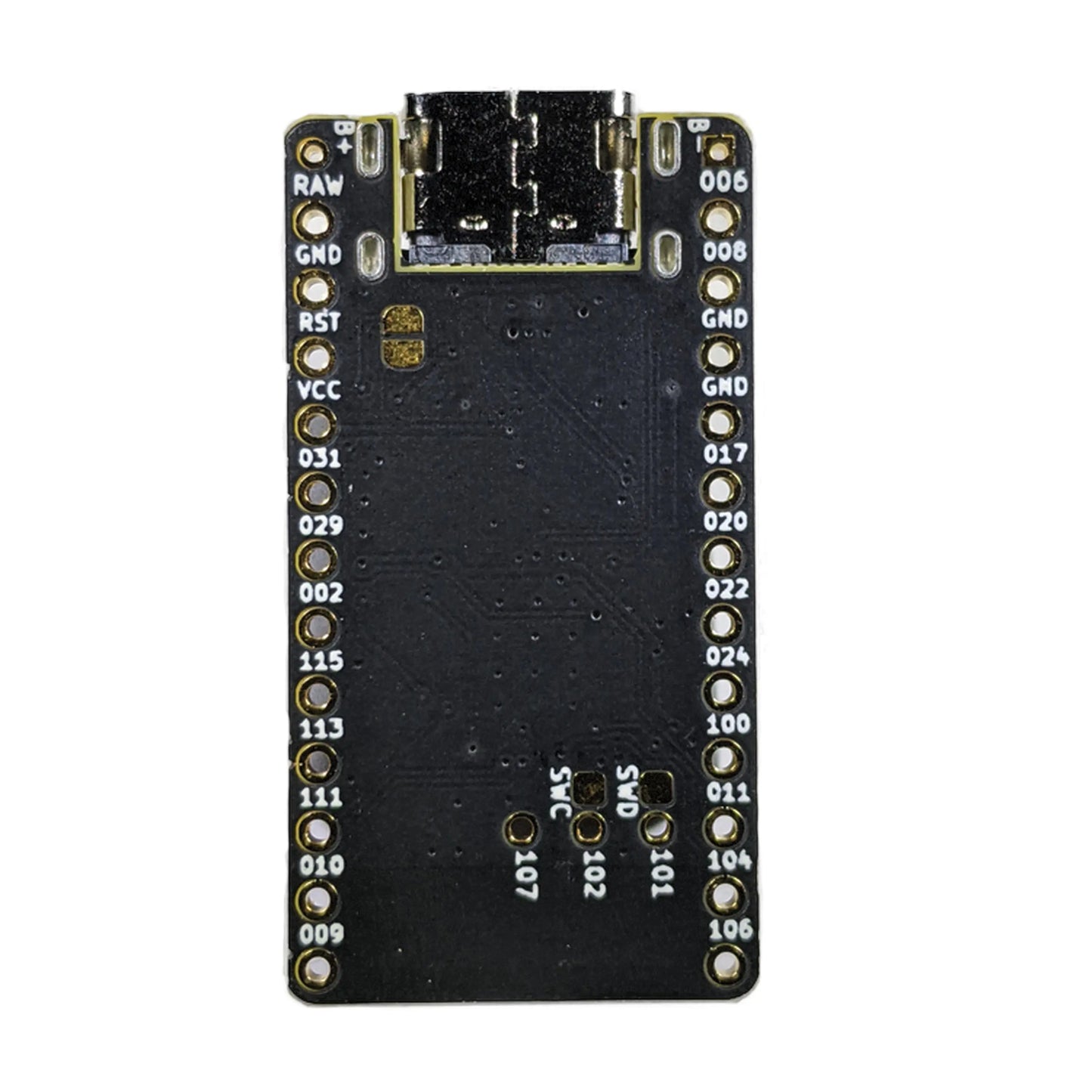

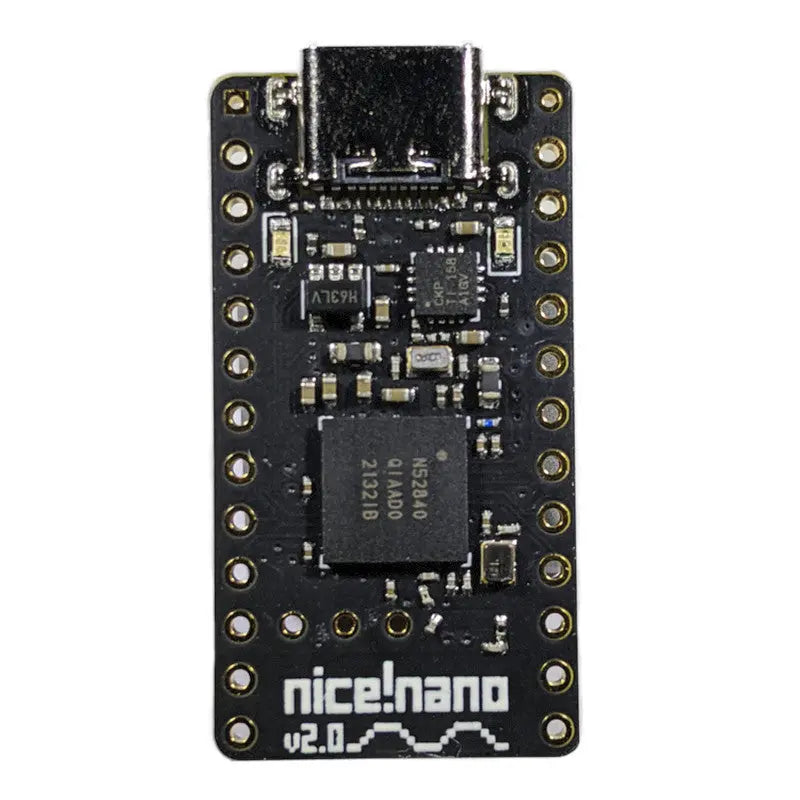

The nice!nano is a Pro Micro drop-in replacement board that makes building wireless keyboards a breeze.

Built using power-conscious design and parts, the nice!nano stretches battery life to its limits.

With a mid-mount USB-C port, the nice!nano is only 3.2mm thick. That's thinner than a Pro Micro!

The recommended Lipo battery for use with the nice!nano controller is the 351230 3.7v 120mAh (Australia shipping only)





The v2 updates:

  • Reduced quiescent (system idle) power by ~70%
  • Increased through hole pad sizes to make soldering easier
  • Reduced battery pin size to avoid incorrect installation

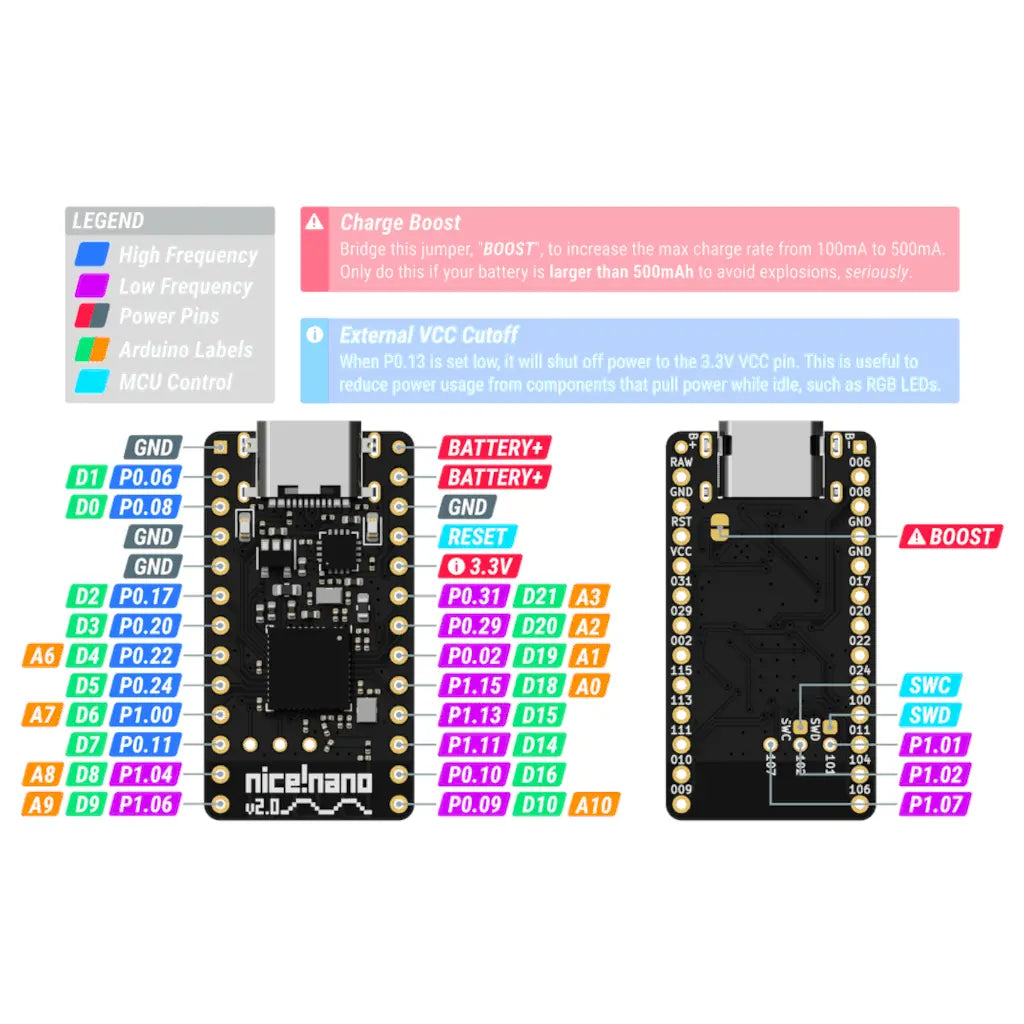

  • Charge boost added to optionally increase charge rate from ~100mA to ~500mA
  • Miscellaneous changes to reduce GPIO failures, improve thermals, and reduce component failures

Features

  • Mid mount USB-C port making the board a 3.2mm total thickness (thinner than a Pro Micro)
  • nRF52840 chip on board with 1MB of Flash and 256KB of RAM
  • Adafruit Bootloader loaded offering DFU flashing as well as flashing via UF2 storage (similar to dragging a file to a flash drive!)
  • Programmable indicator (blue) LED as well as a charging indicator (orange) LED
  • Battery voltage reader to report battery percentage to main device
  • External power can be cut off using an on board MOSFET saving power from LEDs (each can draw 1mA when off!)
  • 5 extra GPIO pins (3 thru holes and 2 pads on the back) offering a total of 23 GPIO pins
  • 3.3V out of the VCC pin to power external features
  • 32.768 kHz oscillator on board for real-time clock capabilities
  • Clean design with matte black solder mask, immersion gold plating, and Tg 170 FR4 for durability

Includes

1 x nice!nano Controller

2 x 12 Pin Headers

1 x 3 Pin Header

View full details

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
A
Austin
Fabulous product

Work as advertised. However, I got confused on this product because I bought the Contra 40% Keyboard Kit. Which said that it worked with QMK. However, even though this board was recommend for purchased with the keyboard kit, it only runs ZMK. If you want QMK you have to go with a different board. This was my first keyboard I built from a kit. However, I feel like it shouldn't be recommended on a kit that advertised that it will work with QMK.

D
Daniel Koltunczyk
Excellent choice for wireless split

After buying these, I lost 20 pounds, won the lottery, and got promoted at work!
