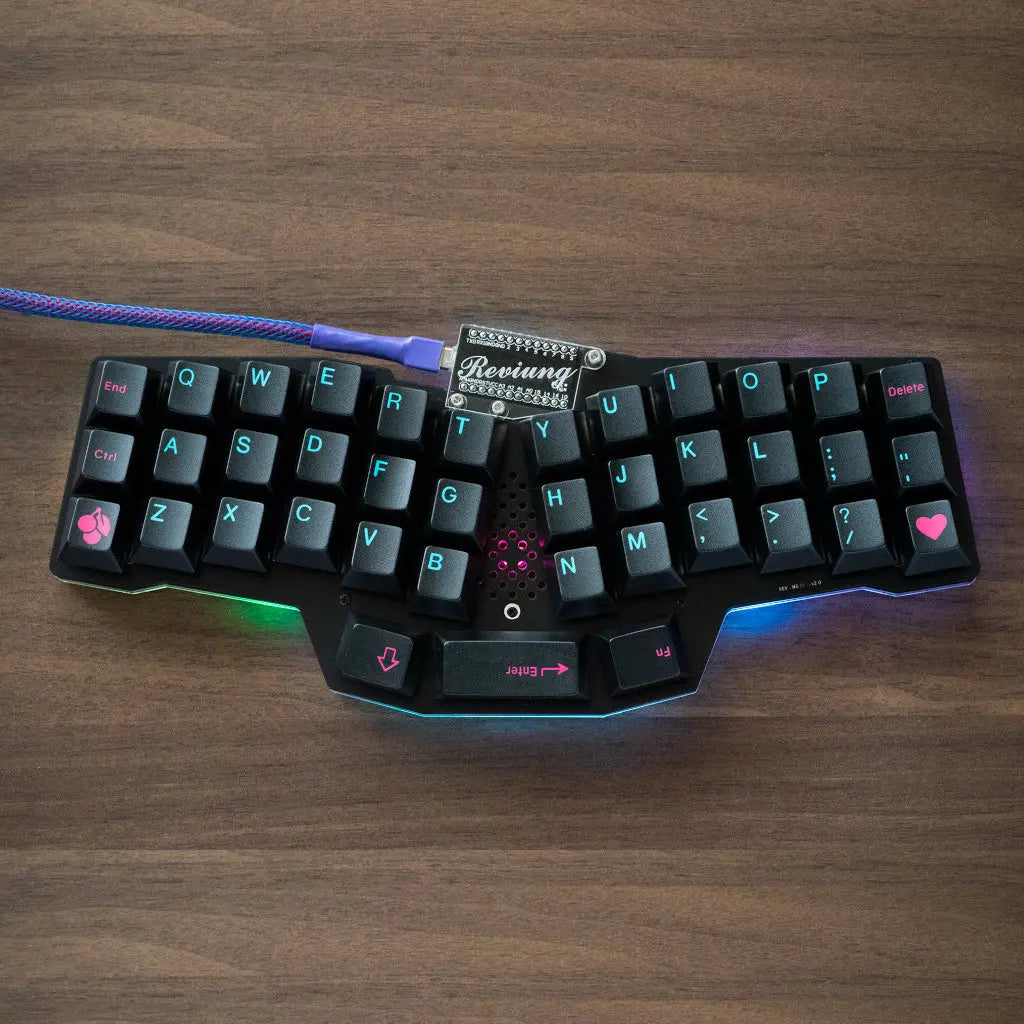

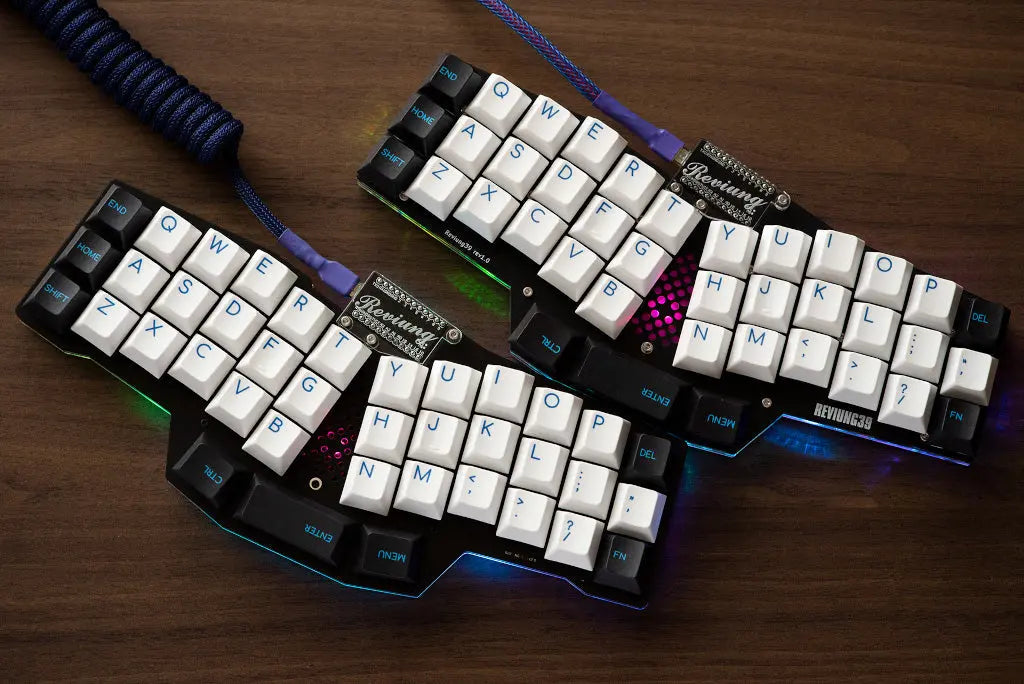

Reviung 39 MK-II Keyboard Kit

The REVIUNG39 Mk-II is 39-key column staggered keyboard.

This keyboard runs QMK and the firmware can be found here.

Kit Includes

1 x FR4 Switch Plate

1 x Reviung 39 Mk-II PCB

1 x Acrylic Bottom Plate

1 x Acrylic Controller Cover (Blank/Clear)

39 x Diodes (SMD)

39 x Kailh Hot Swap Sockets

1 x 3x6 Tactile Switch

3 x 10mm Screws

3 x M2 Hex Nuts

11 x 7mm Brass Standoffs

11 x 4mm Screws

11 x 6mm Screws

4 x Rubber Feet

Required to Complete

1 x Pro Micro Controller (Comes with Headers to Direct Attach)

39 x MX Switches

39 x MX Keycaps

Optional Items

1 x 2u PCB Mount Stabilizer

1 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

1 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)

11 x WS2812B RGB LED Rear Facing Drop Lights

Build Instructions

Reviung 39 MK-II Build Instructions

This keyboard is designed by gtips.
