Rhymestone 40% Split Keyboard Kit

Rhymestone 40% Split Keyboard Kit

Regular price $53.00 USD
Regular price $0.00 USD Sale price $53.00 USD
Sale Sold out
Shipping calculated at checkout.
×
The Rhymestone is 40-key (40%) ortholinear keyboard.

Precompiled firmware can be found here.

Kit Includes
2 x FR4 Switch Plates
2 x Rhymestone PCBs
2 x Acrylic Bottom Plates
2 x Acrylic OLED Cover Plates
1 x TRS Cable
2 x TRRS Sockets
2 x Tactile Switches
2 x .91" OLED Displays
40 x Kailh Hotswap Sockets
40 x Diodes (SMD)
8 x 6mm Brass Standoffs
4 x 10mm Brass Standoffs
12 x 4mm Screws
12 x 6mm Screws
8 x Clear Rubber Feet

Required to Complete
2 x Pro Micro Controllers (Headers to Direct Attach)
40 x MX Keycaps

Optional Items
2 x EZ-Solder Headers (Enable Controller Hot Swap)

Build Instructions
Rhymestone Build Guide

This keyboard is designed by Marksard
View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tareq Anuar
Good Intermediate Board

This board is a good intermediary board or introductory board to split keyboards. From regular keyboards, I went to a pre-built 40%, then to this. Eventually, I'll probably move onto a low profile split keyboard with splays and column stagger which is why this is an intermediary board.

This board does have some problems. Due to the shortage of ProMicros, you'd have to recompile firmware for whatever microcontroller you picked up. The Helios that is sold here is really good for that and there are converters in the QMK repository.

Second, the guide is basically in Japanese. It's not too bad cause the pictures are very self-explanatory, but I wanted to mention that.

LEDs are hard to solder. This is just a general note. Any board with LEDs will face this issue. Make sure you have a good soldering iron that can regulate its temperature, good solder, and flux.

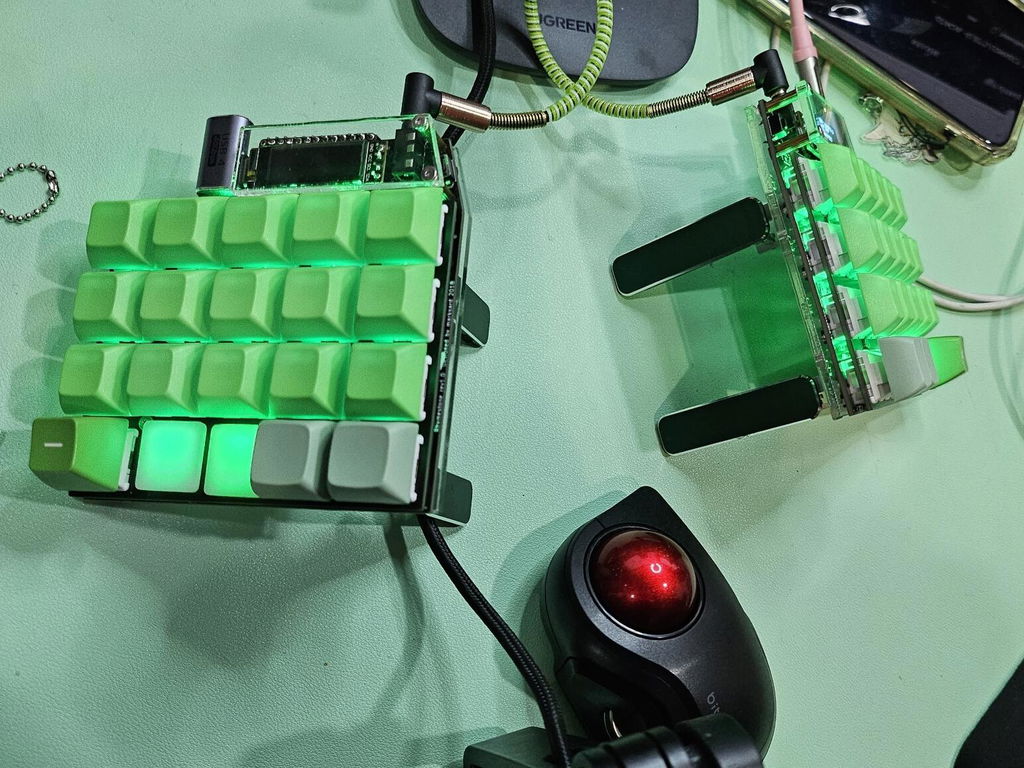

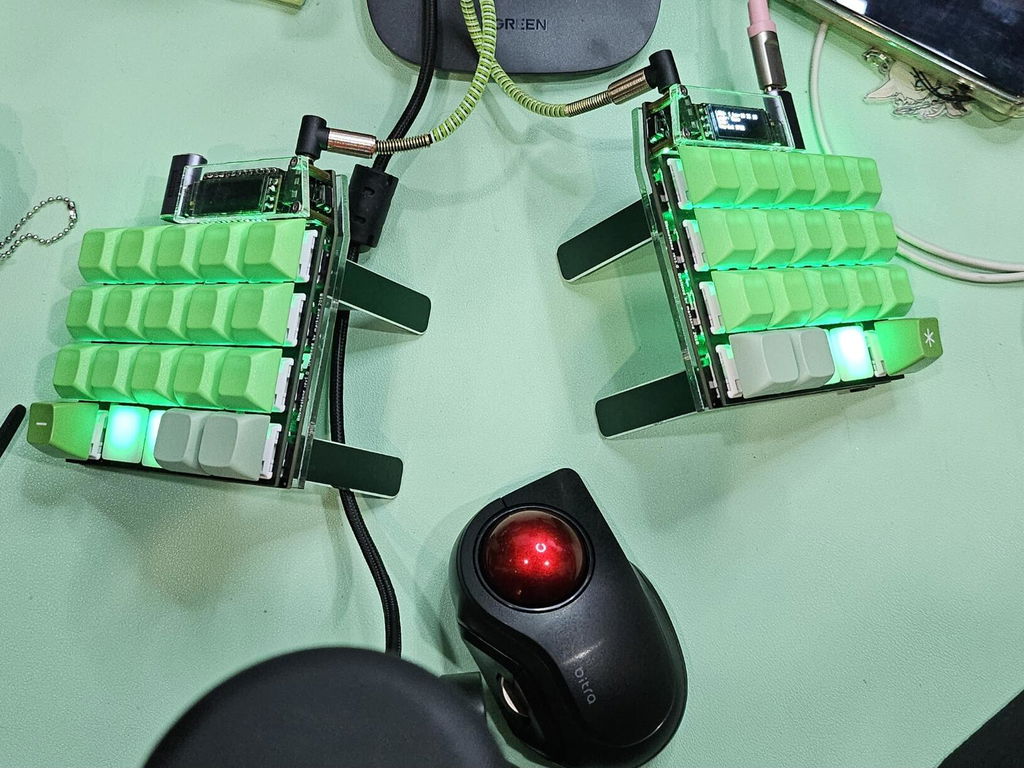

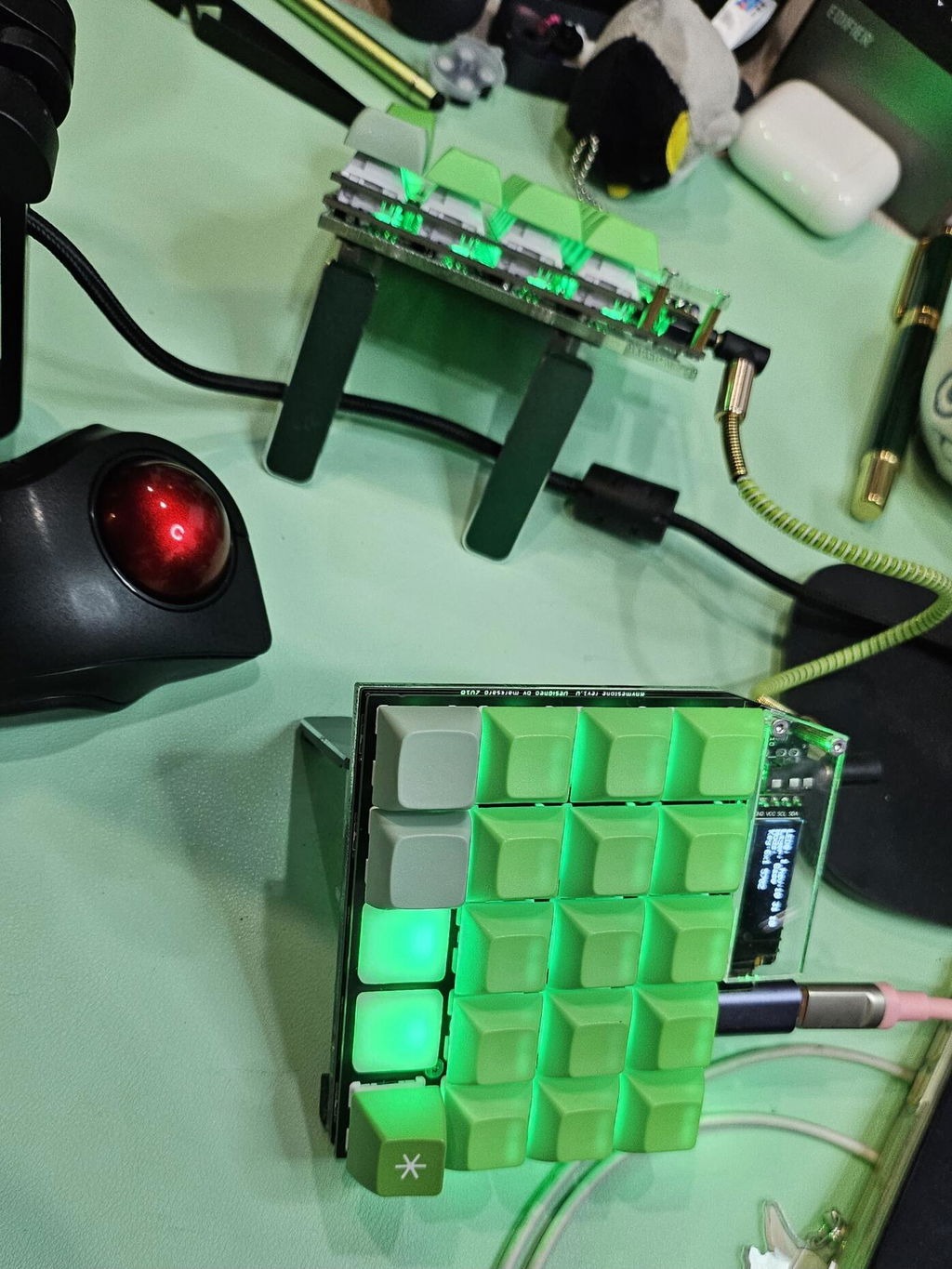

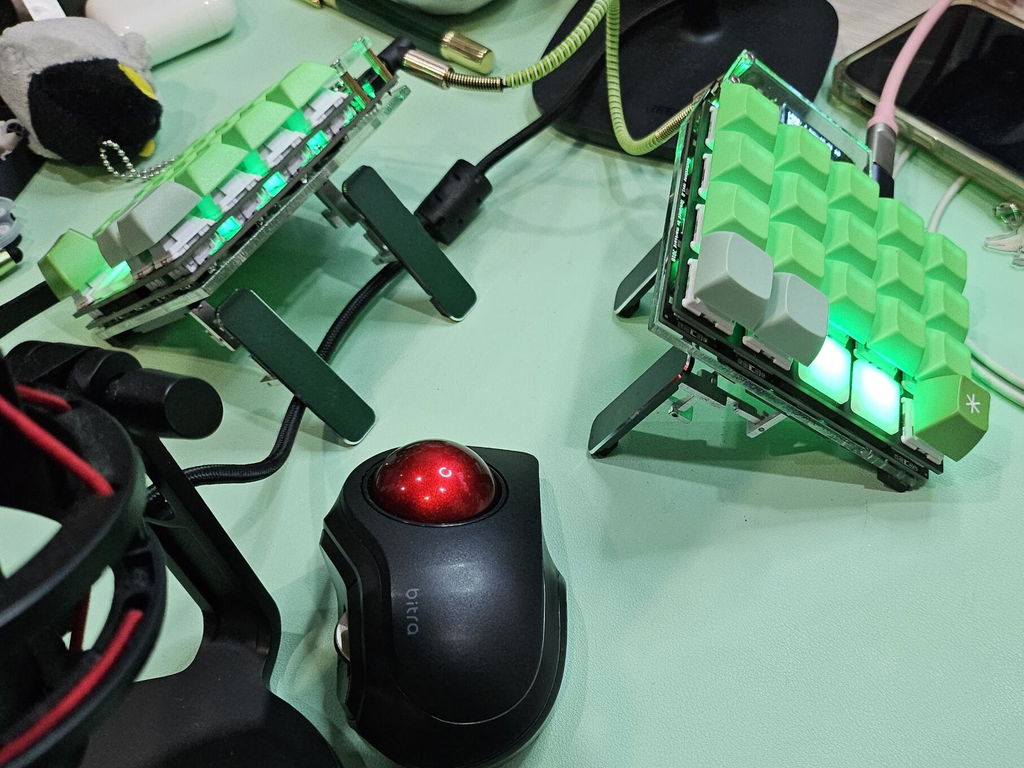

Once you've built the board, it's great! I made it work with VIAL so I don't have to reflash the firmware all the time and also so the board can be plugged in either side. Because it has the full 40 keys, you can play around with different setups. I was able to go from 40 to 36 keys and I can always add or remove keys quite easily. It's also very easy to mod. You can add 90 degree extenders, some phone stands on the bottom to tent the board, and cool keycaps.
