ErgoDash Keyboard Kit

ErgoDash Keyboard Kit

Regular price $82.00 CAD
Regular price Sale price $82.00 CAD
Sale Sold out
Tax included. Shipping calculated at checkout.
Diodes
×

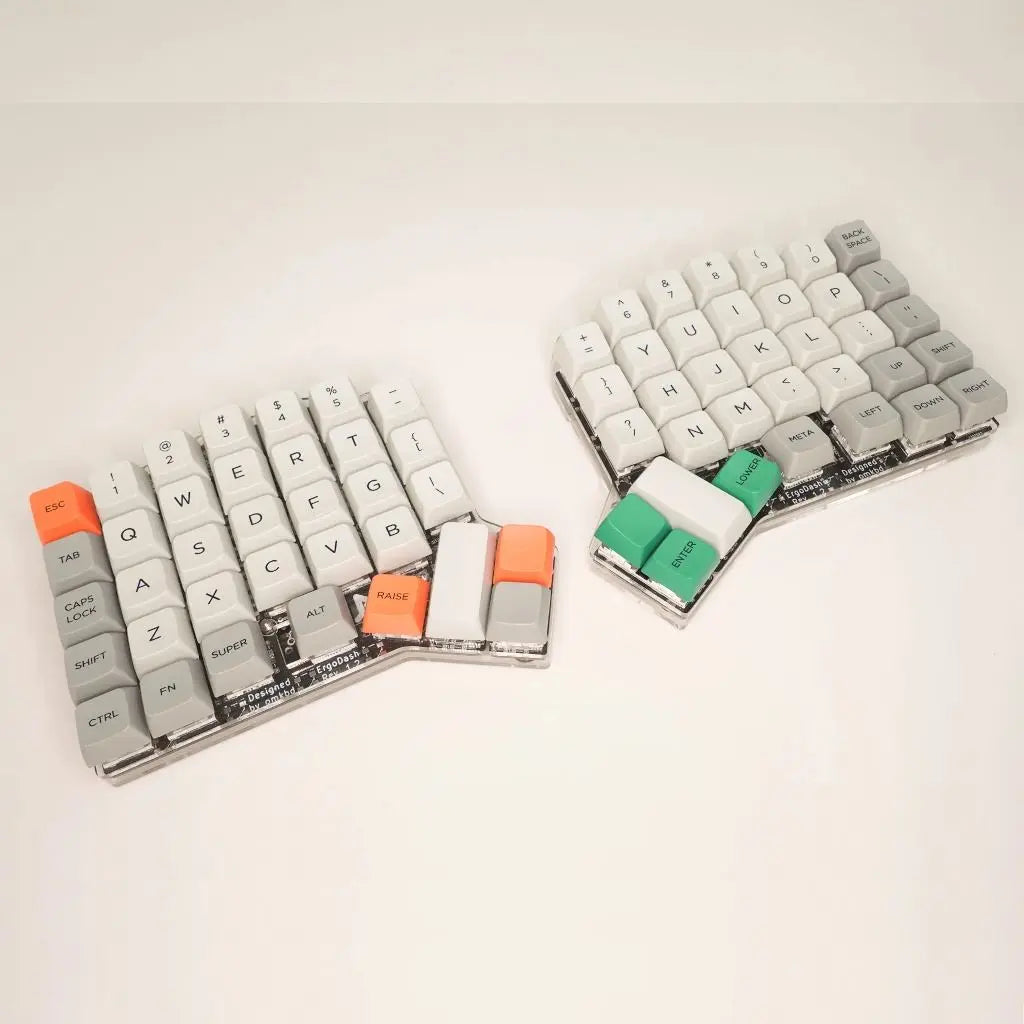

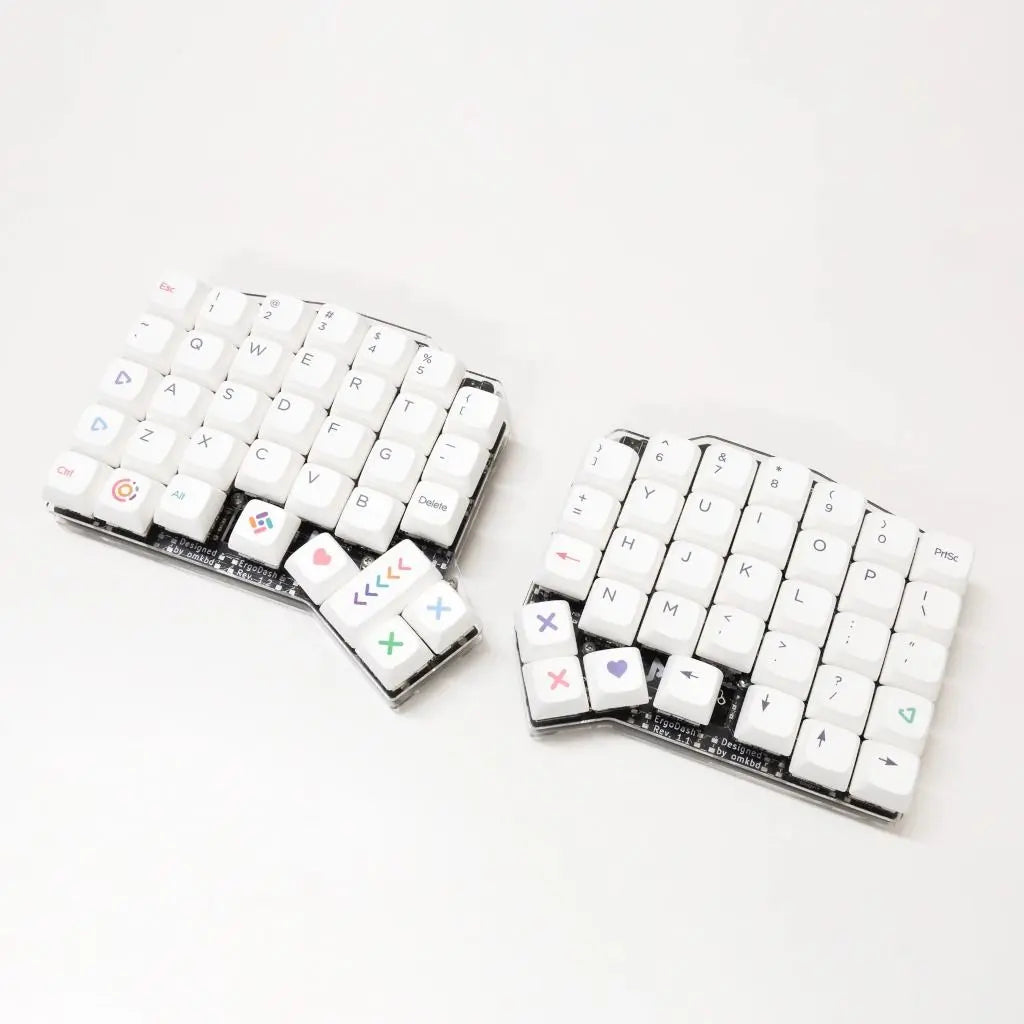

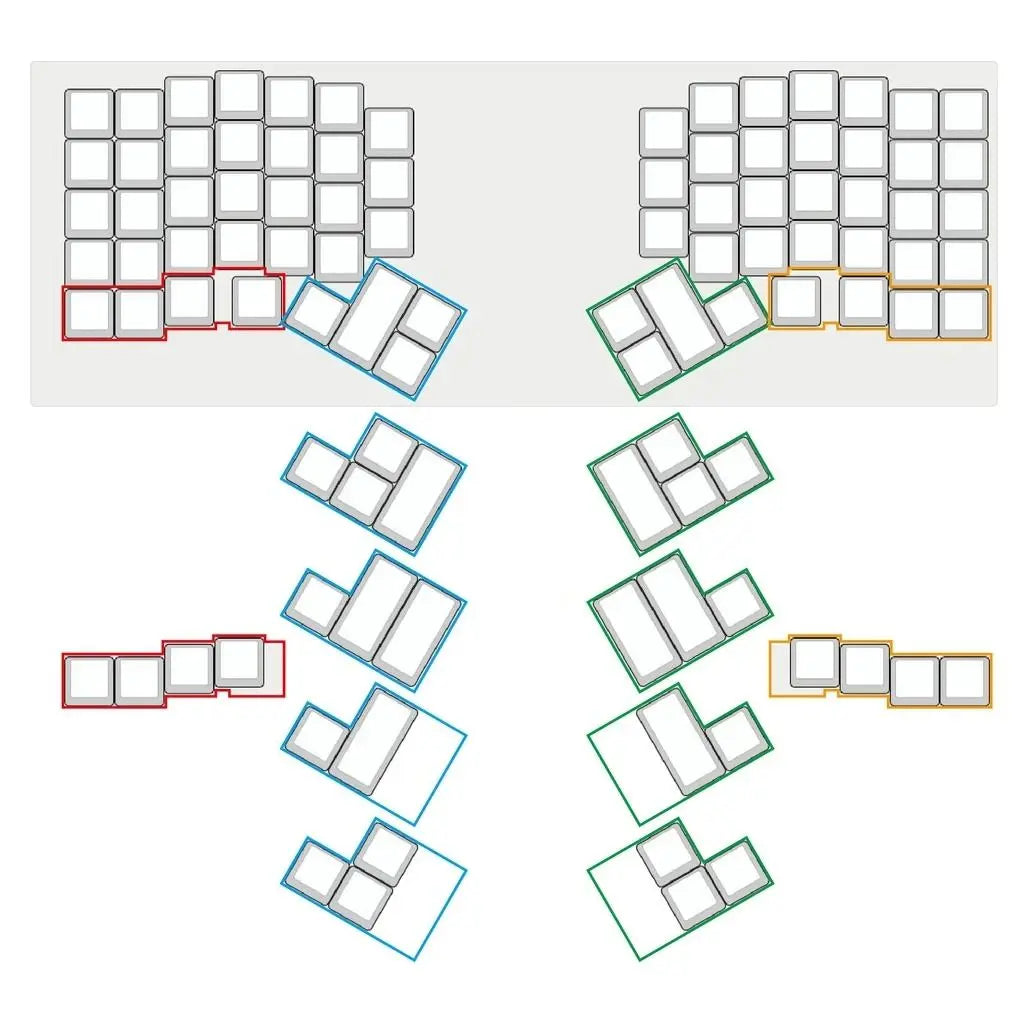

The Ergodash is a split, ergonomic mechanical keyboard packed with options and features like RGB and per switch LED, over a dozen layout options, Cherry/Alps switch compatibility, piezo speaker and breakouts for additional connections.

This keyboard runs QMK firmware found here.

Note: The kit pictures show Acrylic switch plates, these have now been upgraded to FR4 switch plates.

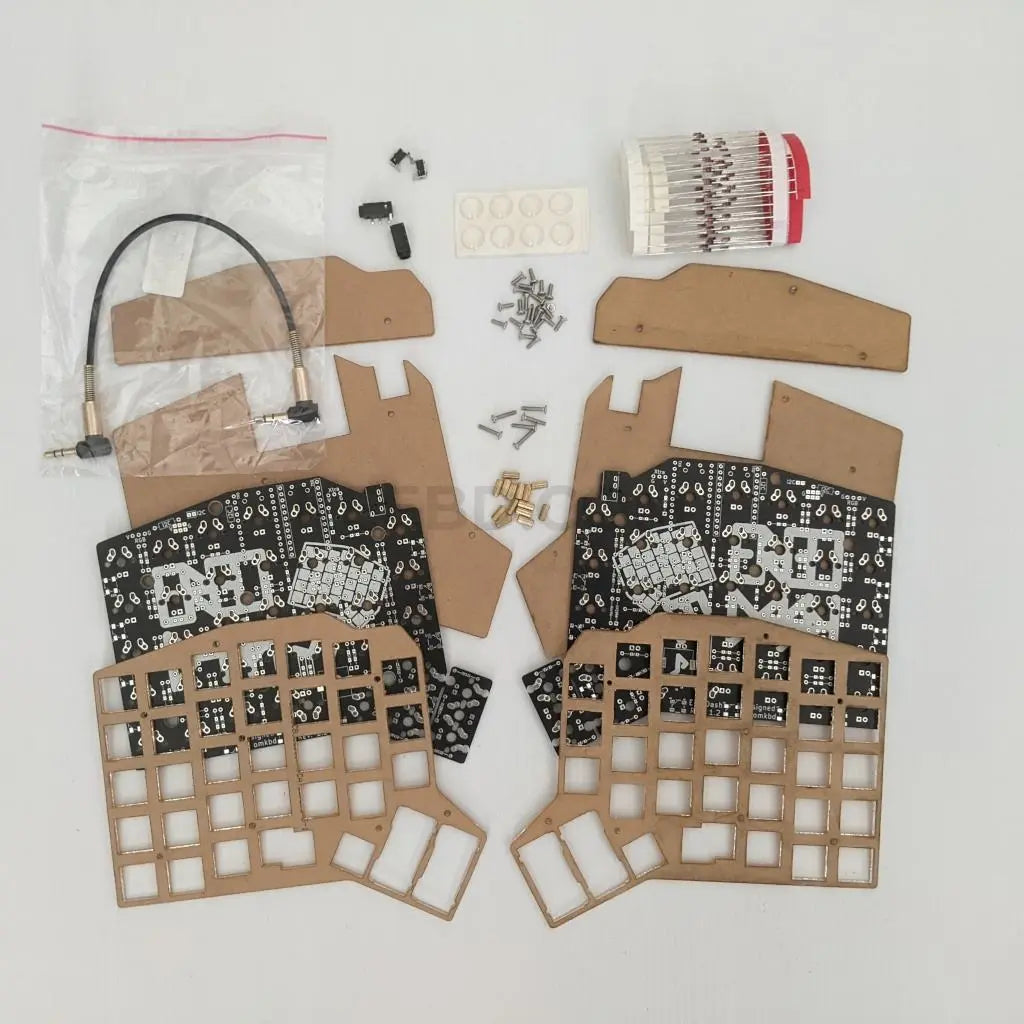

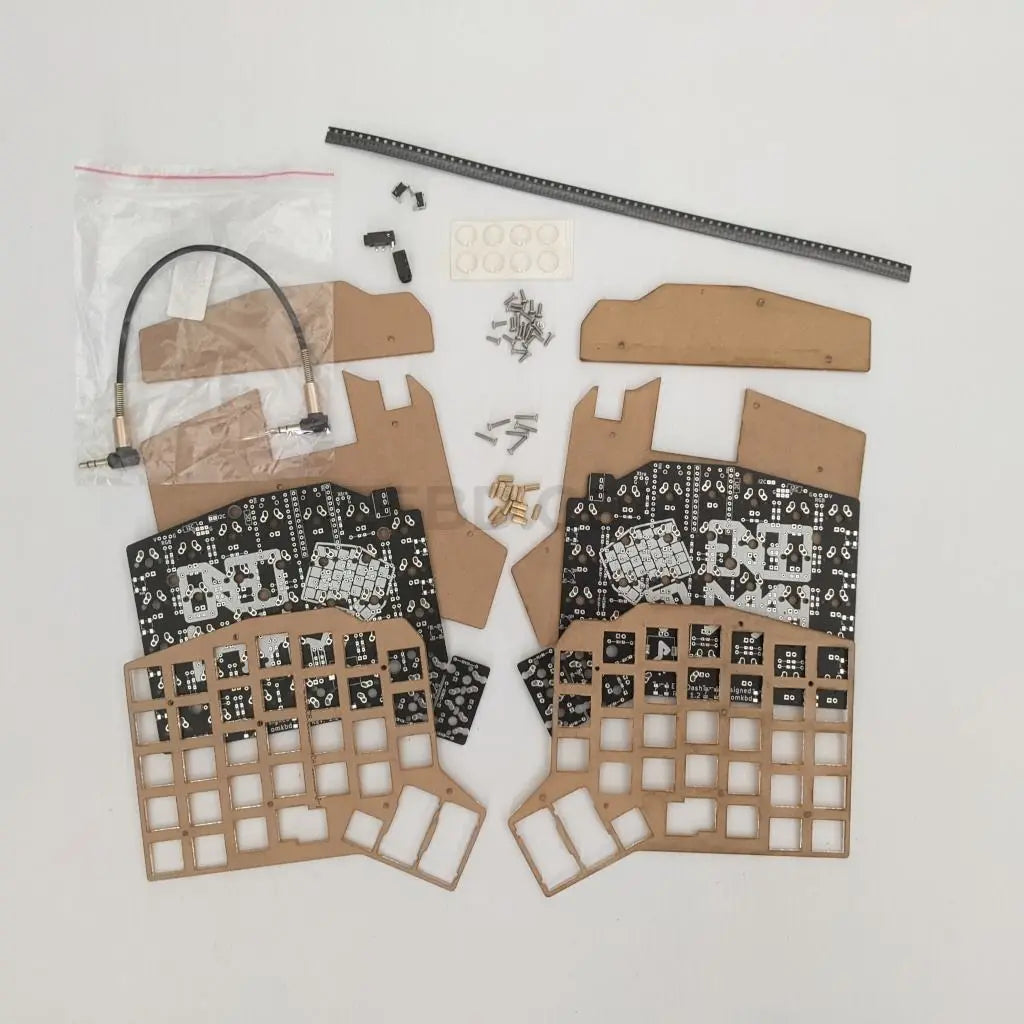

Kit Includes

2 x FR4 Switch Plates (Double Thumb)

2 x ErgoDash v1.2 PCBs

2 x Acrylic Bottom Plates (Double Thumb)

2 x Acrylic Foot Plates

70 x Diodes (Through Hole) or (SMD)

2 x TRRS Jacks

1 x TRRS Cable

2 x Tactile Switches

16 x 4mm Screws

10 x 6mm Screws

6 x 10mm Screws

16 x 7mm Brass Standoffs

8 x Clear Rubber Feet



Required to Complete

2 x Pro Micro Controllers (Comes with Headers to Direct Attach)

66-70 x MX Switches

66-70 x MX Keycaps



Optional Items

24 x WS2812B RGB LED

66-70 x 3mm LED

2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)

or

2 x 25 Pack Mill-Max Machined Pins

1 x ErgoDash Acrylic Case Kit (Single Thumb)



Build Instructions

ErgoDash Build Guide



This keyboard is designed by omkbd.

View full details

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Jakari Stratton
The keyboard is great but shipped with TRS cable

I had a great experience building the keyboard but to connect the two halves, a TRRS cable is required, and the included cable was only a TRS cable. I live in the US, so it's a bit impractical to have a replacement shipped from Australia. In the future, please ensure that the proper cables are included or just inform the buyer that they will need to supply their own.
