Basketweave Alice-style Keyboard Kit
Basketweave Alice-style Keyboard Kit
Regular price
€93,95 EUR
Regular price
Sale price
€93,95 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
×
Stock notification
Get an email when this product is back in stock.
Basketweave Alice-style Keyboard Kit
We respect your privacy and don't share your email with anybody.
...

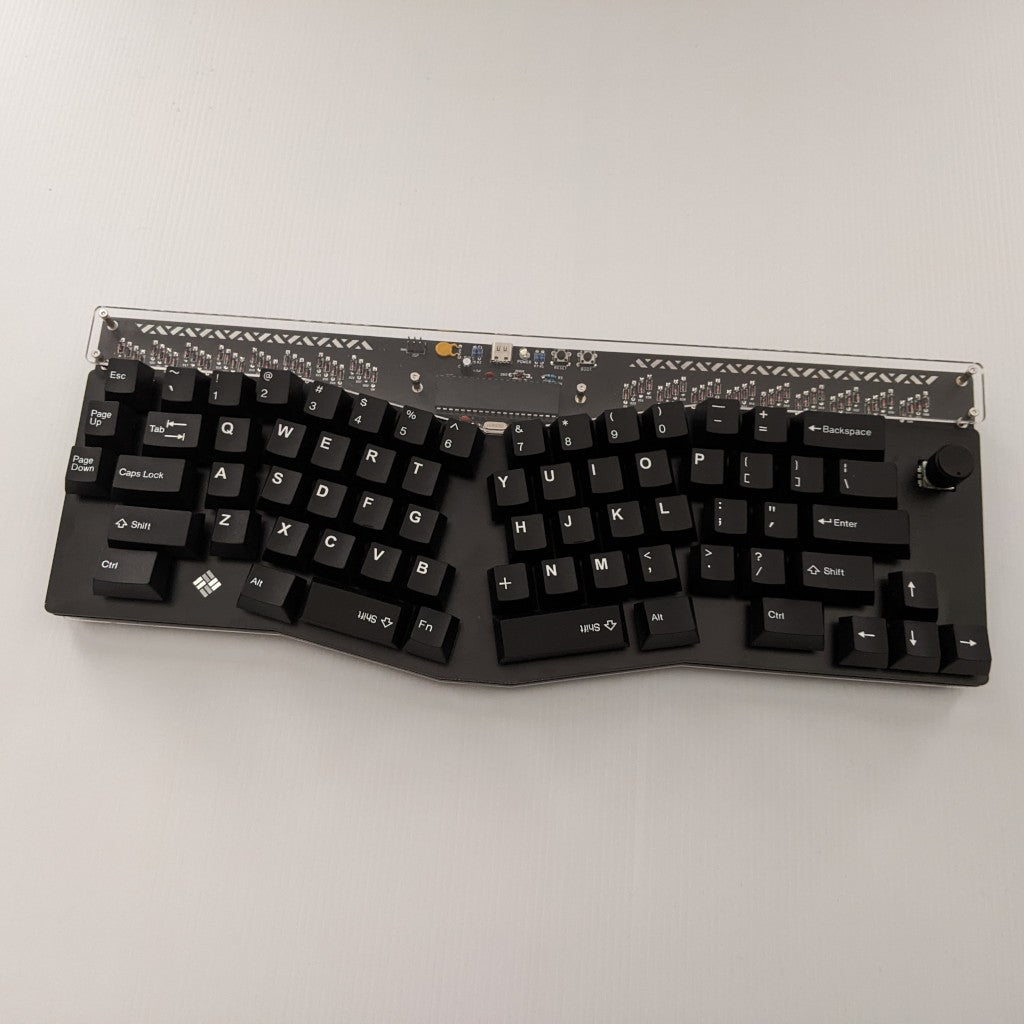

The Basketweave is a through-hole Alice-style keyboard with arrow keys and a rotary encoder.
This keyboard runs QMK firmware found here. The ATmega32A-PU included in the kit comes flashed with bootloader and default firmware.
Kit Includes
1 x Basketweave FR4 Switch Plate
1 x Basketweave PCB
1 x Acrylic Bottom Plate
1 x Acrylic Component Cover
69 x 1N4148 Diodes (Through Hole)
2 x 22pF Capacitors
2 x 0.1uF Capacitors
1 x 4.7uF Capacitor
2 x 3.6V Zener Diodes
1 x 500mA Resettable Polyfuse
1 x USB-C Port
1 x 2x3 ISP Header
1 x 3mm Red LED
2 x 1.5k Resistors
2 x 5.1k Resistors
2 x 75R Resistors
1 x 10k Resistor
1 x ATmega32A-PU
1 x 40 pin IC Socket
2 x 6mm Tactile Switches
1 x 16MHz Crystal
1 x EC11 Rotary Encoder
11 x 7mm Brass Standoffs
6 x 10mm+3mm Brass Standoffs
14 x 6mm Screws
8 x 4mm Screws
4 x Rubber Feet
Required to Complete
69 x MX Switches
69 x MX Keycaps
1 x Encoder Knob
Optional Items
Build Instructions
This keyboard is designed by null-ll.
