Svlinky VIK Controller
We respect your privacy and don't share your email with anybody.
...
Couldn't load pickup availability

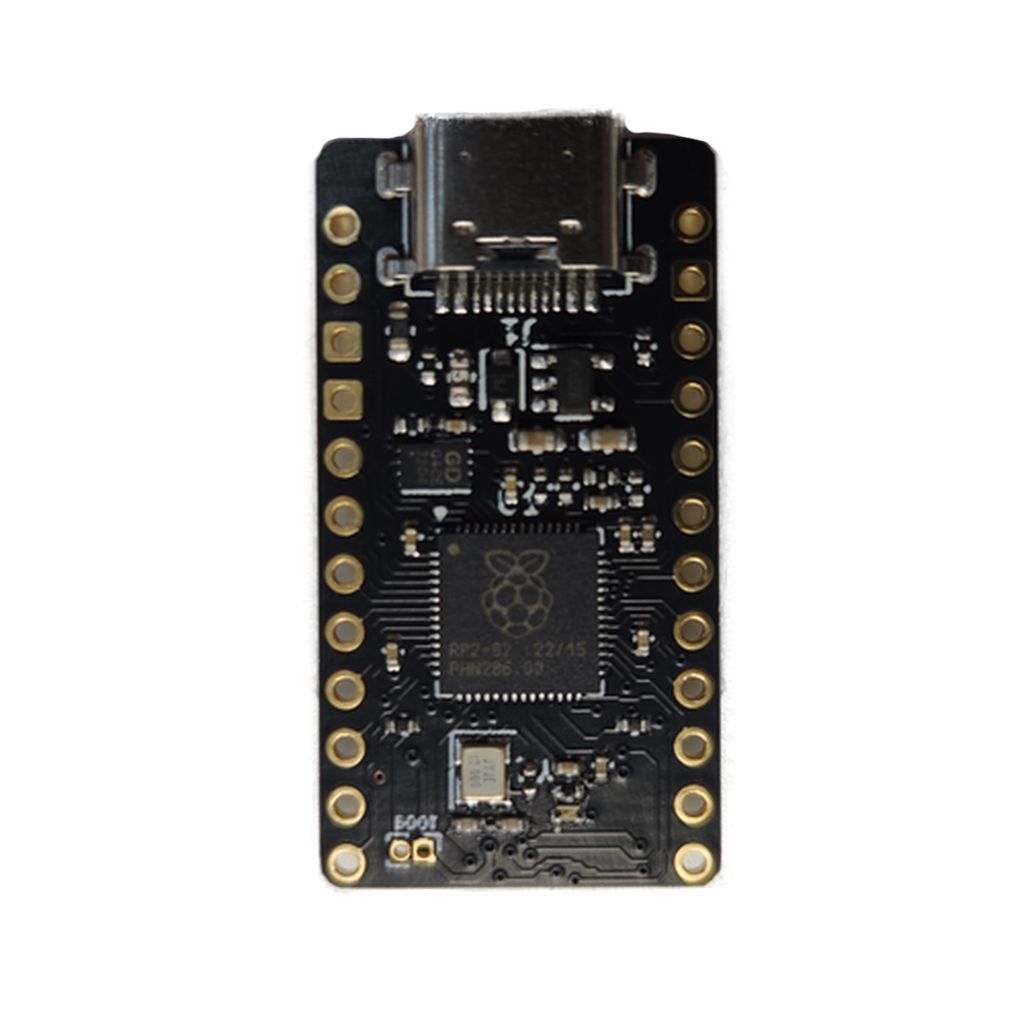

Pro Micro footprint with USB-C, RP2040, and a VIK connector. Designed for use in custom mechanical (split) keyboards, but many other uses are possible.
What is VIK? If you don't know already, it's an interface that allows you to connect a keyboard pcb to a keyboard module. Modules can be a trackball sensor pcb, a display, a scroll ring encoder, or whatever the community decides to come up with.
Version
v0.2 - The pinout changed in order to accommodate VIK analog pin specification.
Features
What is VIK? If you don't know already, it's an interface that allows you to connect a keyboard pcb to a keyboard module. Modules can be a trackball sensor pcb, a display, a scroll ring encoder, or whatever the community decides to come up with.
Version
v0.2 - The pinout changed in order to accommodate VIK analog pin specification.
Features

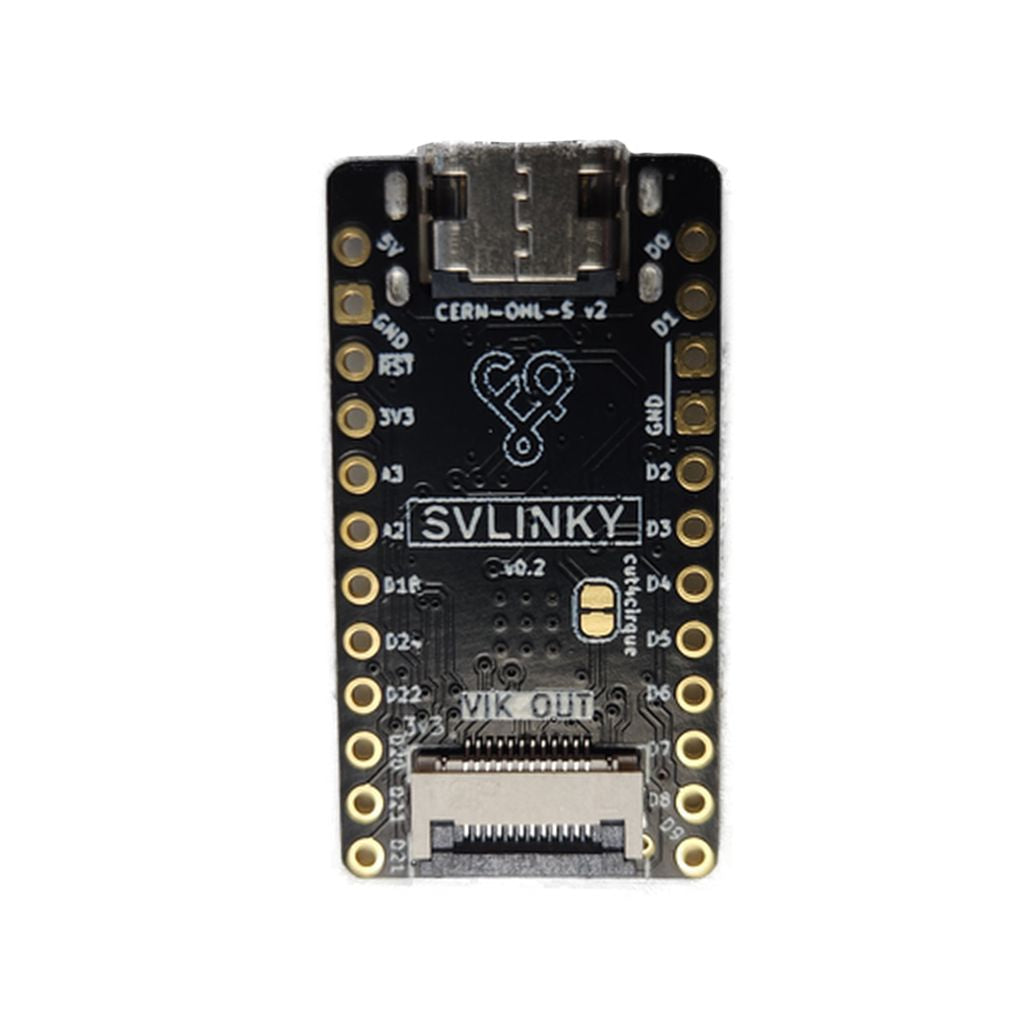

- Pro-micro / Sparkfun RP2040 compatible footprint, with VIK connector on the bottom
- Raspberry Pi RP2040 MCU
- 8Mbit flash memory
- USB VBUS detect
- Low profile USB-C mid-mount connector
Programming
Getting started with the svlinky? View the firmware source here
In order to put the board in bootloader mode, quickly short the RESET and ground pins (marked R and GND) while shorting the two through holes on the bottom half of the controller on the top side.
Dimensions
33.7mm (H) x 18mm (W) x 3.2mm (H)
Includes
Includes
1 x Svlinky VIK Controller
This controller is designed by plut0nium and modified by sadekbaroudi
