Model H USB Controller Upgrade (IBM Model M)

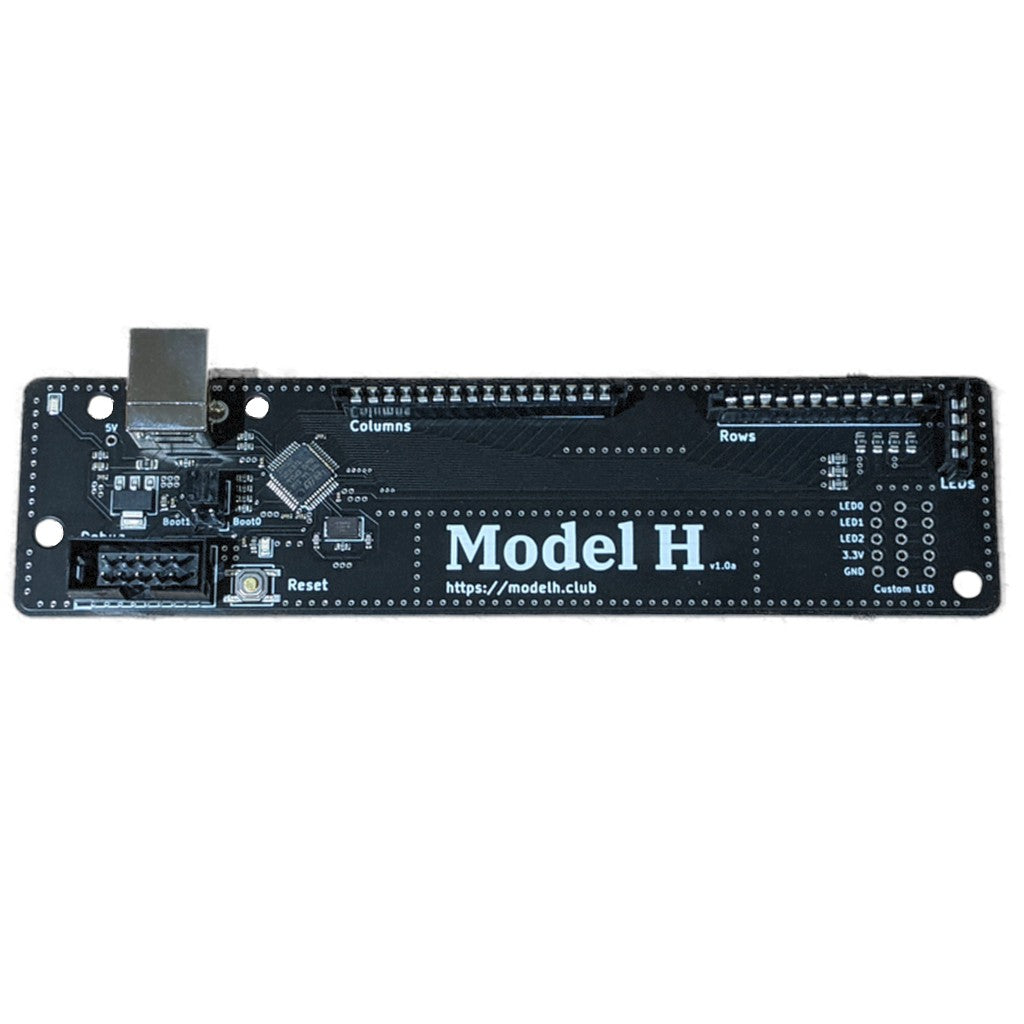

This conversion kit allows you to replace your IBM Model M's original internal controller board with a modern USB board. This aims to match the footprint of the original controller and plugs into the original keyboard matrix, but exposes a USB port through the original SDL connector.

Thanks to QMK, the keyboard is fully programmable. It ships with a DFU-style bootloader, which can be programmed over USB.

Features

• Non-destructive upgrade - just swap the boards
• Native USB (with type B connector), no adapter required
• Doesn't require original controller

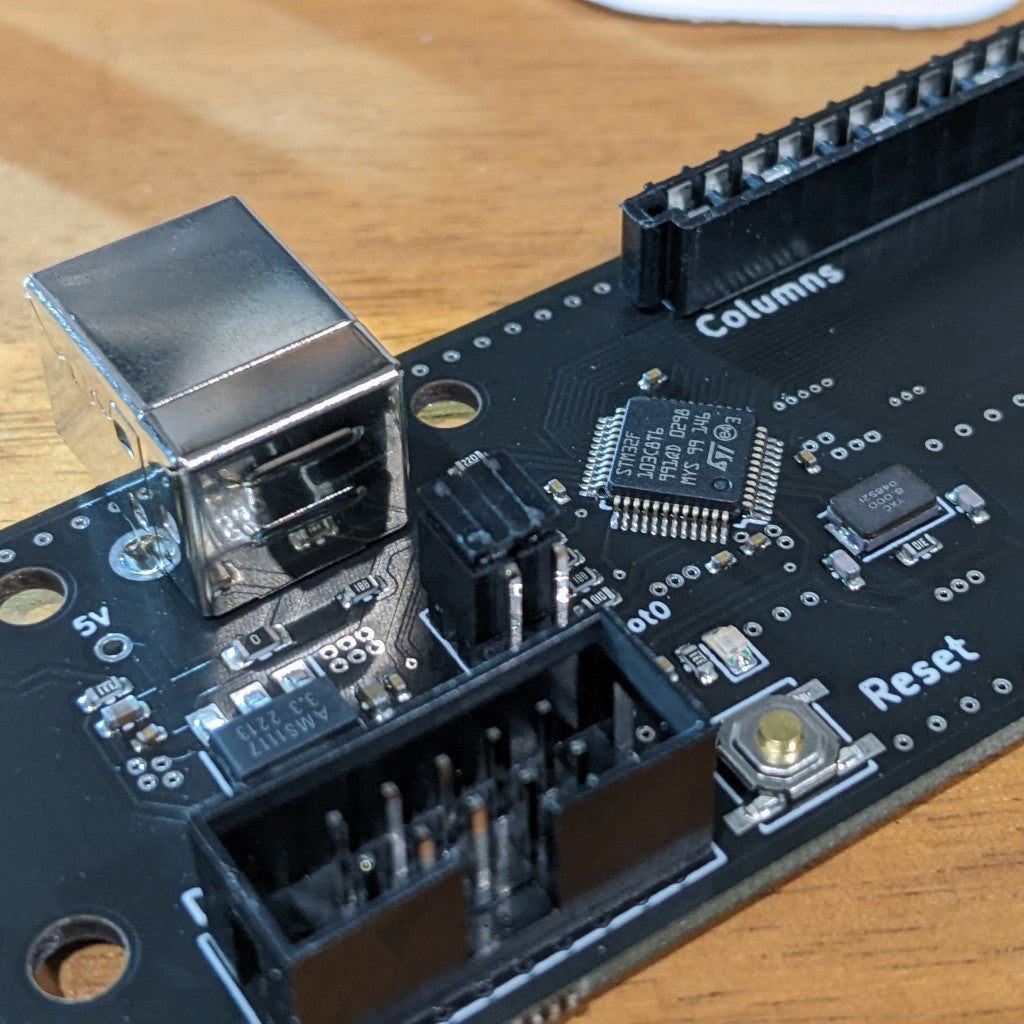

• STM32 ARM Processor @ 72MHz with 64kb flash
• Remappable keys (using QMK configurator)
• Uses open source QMK firmware
• Lower power (50 mA typical)
• Genuine "TE Connectivity Trio-mate" connectors, as used on the original Model M

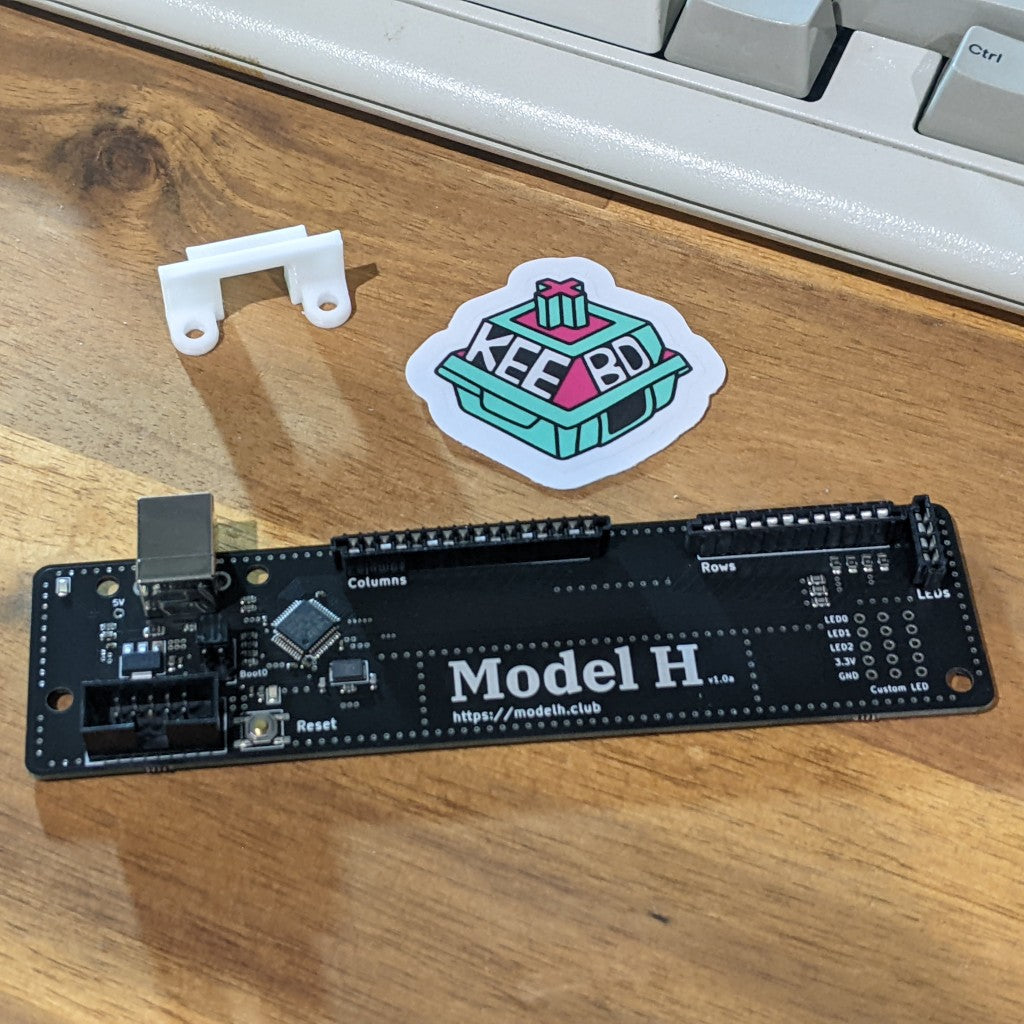

Includes

1 x Model H USB Controller Board (Programmed and ready)

1 x 3D Printed Replacement USB Case Cover

1 x KEEBD Die Cut Sticker

Compatibility

Model H comes in two variants to match different internal connectors.

This upgrade controller supports both variants.

Created by John Hawthorn
