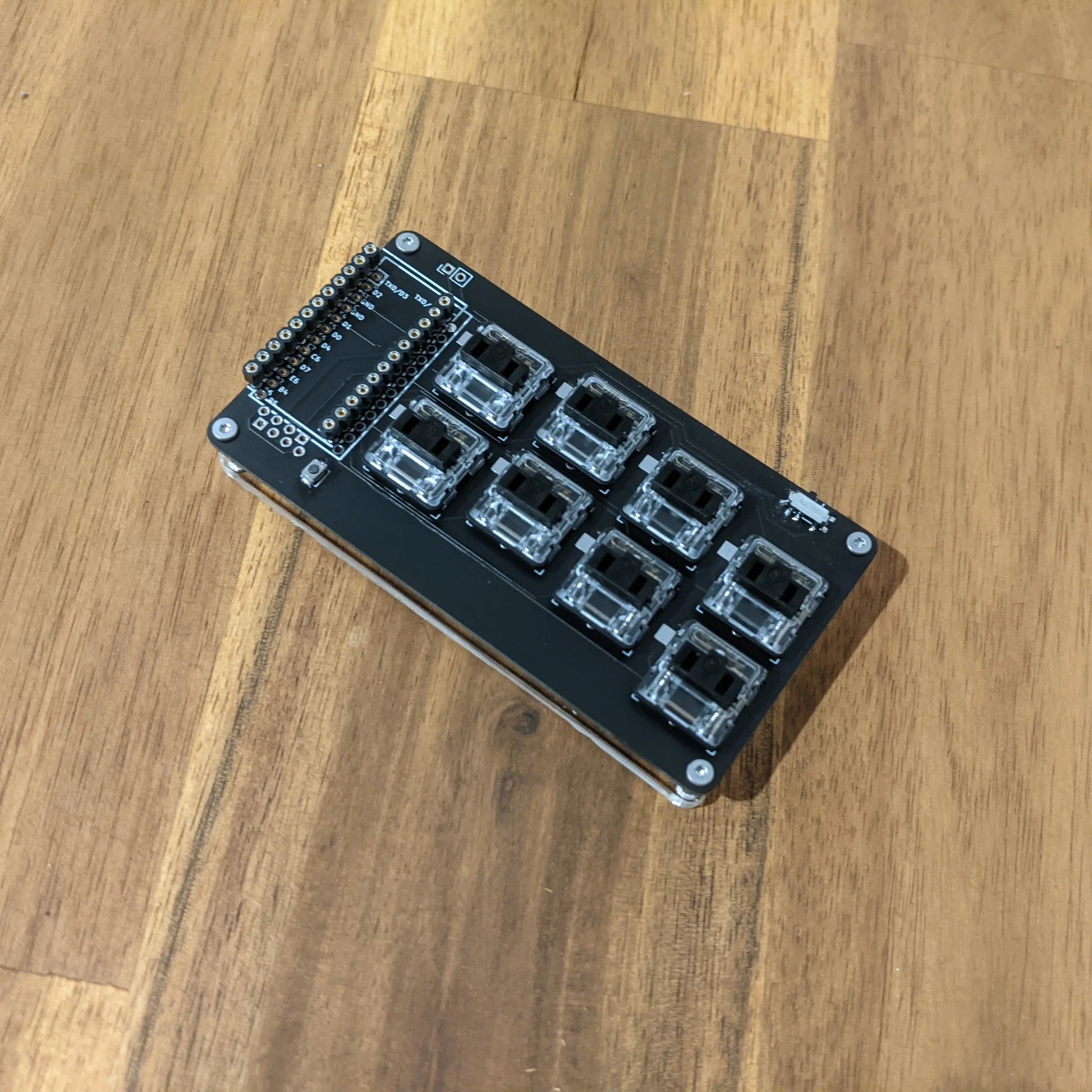

Paintbrush Keyboard Kit

Paintbrush Keyboard Kit

Regular price £11.00 GBP
Regular price £0.00 GBP Sale price £11.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Style
×
This keyboard design is adaptable and flexible. Especially for those with disabilities, those who cannot type on traditional keyboards and those that prefer not use traditional keyboards. The Paintbrush is reversible so can be built for either left/right hand use.
The Paintbrush is meant to be used with systems like ARTSEY.IO.

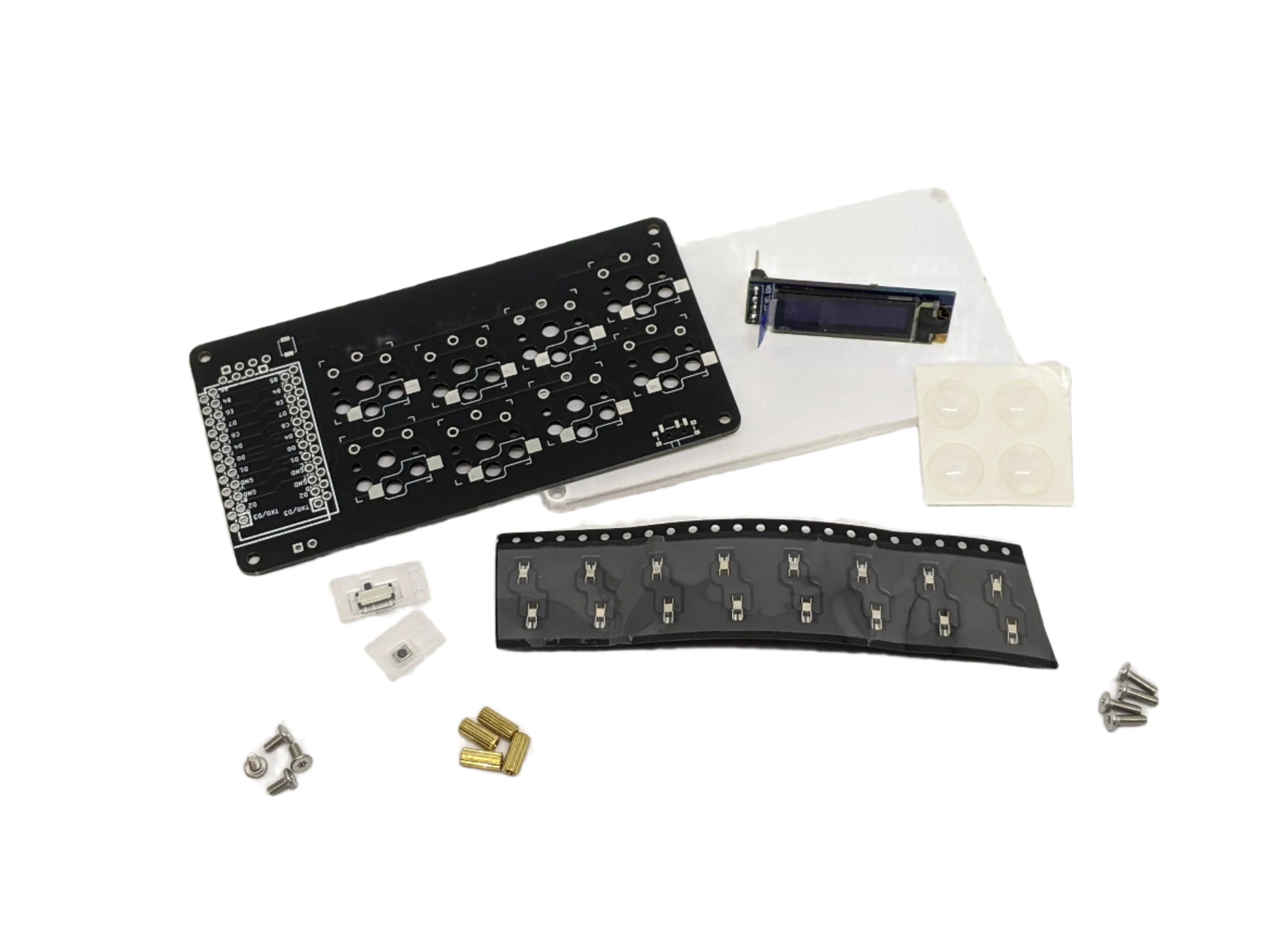

Kit Includes
1 x Paintbrush v5 PCB
1 x Paintbrush Switch Plate (MX Profile)
1 x Acrylic Bottom Plate

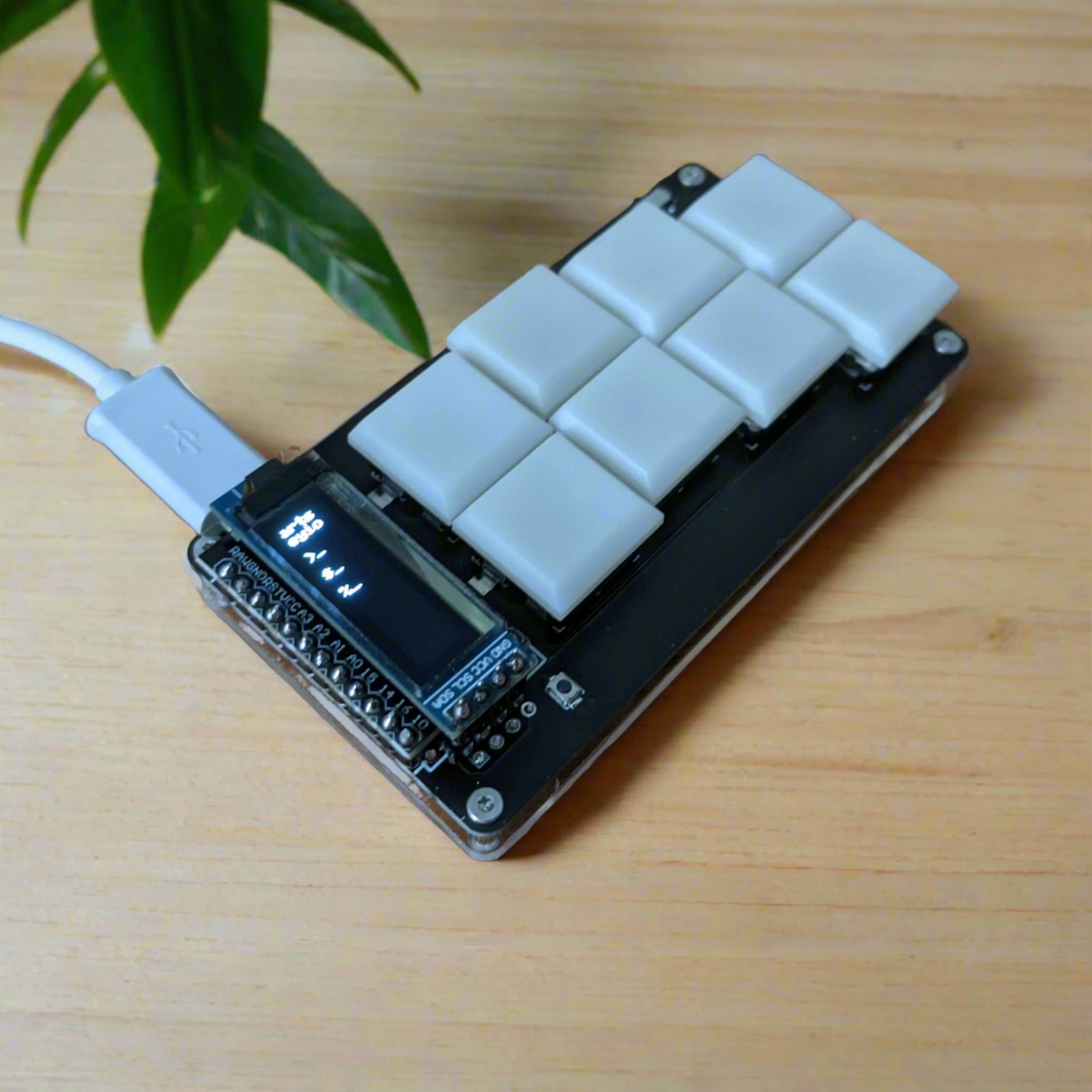

1 x OLED Display
1 x Slide Power Switch
1 x Tactile Reset Switch
8 x Hot Swap Sockets
4 x 7mm Brass Standoffs
4 x 4mm Screws
4 x 6mm Screws
4 x Rubber Feet
Required to Complete
1 x Pro Micro Controllers (Comes with Headers to Direct Attach)
or
Optional Items
1 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)
or
Build Instructions
View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Antonio
Fun little build

First time properly building a keyboard, can definitely it was a lot of fun.
The build guide is pretty minimal - so it took me a bit to figure out how to solder the hotswap sockets (since I've never used them before), but I eventually figured it out. I do wish an extra socket was included, since they're pretty fragile and I accidentally broke one [but was able to just solder the switch directly].

I went with a SuperMini nRF52840 (from a different vendor) and the flashing was pretty straightforward - I just downloaded a .uf2 file from the zmk-ardux repository, pressed reset twice on the board and simply dragged the .uf2 file to the newly mounted drive. Ended up also porting the new ARTSEY layout as well. I do also want to mention that if you want add a battery, make sure it is small enough to fit between the PCB and the plate - but also consider that the hotswap sockets will take up 1-2mm of the free space (vertically).

Would recommend!

T
Terry Foust
Fun build!

Built two. Used sockets on the second one which works out much better. Can someone tell me where to get the firmware? All the references I've found have cryptic information that means nothing to me. I need simple and plain language instructions, please.

T
Thibaud
Matches the description

The build guide is definitely short and gives only the very minimal information. Assembling the kit and soldering everything together is not hard, but finding out how to flash the right firmware is a bit more tricky if like me you are not familiar with GitHub and coding in general...
Apart from that the product matches the description and it works. I can note however that the base plate came with burnt marks which won't go away. (Just esthetic but still...)

Thanks for the excellent review Thibaud. The bottom plate you mentioned has white protective plastic on the acrylic that can be removed by peeling it off.

Y
YuanShan
Insufficient information to build

The build guide section has no guide. On github the instructions are so short as to not answer most common questions you may have. Very difficult.

The build guide linked on the product page shows with pictures and clear steps on how the few components need to be installed. It is a very quick and easy build.The build guide can be found here https://github.com/keebd/thepaintbrush/tree/main/hardware/v5#build-instructions
