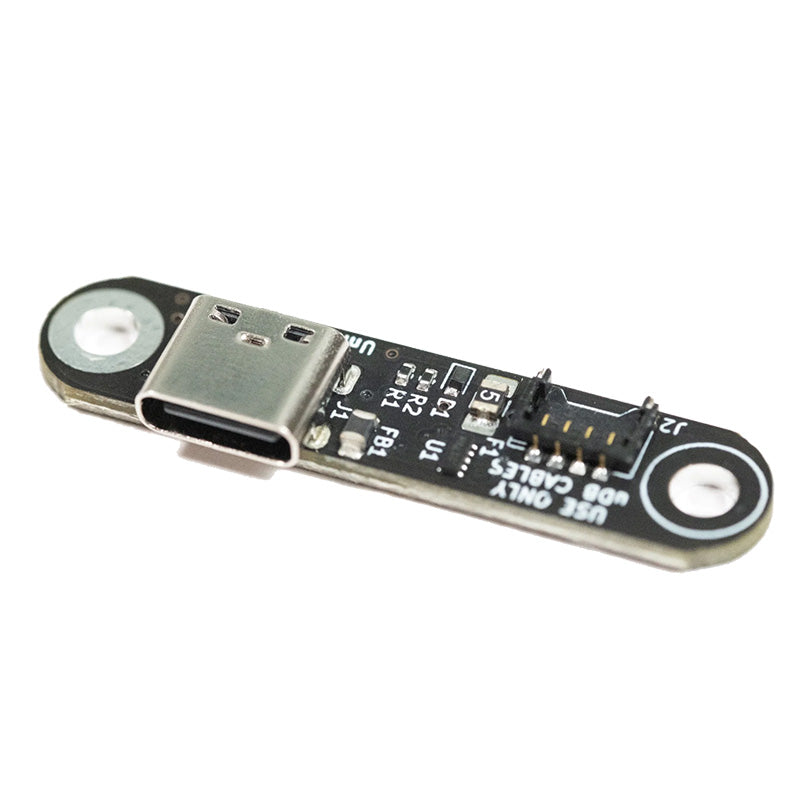

Unified S1 Daughterboard and Molex Pico-EZmate Cable

Unified S1 Daughterboard and Molex Pico-EZmate Cable

Regular price £8.00 GBP
Regular price £0.00 GBP Sale price £8.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
×
The Unified Daughterboard Project is an open source project designed to standardize the USB daughterboards used in custom keyboards, spearheaded by many community contributors such as ai03. The newest releases by the project team are the S1 and C4 daughterboards. Extra cables can be purchased here.
This new S1 revision has a slimmer form factor and a different internal cable connector compared to the preexisting C3 daughterboard series.
  • Slim form factor, allowing for a smaller footprint
  • ESD protection, overcurrent protection, overvoltage protection, shielding noise decoupling, and single-path grounding to the keyboard case
  • New durable Molex Pico-EZmate Connector that clips in vertically
  • 1:1 connector pinout, allowing for backwards compatibility

Features
  • Overall size: 40 x 9 mm
  • Screw holes: 33 mm apart
  • Connector: Molex Pico-EZmate (781710004)
  • PCB layers: 4 (7628 stackup)
  • Cable length: 170mm
  • Further specs and implementation details here

Includes
1 x Unified S1 Daughterboard
1 x 150mm Molex Pico-EZmate Cable
