dracuLad Keyboard Kit

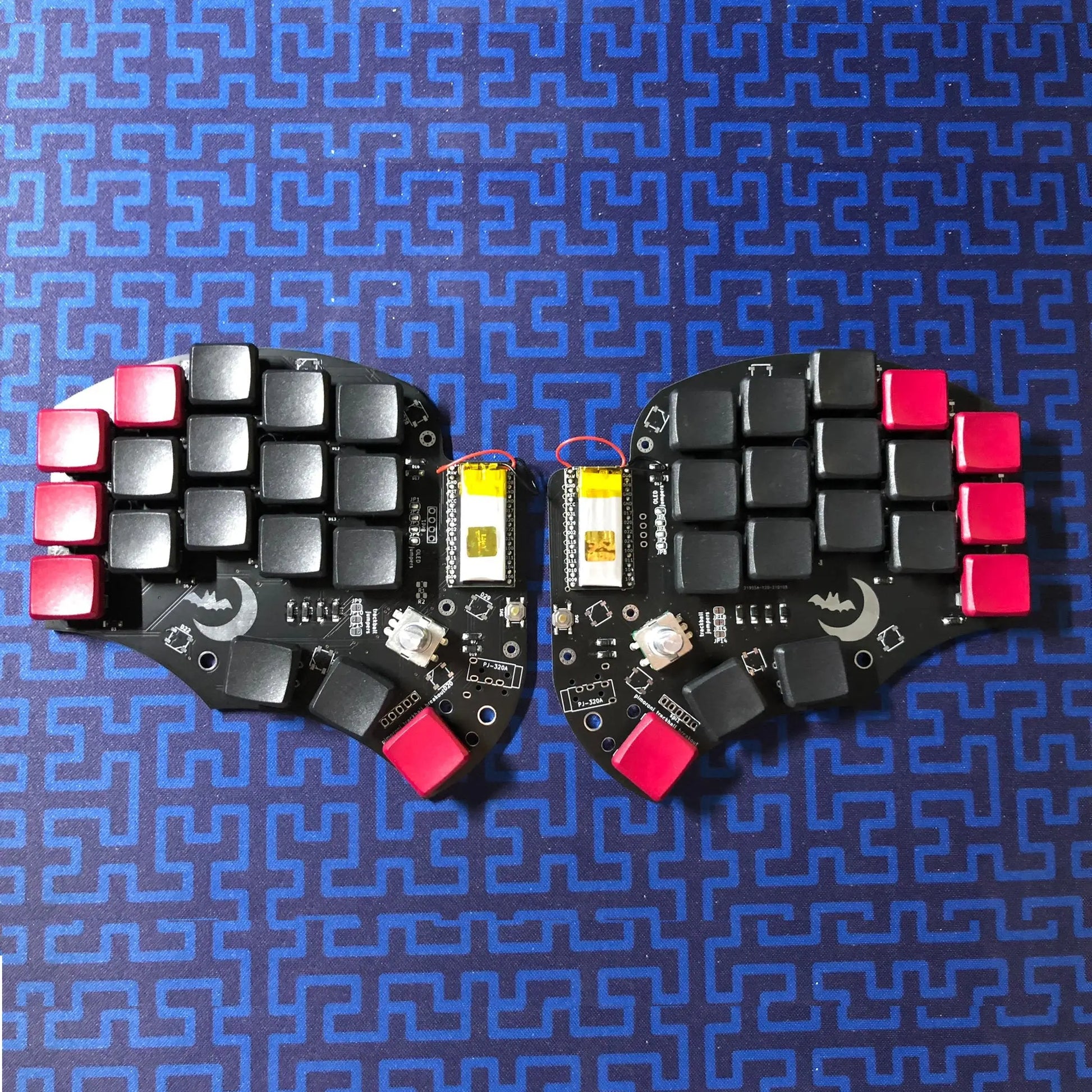

The dracuLad keyboard is a 34 to 36 key keyboard with encoder and built in pimoroni trackball support.
ZMK basic support is also possible and the firmware can be found here.

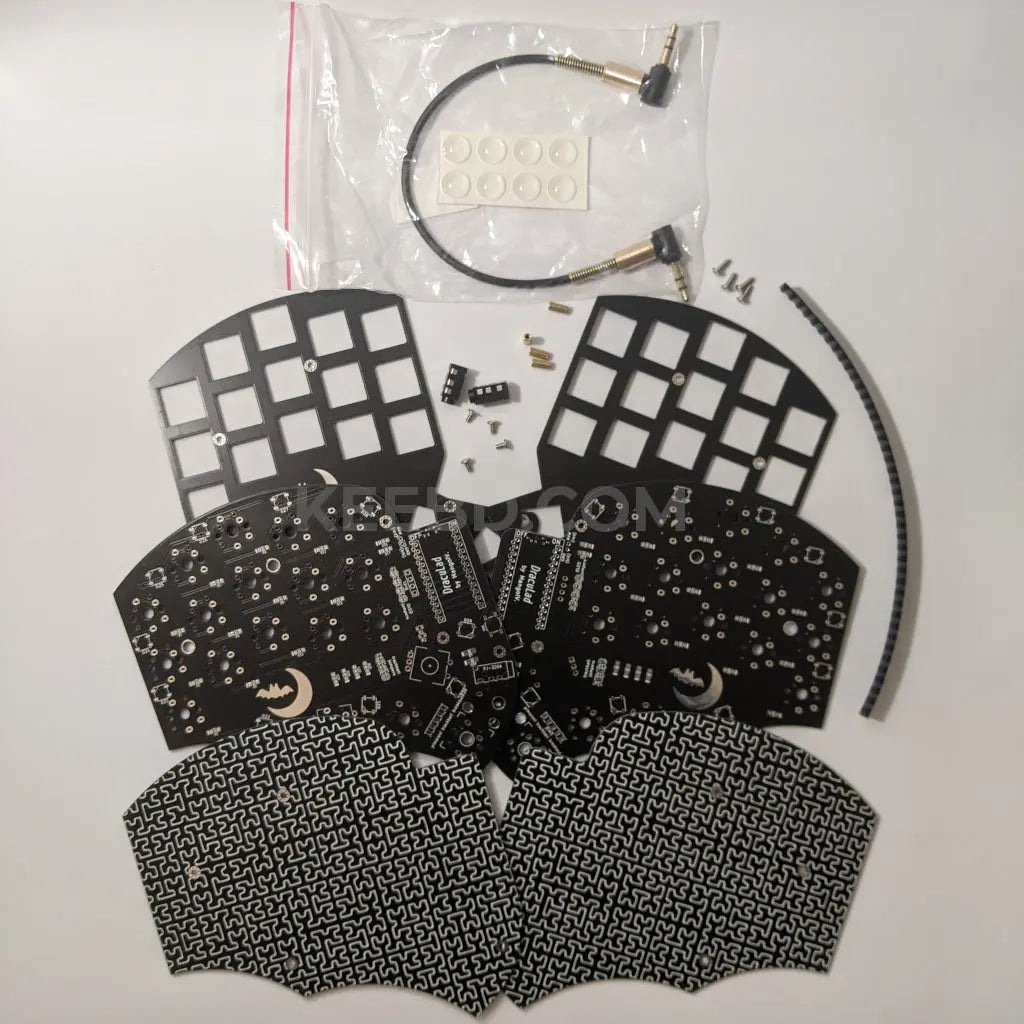

2 x FR4 Switch Plates
2 x dracuLad PCB Boards
2 x FR4 Bottom Plates
2 x Tactile Switches (SMD)
1 x TRS Cable
2 x TRRS Jacks
40 x Diodes (SMD)
8 x 7mm Brass Standoffs
16 x 4mm Screws
8 x Rubber Feet
Required to Complete
2 x Pro Micro Controllers (Comes with Headers to Direct Attach)
1 x dracuLad OLED Cover Kit (10mm if you are using machined headers and pins for your controllers + OLED displays. Shorter or longer depending on your setup)
2-4 x Encoders
2-4 x Encoder Knobs
2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)
2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)
20 x WS2812B RGB LED Rear Facing Drop Lights
This keyboard is designed by MangoIV.
