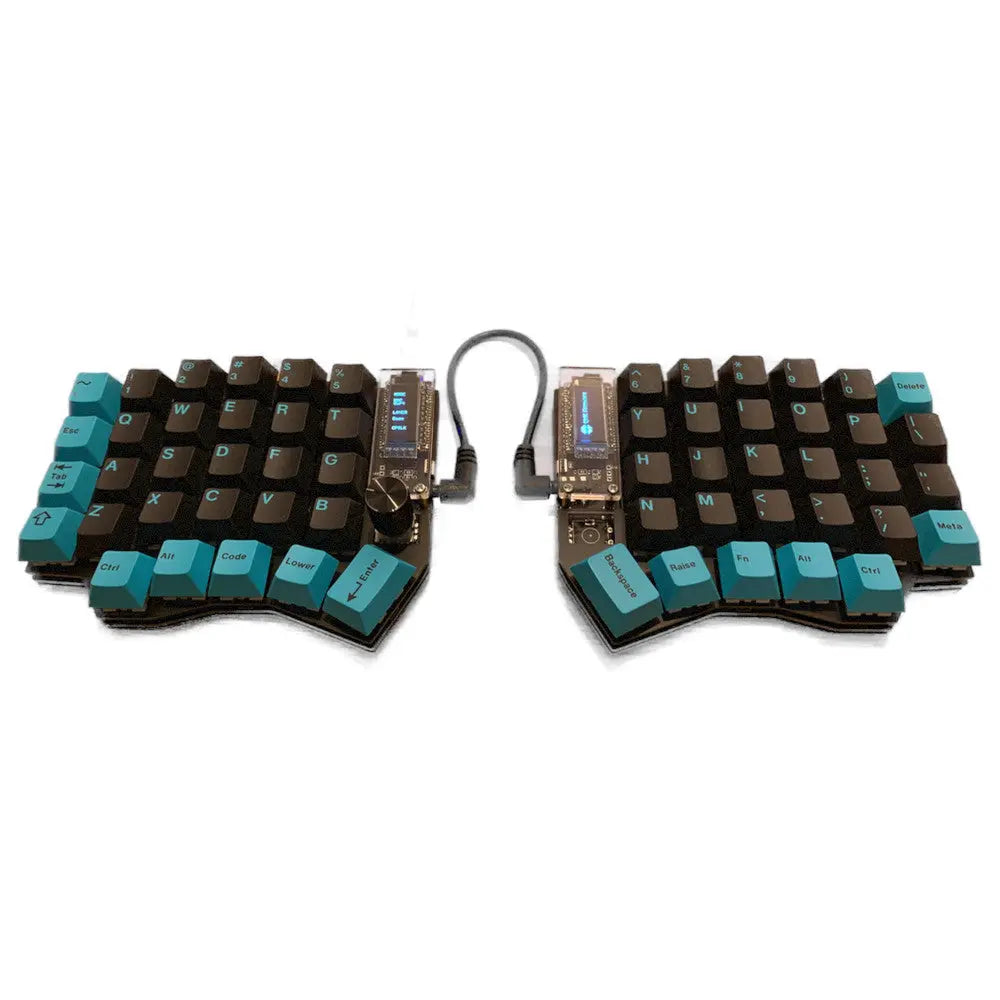

Sofle v1.1 Keyboard Kit

The Sofle keyboard is a 6×4+5 key column-staggered split ortho keyboard with encoder support. Based on Lily58, Corne, and Helix keyboards.

This keyboard runs QMK and is configurable with Via. The via firmware can be found here.

Kit Includes

2 x Switch Plates

2 x Sofle v1.1 PCBs

2 x Bottom Plates

2 x Acrylic OLED Covers

1 x TRS Cable

2 x TRRS Jacks

2 x 3x6 Tactile Switches

2 x OLED Displays

58 x Kailh Hotswap Sockets

60 x Diodes (SMD)

4 x 10mm Brass Standoffs

10 x 7mm Brass Standoffs

24 x 4mm Screws

4 x 6mm Screws

8 x Rubber Feet

Required to Complete

2 x Pro Micro Controllers (Comes with Headers to Direct Attach)

58 x MX Switches

58 x MX Keycaps

Optional Items

1-2 x Encoders

1-2 x Encoder Knobs

2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)

or

2 x 25 Pack Mill-Max Machined Pins

Build Instructions

Sofle v1.1 RGB Build Guide

This keyboard is designed by Josef Adamčík and more information can be found here.
