STeMCell Controller
STeMCell Controller
Regular price
$29.00 NZD
Regular price
$0.00 NZD
Sale price
$29.00 NZD
Unit price
per
Taxes included.
Shipping calculated at checkout.
×
Stock notification
Get an email when this product is back in stock.
STeMCell Controller
We respect your privacy and don't share your email with anybody.
...
Couldn't load pickup availability

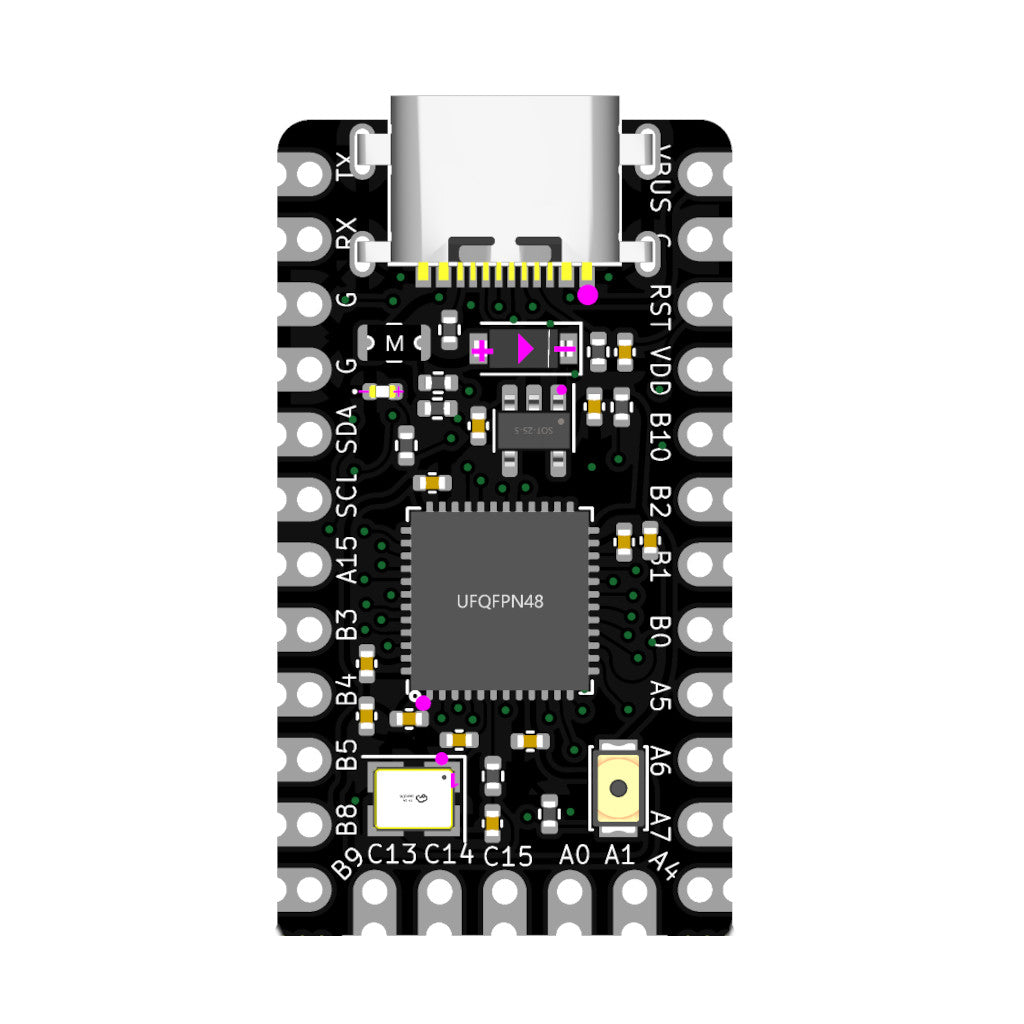

STM32 breakout in promicro footprint with USB-C connector. Designed for use in custom mechanical (split) keyboards, but many other uses are possible.
Features
- Version: 2.1.0
- Pro micro footprint
- STM32F4x1 series MCU
- Support half duplex USART communication in any of D0, D1, D2, D3 using jumpers
- Onboard switch to enable/disable USB DFU bootloader
- Inbuilt TX pullup for UART half duplex communication
- User LED on PA8
- Extra 5 pinout on bottom like Elite C
- Supports QMK and ZMK
Programming
You have a few options for putting the STeMcell into flashing mode
- Short RST and GND pins on the controller itself
- Double tap the physical reset switch on the keyboard pcb itself
- Use the QMK reset keycode
Dimensions
33.7mm (H) x 18mm (W) x 3.2mm (H)
Includes
1 x STeMCell STM32F411 USB Type C Controller
This controller is designed by megamind4089
