Kit de teclado Contra 40%
Kit de teclado Contra 40%
Notificación de stock
Reciba un correo electrónico cuando este producto vuelva a estar disponible.
Respetamos su privacidad y no compartimos su correo electrónico con nadie.
No se pudo cargar la disponibilidad de retiro

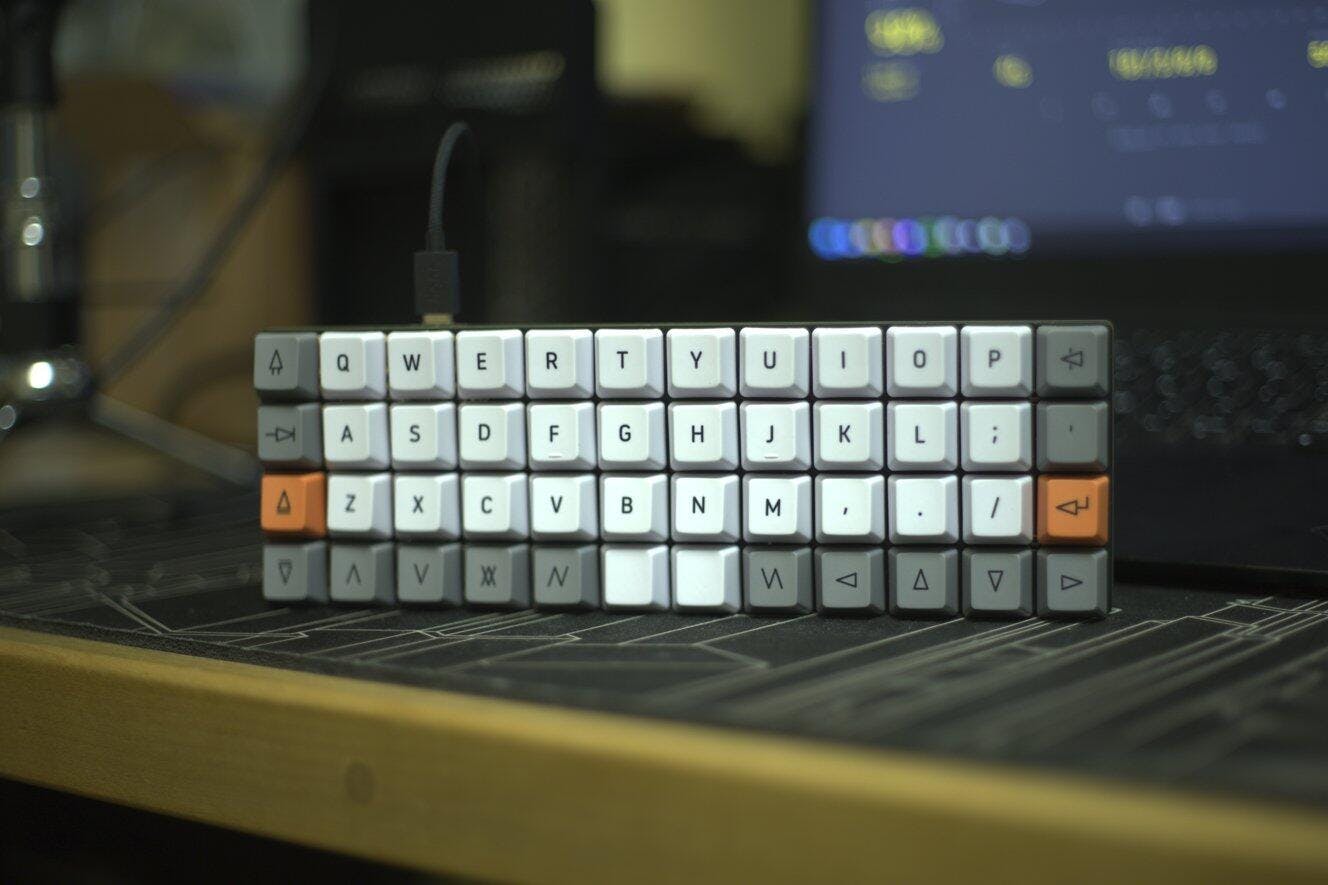

El Contra es un teclado 40% ortolineal en una cuadrícula de 48 teclas o 47 teclas con una barra espaciadora de 2 teclas soportada por un estabilizador de montaje en PCB 2u estilo Cherry.
Este teclado ejecuta QMK y el firmware se puede encontrar aquí .
El kit incluye
1 placa de interruptor FR4.
1 x contra PCB
1 x placa inferior acrílica
1 interruptor táctil 6x6
Separadores de latón de 5 x 9 mm
5 tornillos de 4 mm.
5 tornillos de 6 mm.
48 x diodos (agujero pasante)
4 x pies de goma
Requerido para completar
1 microcontrolador Pro (viene con cabezales para conexión directa)
47-48 x conmutadores MX (47 si desea una barra espaciadora de 2U)
47-48 x teclas MX (47 x 1u teclas, 1 x 2u teclas para barra espaciadora) o 48 x 1u teclas
1 estabilizador de montaje en PCB de 2u (para la barra espaciadora)
Elementos opcionales
NOTA: Debido al espacio limitado entre la PCB y la placa inferior. Para poder intercambiar/enchufar el controlador en caliente, recomendamos usar patas de diodo/resistencia como esta o el paquete de 25 pines mecanizados Mill-Max.
2 cabezales hembra rompibles mecanizados de 40 pines (permite el intercambio en caliente del controlador)
2 cabezales macho rompibles mecanizados de 40 pines (permite el intercambio en caliente del controlador)
Instrucciones de construcción
Este teclado está diseñado por AI03 .
Customer Reviews

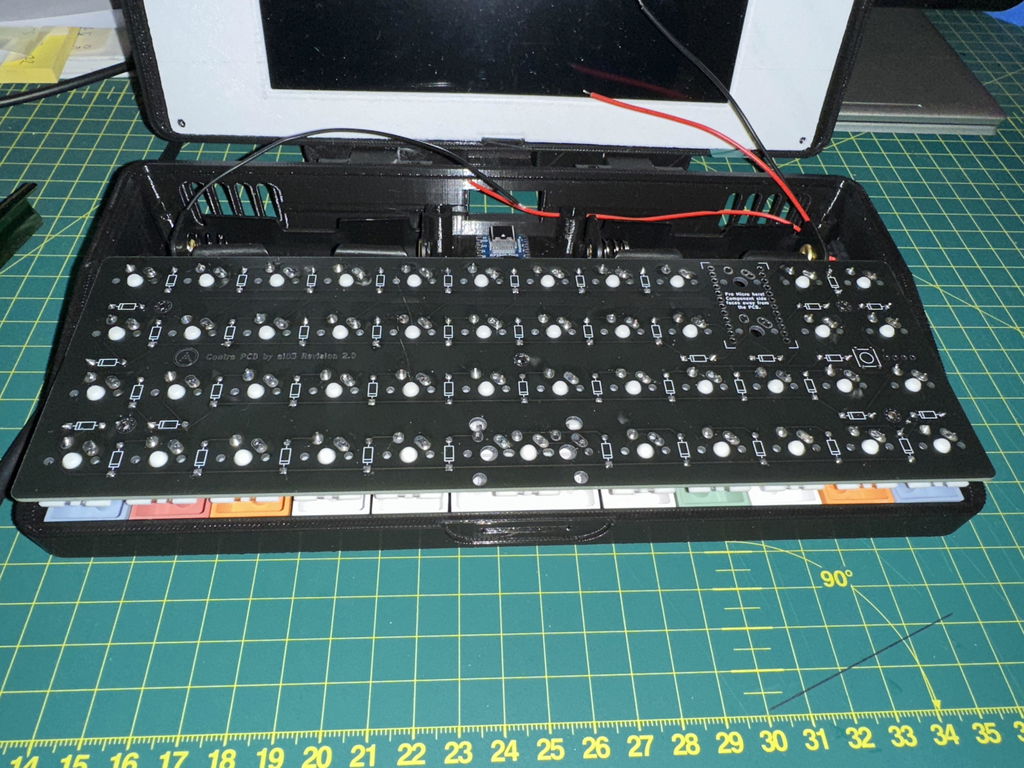

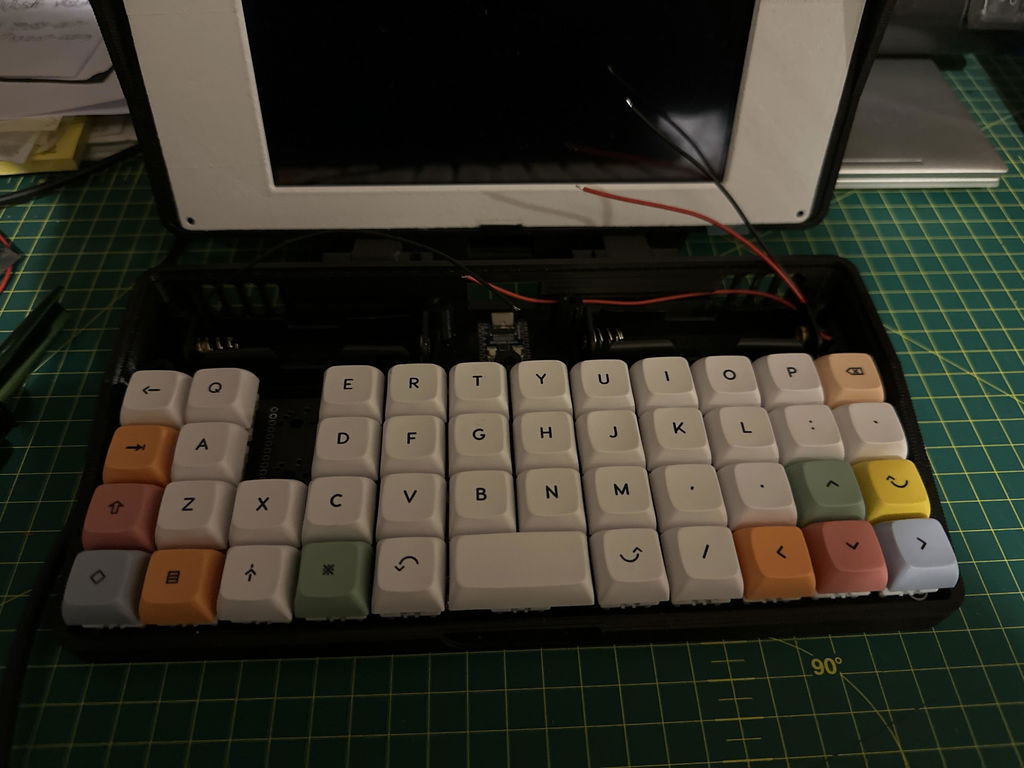

Quick delivery, quality Contra pcb kit arrived in about 9 days from ordering . Pleasantly surprised at how quickly it was delivered. Making Raspberry Pi Portable PI 80.
Had a lot of fun building the board, and I enjoy using it. One thing I'd like to say about the build experience is that my board did not come with the reset switch. I looked high and low through the packaging, but it was nowhere. Instead of having to go and order a single reset switch and wait a few days for shipping, I chose to take one off one of my other boards. A bit annoying, but I was okay. I feel a little too lazy to order a single switch for my other board now, and I just think it would've been nice if I had received one, like I was supposed to. All in all, it took a bit away from the build experience, but I still enjoyed it.
Hi James, thanks for adding your review and sorry to hear you couldnt find the reset button. Please contact support@keebd.com and we will happily send you a reset switch for your Contra keyboard.
Fantastic value and easy assembly. Just be aware: if you're using the Helios RP2040 microcontroller, check the pinout carefully before soldering. It has more pins than a Pro Micro so it is possible to misalign against the board headers if you're not paying attention!
I was little concerned ordering from this site seeing how there isn't many reviews. Throughout the site. However, came completely as advertised. They even shipped it out of the facility within the same day I ordered my kit. Very impressed by that. It does sit high and very flat when using the base board. Would recommend arm rest. I 3D printed a bottom plate to put mine on an angle and lower to the table.
Very minimalist kit which was easy to put together and inexpensive. Perfect for an electronics enthusiast who wants to try 40% without spending too much. The final height is a little high so I would recommend a wrist rest.
