El teclado Corne es un teclado dividido con teclas escalonadas de 3x6 columnas y 3 teclas para el pulgar, basado en Helix .
Este teclado ejecuta QMK y se puede configurar con Via . La vía del firmware se puede encontrar aquí .
El kit incluye
2 placas de interruptor FR4.
2 PCB de cereza Corne
2 x placas inferiores acrílicas
2 x cubiertas OLED acrílicas
1 cable TRS.
2 conectores TRRS
2 interruptores táctiles de 3x6
2 pantallas OLED
42 enchufes Kailh Hotswap
42 diodos (SMD)
Separadores de latón de 4 x 10 mm
Separadores de latón de 10 x 7 mm
Tornillos de 14x4mm
Tornillos de 14x6mm
8 x pies de goma
Requerido para completar
2 x Microcontroladores Pro (Viene con cabezales para conexión directa)
42 teclas MX (40 x 1u, 2 x 1,5u)
Elementos opcionales
42 luces LED SK6812mini-E por tecla
12 luces LED WS2812B orientadas hacia atrás
2 cabezales hembra rompibles mecanizados de 40 pines (permite el intercambio en caliente del controlador)
Conector macho rompible mecanizado de 2 x 40 pines (permite intercambio en caliente)
o
Paquete de 2 x 25 pasadores mecanizados Mill-Max
Instrucciones de construcción
Guía de construcción de Corne Cherry v3 RGB
Este teclado está diseñado por Foostan .
Customer Reviews
Kit came with everything required for easy assembly.
This was my first ever build and this kit was a great starting point. Everything came packaged well and separated logically. It made it easy to find what I needed as I needed it. The clear acrylic plates and PCB are well made. 10/10 would order again. Thank you!
Everything arrived in good condition and was well-packed. I faced some challenges during assembly and reached out to their Discord for assistance. They responded quickly, provided accurate guidance, and helped me resolve the issues. Don't mind the two USB-C cables. It was my first build, and I didn't know that nice!nanos do not support TRRS, but still, everything turned out to be working.

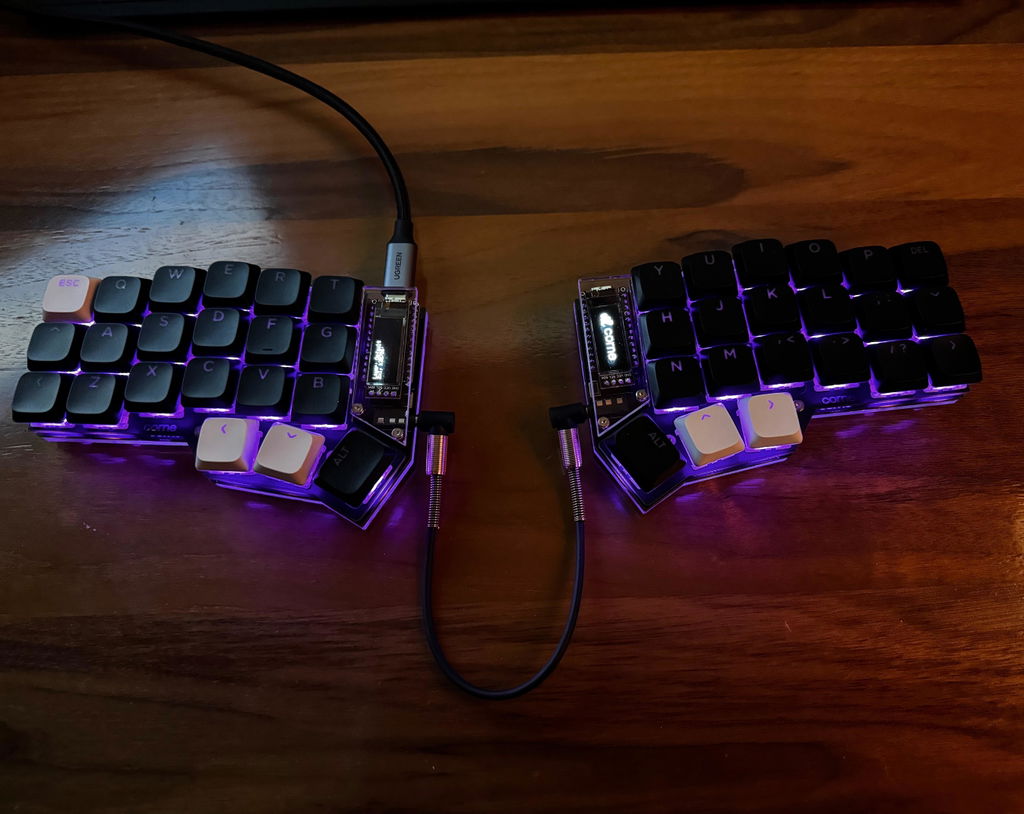

I am typing this review on the keyboard I built from this kit. It obviously requires some soldering knowledge and equipment, but it's pretty easy if you look up how to solder the SMD diodes beforehand. The new typing experience is taking time to get used to, but the kit itself is high quality and includes everything you need except the microcontrollers (and switches and keycaps ofc). I added helios to my order and they are working well.
The kit was complete and nicely packaged. Assembly wasn't too difficult and I am enjoying the new keyboard.
