Kit de teclado RGB Sofle v2.1

Kit de teclado RGB Sofle v2.1

Precio habitual €55,95 EUR
Precio habitual Precio de oferta €55,95 EUR
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Caso
Color
×

El teclado Sofle es un teclado orto dividido con columnas escalonadas de 6 × 4 + 5 teclas con soporte para codificador.

Este teclado ejecuta QMK y se puede configurar con Via . La vía del firmware se puede encontrar aquí .

El kit incluye

Opción de caso normal Opción de caja de campaña

2 placas de interruptor FR4.

2 x placas inferiores acrílicas

Tornillos de 14x4mm

Tornillos de 14x6mm

2 x placas de interruptor acrílico para tienda de campaña

2 x placas inferiores acrílicas para tienda de campaña

16 x espaciadores de soporte para piernas

4 pernos hexagonales de 20 mm.

4 pernos hexagonales de 30 mm.

4 pernos hexagonales de 40 mm.

4 pernos hexagonales de 50 mm.

4 x tuercas de mano negras

8 tuercas para patas.

4 tornillos de 4 mm.

Tornillos de 24x6 mm

2 x cubiertas OLED acrílicas

2 x PCB flexibles

1 cable TRS.

2 conectores TRRS

2 interruptores táctiles de 3x6

2 pantallas OLED

58 enchufes Kailh Hotswap

60 diodos (SMD)

Separadores de latón de 4 x 10 mm

Separadores de latón de 10 x 7 mm

8 x pies de goma

Requerido para completar

2 x Microcontroladores Pro (Viene con cabezales para conexión directa)

58 interruptores MX

58 teclas MX

Elementos opcionales

1-2 codificadores

1-2 x perillas codificadoras

2 x SK6812mini RGB LED indicador de capa orientado hacia adelante

12 luces LED SK6812mini RGB orientadas hacia atrás

58 luces LED RGB SK6812mini por tecla

2 cabezales hembra rompibles mecanizados de 40 pines (permite el intercambio en caliente del controlador)

Conector macho rompible mecanizado de 2 x 40 pines (permite intercambio en caliente)

o

Paquete de 2 x 25 pasadores mecanizados Mill-Max

Instrucciones de construcción

Guía de construcción de Sofle v2.1 RGB

Este teclado está diseñado por Josef Adamčík y puede encontrar más información aquí .

Ver todos los detalles

Customer Reviews

Based on 5 reviews
40%
(2)
40%
(2)
20%
(1)
0%
(0)
0%
(0)
J
JP
Great kit

Came with everything I needed and was straightforward to setup. Was my first time soldering and I didn’t use any practice kits before getting started on this, with some help from people on the KEEBD discord, it was a pretty painless process. SMD LEDs need special attention to the correct orientation

h
harrison
Fun kit, some teething issues

I have no issues with Keebd's service and shipping, and it's great to see local vendors of split/ergo keyboard kits.

There's a few teething issues with this kit as currently sold; if they were resolved this would be an easy 5-star recommend.

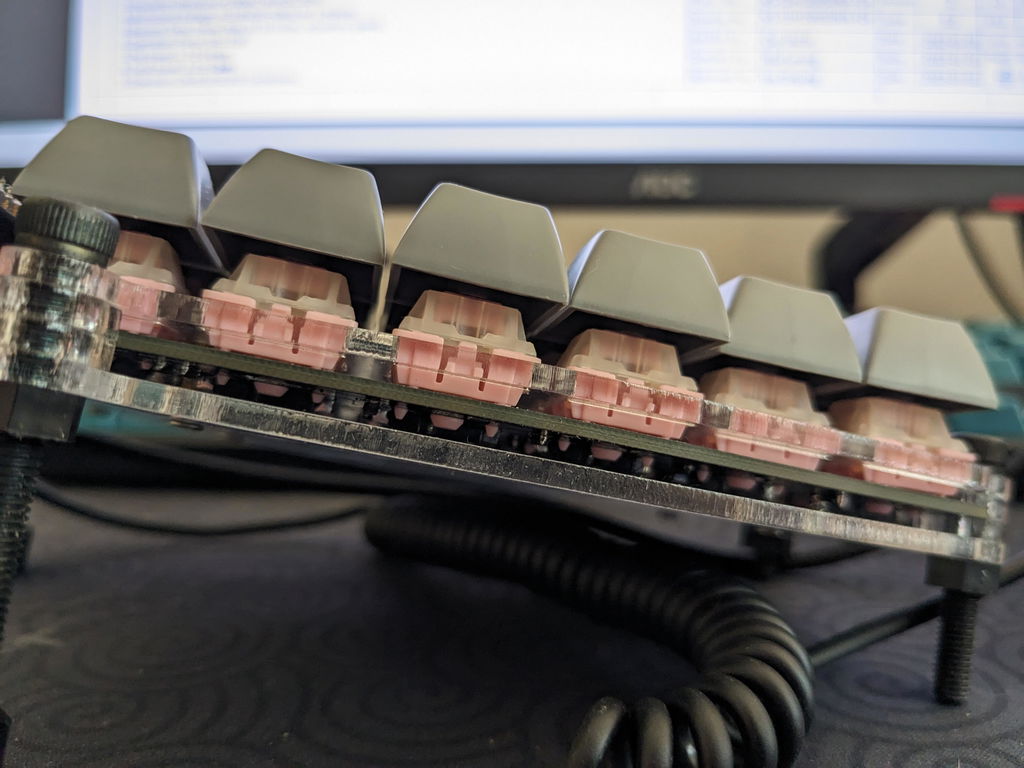

1. The switch plate is 3mm acrylic, which is too thick for switches to properly clip into. Since this is a hotswap board, the switches will tend to wiggle up rather than stay flush with the plate. A 1.5mm plate would be more appropriate.

2. The tenting kit could use improvement. You only get 8 plastic nuts (one per bolt used), so if you want finer adjustment than 10mm increments, i.e having certain bolts sit partially above the case, you'll need to pick up more. It also only includes 4 "feet" (the hand nuts), so the other four bolts will put extra pressure on your deskmat or other typing surface. I wouldn't use the tenting kit on an easily marred surface (e.g. wood), certainly not without extra hand nuts.

I understand the need to keep the tenting kit's costs down, especially since it includes 8 extra bolts. Perhaps the product page could mention the kit's limitations and point people to the additional hardware if they feel they need it?

Also, the tenting kit's standalone product listing comes with a different list of hardware (8 bolts, 8 feet). Perhaps this should be rationalised?

3. Some of the diode markings are extremely faint, which led to me soldering one back-to-front. This was on top of several cold-solder joints I made with diodes and hotswap sockets (entirely my fault). Make sure you have a multimeter (any budget one will do) to help troubleshoot non-working switches.

Lastly, just a suggestion: It'd be nice to see a cheaper option for a tenting/tilting keyboard. I don't know what the wholesale price is for hotswap sockets and OLED screens, but based on the retail prices, you could maybe sell the Sofle 2.0 non-hotswap variant, without OLEDs, for $100?

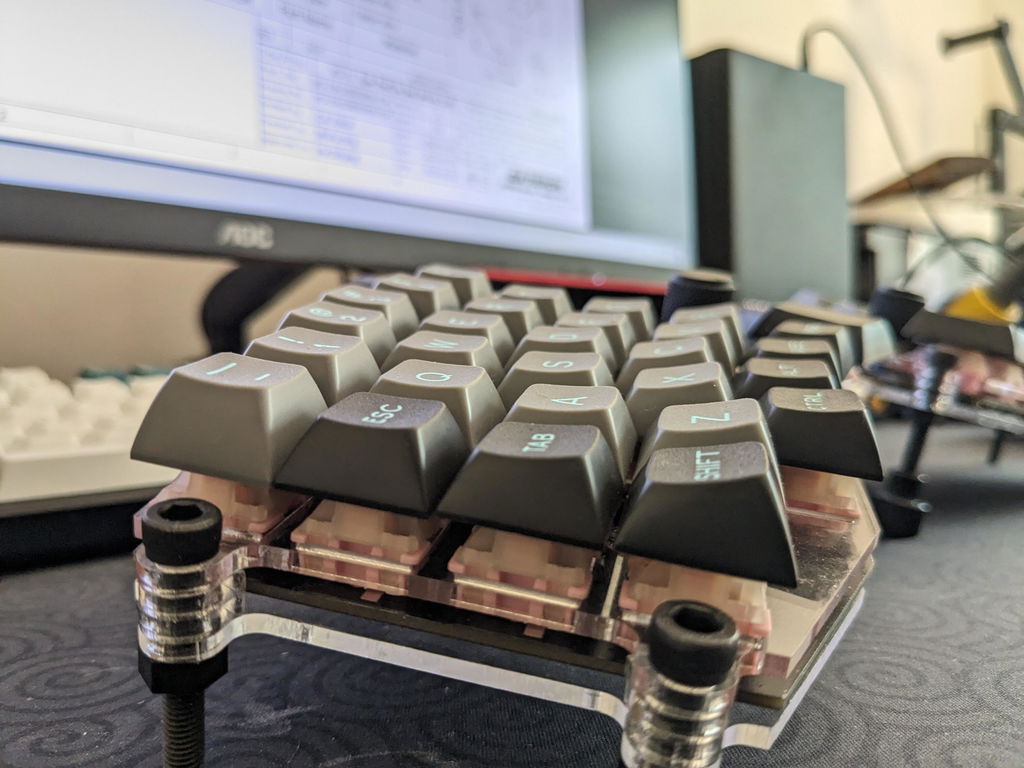

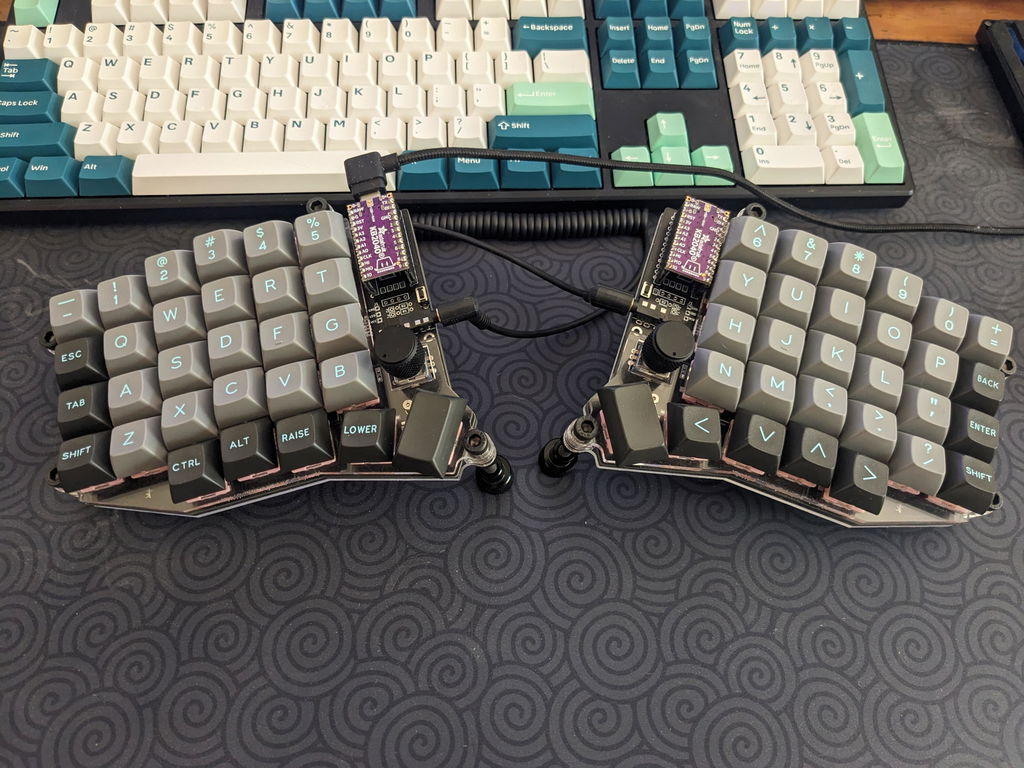

Pictured: Sofle 2.1 with tenting acrylic case, DSS Lightcycle keycaps, and Adafruit KB2040 microcontrollers. I'm running CircuitPython and KMK as firmware. It's a nice user-friendly alternative to QMK, though I don't have the rotary encoders working yet. The switches are some Gaterons I had on-hand—I need to hand-lube them or swap them out for something smoother.

T
Toby Jenkins
Good keyboard

Fun build, looks good. Build guide a teency bit lacking and qmk firmware seems to be created by Satan himself, but the community is great so that helps. LEDs were easier to solder then I thought they would be.

C
Cora Grace
great keyboard for a tinkerer!

i had a lot of fun building this!

there were some problems along the way, and some problems that i have yet to solve. ill try to outline them here, but overall i am very happy :)

first, the good:
this kit contains most of what you need. its a perfect starting- off point for a keyboard project. for context, this was my first custom keyboard ever. prior to this, i had only ever bought keyboards like corsair, asus, razer, etc. the guides available for building this were easy to follow.

now the not-so-great:

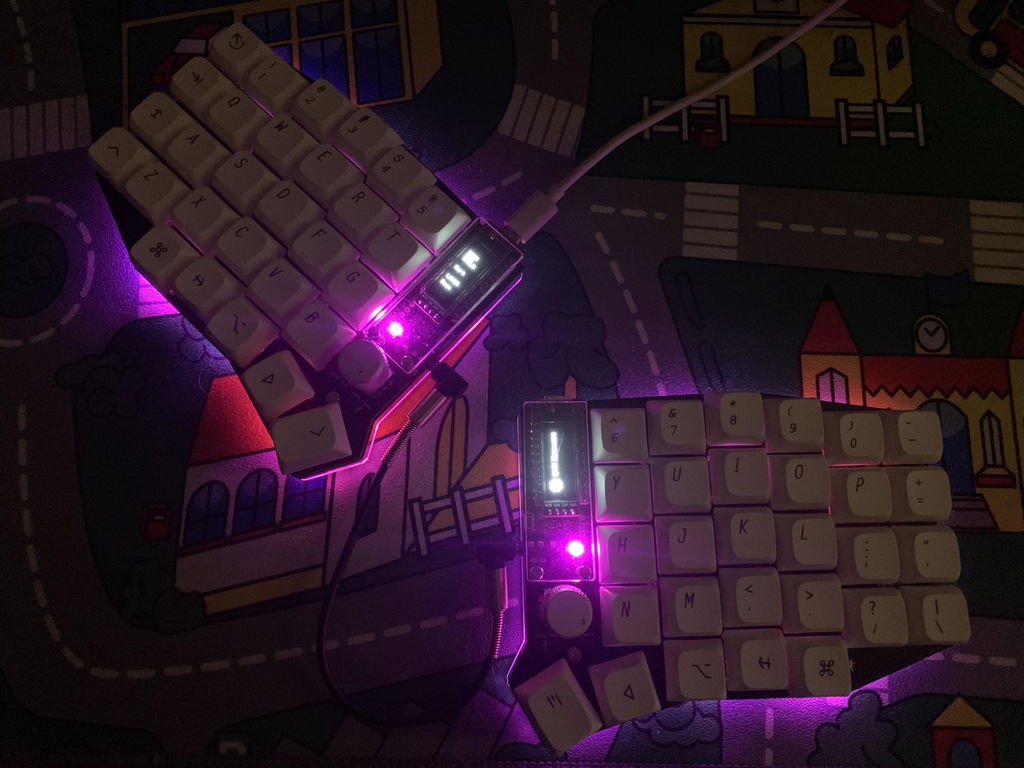

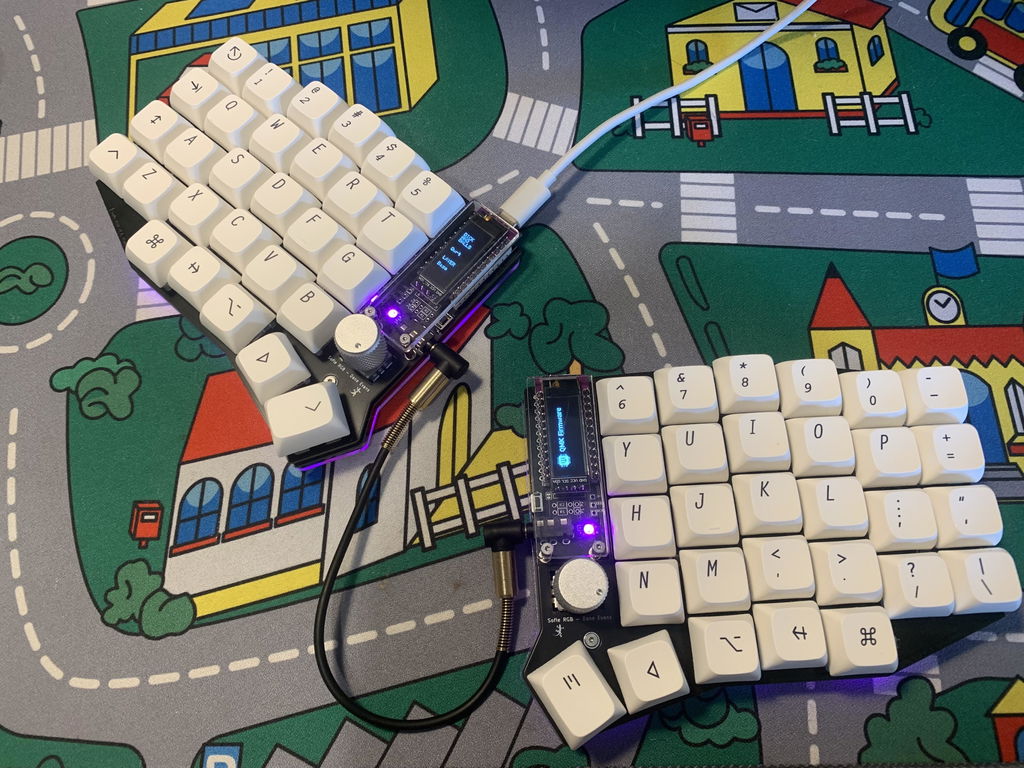

the kit (as of the time of writing) comes with an OLED cover that does not work with the larger knobs available to buy here. i made the mistake of getting one of the larger knobs, and was unable to use the cover. Keebd did supply me with a prototype OLED cover that has space for the larger knob, as shown in the pictures in this review, but i dont know if this will make it to the full kit.
secondly, the PCBs for this kit are a pain in the ass. the kit requires *specifically* the SK6812MINI LEDs. i bought the SK6812MINI-E LEDs expecting a slight variant of a chip to follow the same pinout, but whomever made the SK6812MINI-E variant decided they wanted to spite god, so it didnt work. this is my own fault, but its also a fault many people will make so im pointing it out. for this kit, you need the non-E variant of the LEDs. or do what i did and get the Sofle v3.0 PCB printed by JLCPCB and use the Correct LEDs.
also, the tenting kit only comes with two poles. meaning youre stuck with one angle of adjustment which is fine i guess but not perfect, the spacers that go between the two acrylic sheets are not large enough and lead to a bit of bending and weakening in the acrylic, and also the acrylic is too thick on the top layer, leading to the switches not being held in correctly. also the little plastic feet that stick on the bottom of the nuts dont hold very well and just slid off. its fine i guess but ya know.

and lastly, the bad:
the software this keyboard uses, QMK, is a mess. my first attempts to compile a firmware were met with errors about mis-aligned LED numbering, because the default layout wasnt configured correctly (this did get fixed eventually), the wiki for how to do any of it is literally un-searchable on the internet (its here btw: https://docs.qmk.fm/#/newbs_getting_started) but its also incomplete in only the ways open-source software is, and on that note, the discord community for QMK is weirdly insular and insulting to new people in only the ways a programmer-centric community can be.
or you can just use the default layout supplied by Keebd here on their docs page, which i didnt know existed until just now...

N
Nick

There was a missing component from the kit I ordered, so I sent a message through the website, and sent an email. I have had absolutely no response whatsoever to either; not even an acknowledgment.
The only reason it gets 3 stars is that the missing component was a cheap diode, but I definitely won't be buying from Keebd in the future if they can't even be bothered to respond
