Basketweave Alice-style Keyboard Kit

Basketweave Alice-style Keyboard Kit

Regular price $150.00 AUD
Regular price Sale price $150.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
×

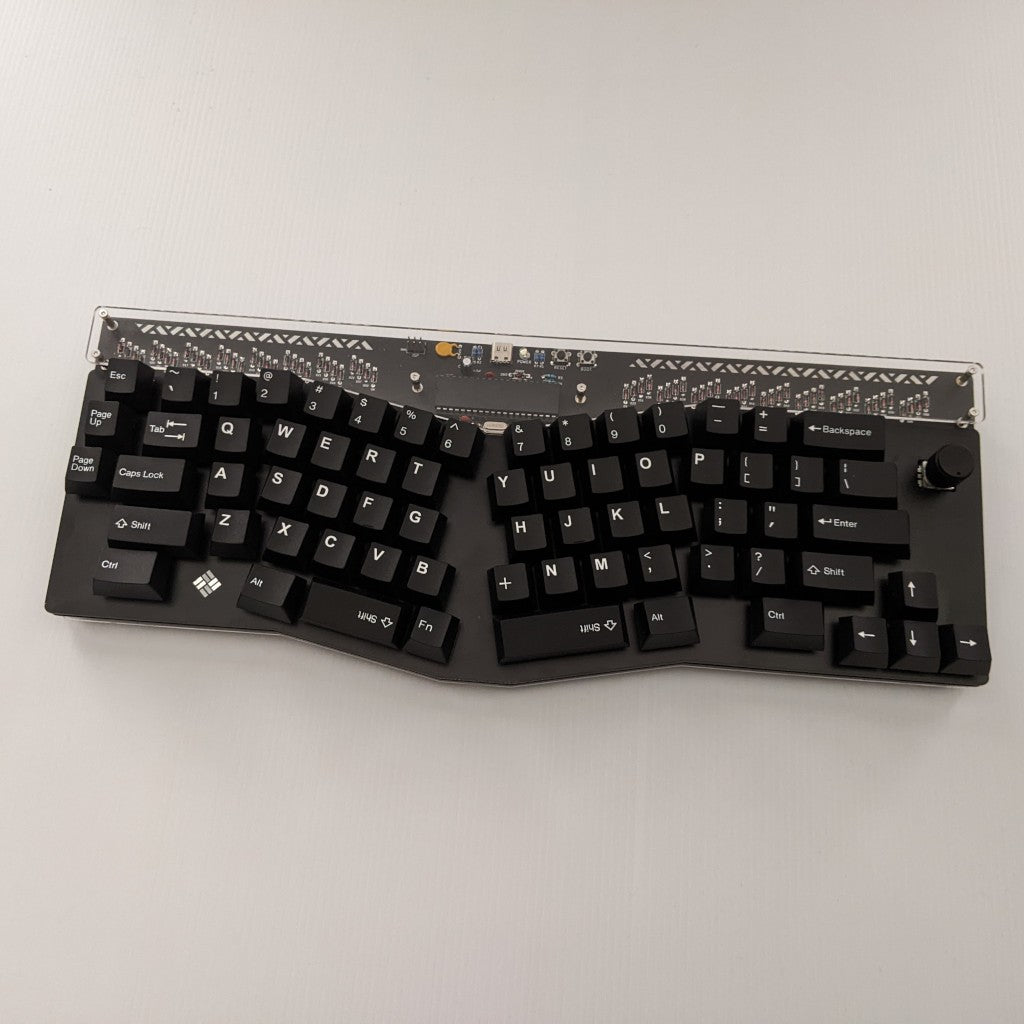

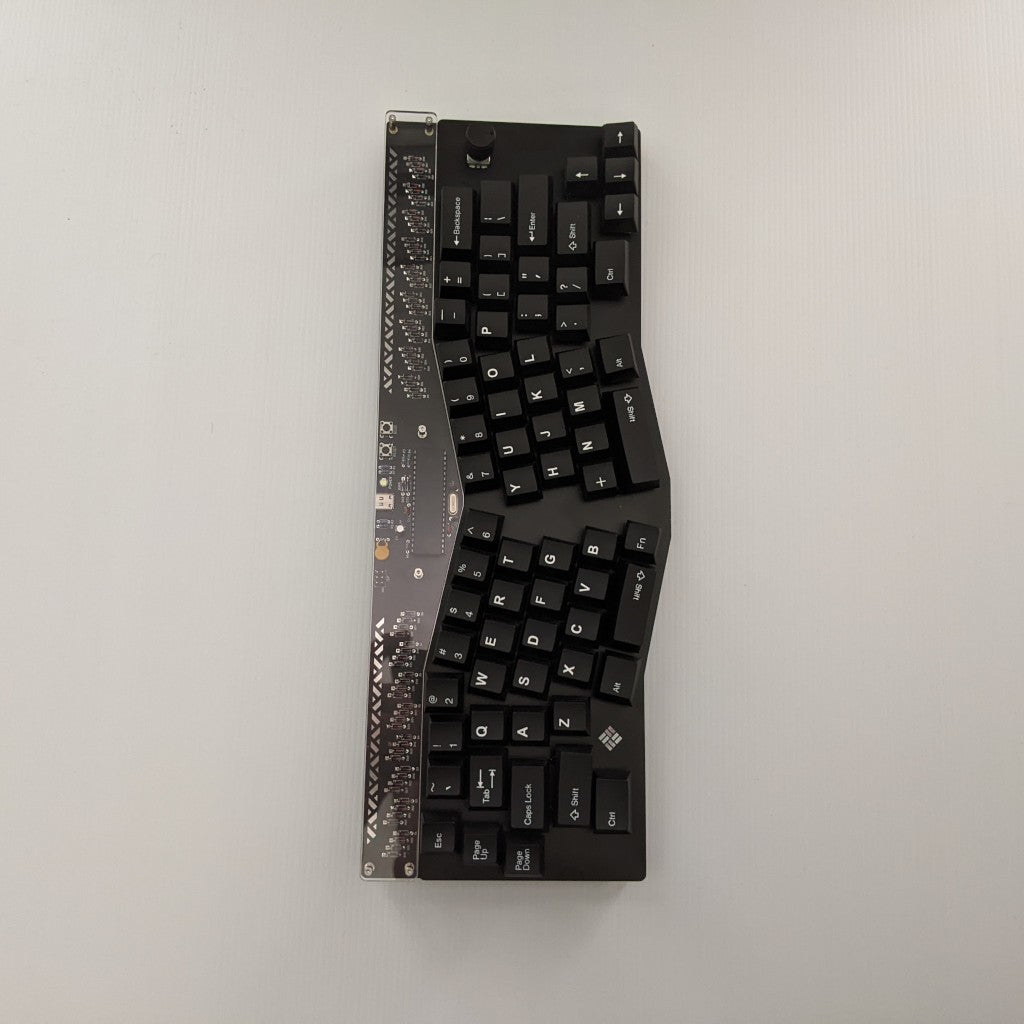

The Basketweave is a through-hole Alice-style keyboard with arrow keys and a rotary encoder.

This keyboard runs QMK firmware found here. The ATmega32A-PU included in the kit comes flashed with bootloader and default firmware.



Kit Includes

1 x Basketweave FR4 Switch Plate

1 x Basketweave PCB

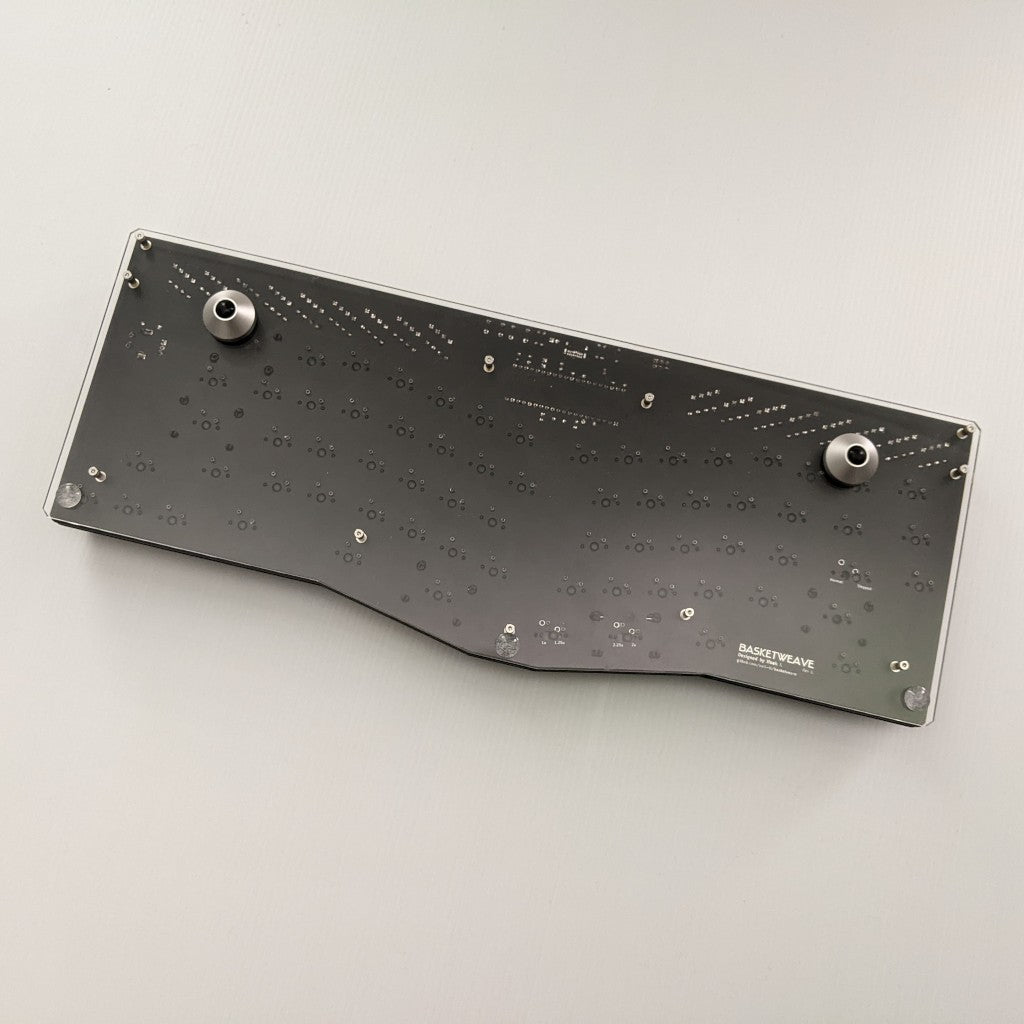

1 x Acrylic Bottom Plate

1 x Acrylic Component Cover

69 x 1N4148 Diodes (Through Hole)

2 x 22pF Capacitors

2 x 0.1uF Capacitors

1 x 4.7uF Capacitor

2 x 3.6V Zener Diodes

1 x 500mA Resettable Polyfuse

1 x USB-C Port

1 x 2x3 ISP Header

1 x 3mm Red LED

2 x 1.5k Resistors

2 x 5.1k Resistors

2 x 75R Resistors

1 x 10k Resistor

1 x ATmega32A-PU

1 x 40 pin IC Socket

2 x 6mm Tactile Switches

1 x 16MHz Crystal

1 x EC11 Rotary Encoder

11 x 7mm Brass Standoffs

6 x 10mm+3mm Brass Standoffs

14 x 6mm Screws

8 x 4mm Screws

4 x Rubber Feet



Required to Complete

69 x MX Switches

69 x MX Keycaps

1 x Encoder Knob



Optional Items

5 x 2u PCB Mount Stabilizers

1 x Anodized Aluminum Feet



Build Instructions

Basketweave Build Guide



This keyboard is designed by null-ll.
