Cantor Keyboard Kit

Cantor Keyboard Kit

Regular price $40.00 AUD
Regular price Sale price $40.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

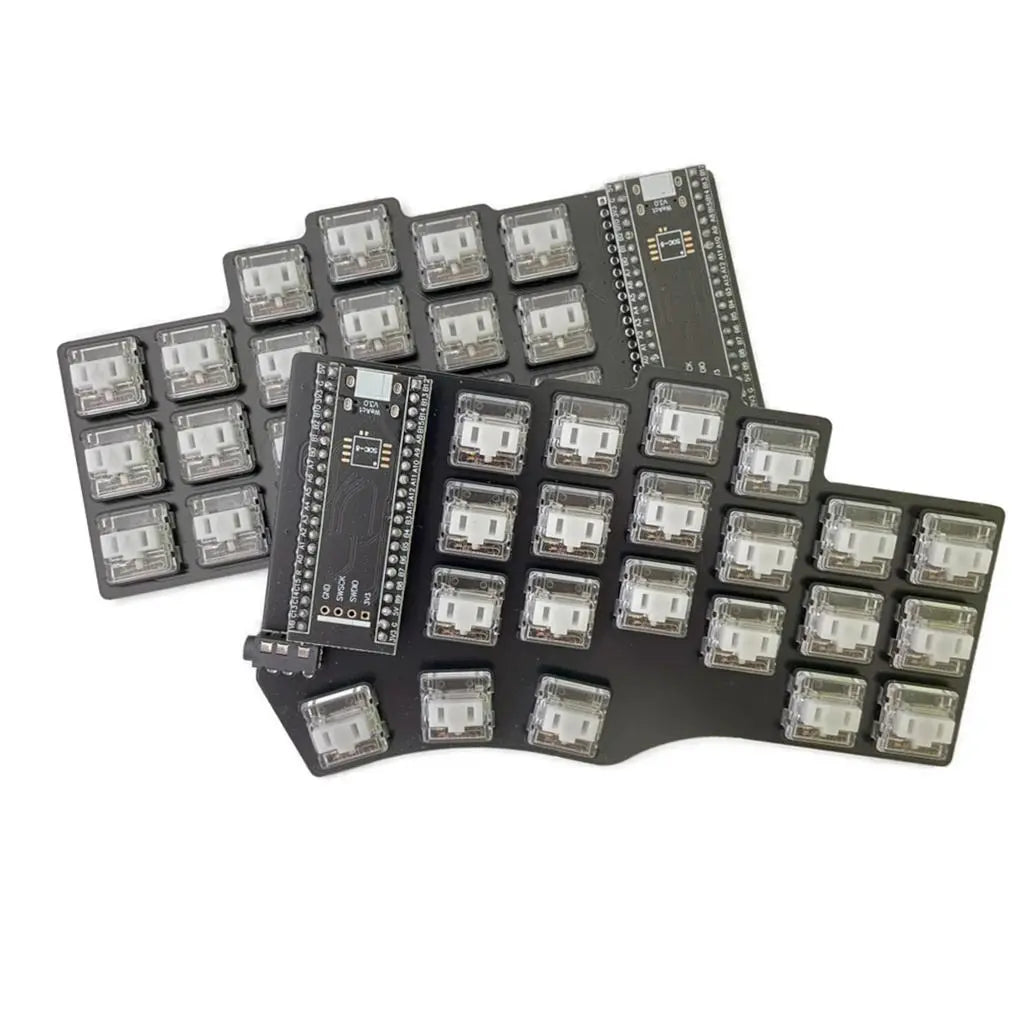

The Cantor keyboard is a 42 key diodeless split keyboard, designed with simplicity in mind. Aiming to provide a more ergonomic (stronger column stagger) corne-like layout with a simple, easy to assemble and cheap design.

The keyboard uses choc switches with choc spacing. Therefore, only MBK keycaps can be used.

Why diodeless?

A diodeless design reduces the keyboard assembly time, as the amount of components to solder is significantly reduced. Moreover, soldering diodes can cause trouble during the keyboard build. Diodes need to be placed in the correct direction, if not, the keys won't work well! Eliminating diodes will prevent many errors during the assembly process.



Kit Includes

2 x Cantor PCBs

2 x TRRS Sockets

1 x TRRS Cable

8 x Rubber Feet


Required to Complete

2 x Black Pill Controllers

42 x Choc Low Profile Switches

42 x Choc Low Profile Keycaps


Optional Items

1 x Cantor 3D Printed Low Profile Case

2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

4 x 25 Pack Mill-Max Machined Pins



Build Instructions

Cantor Build Guide



This keyboard is designed by diepala
