Corne Choc Low Profile RGB Keyboard Kit

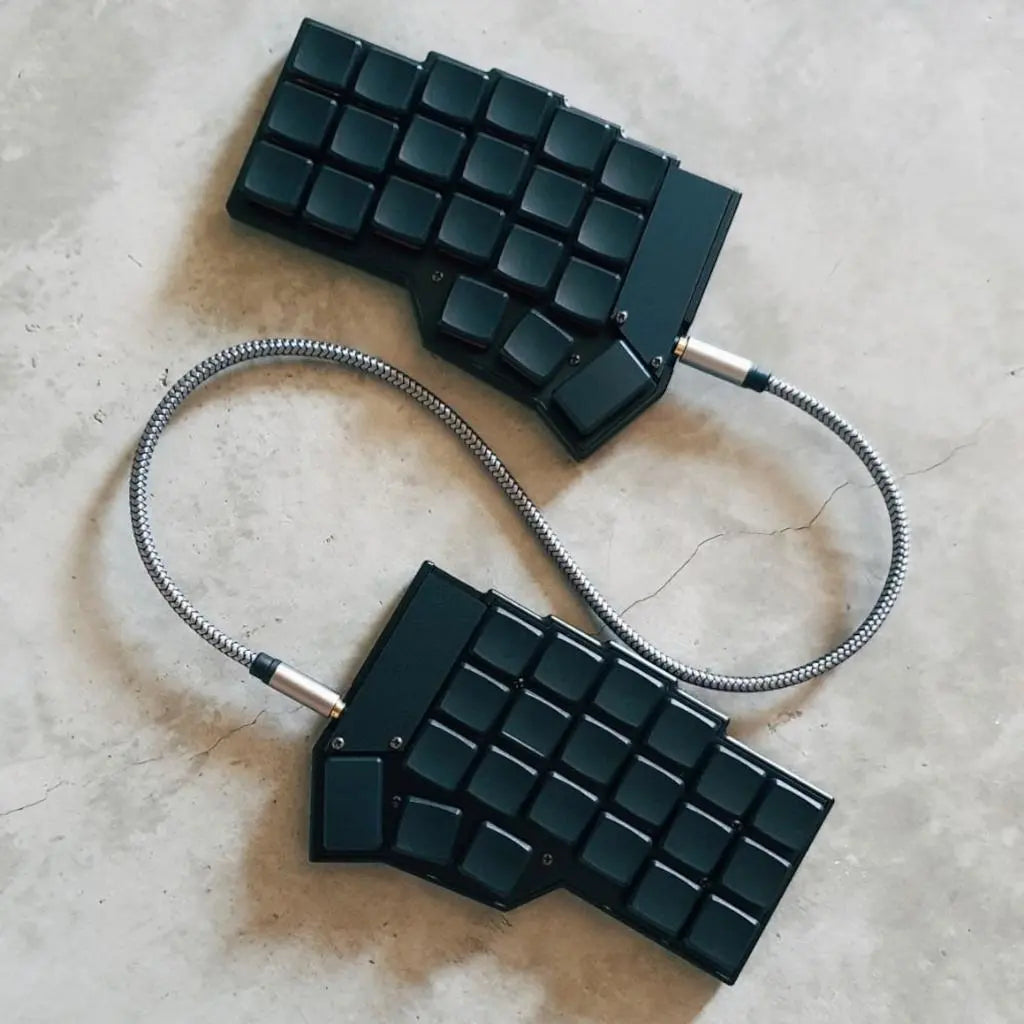

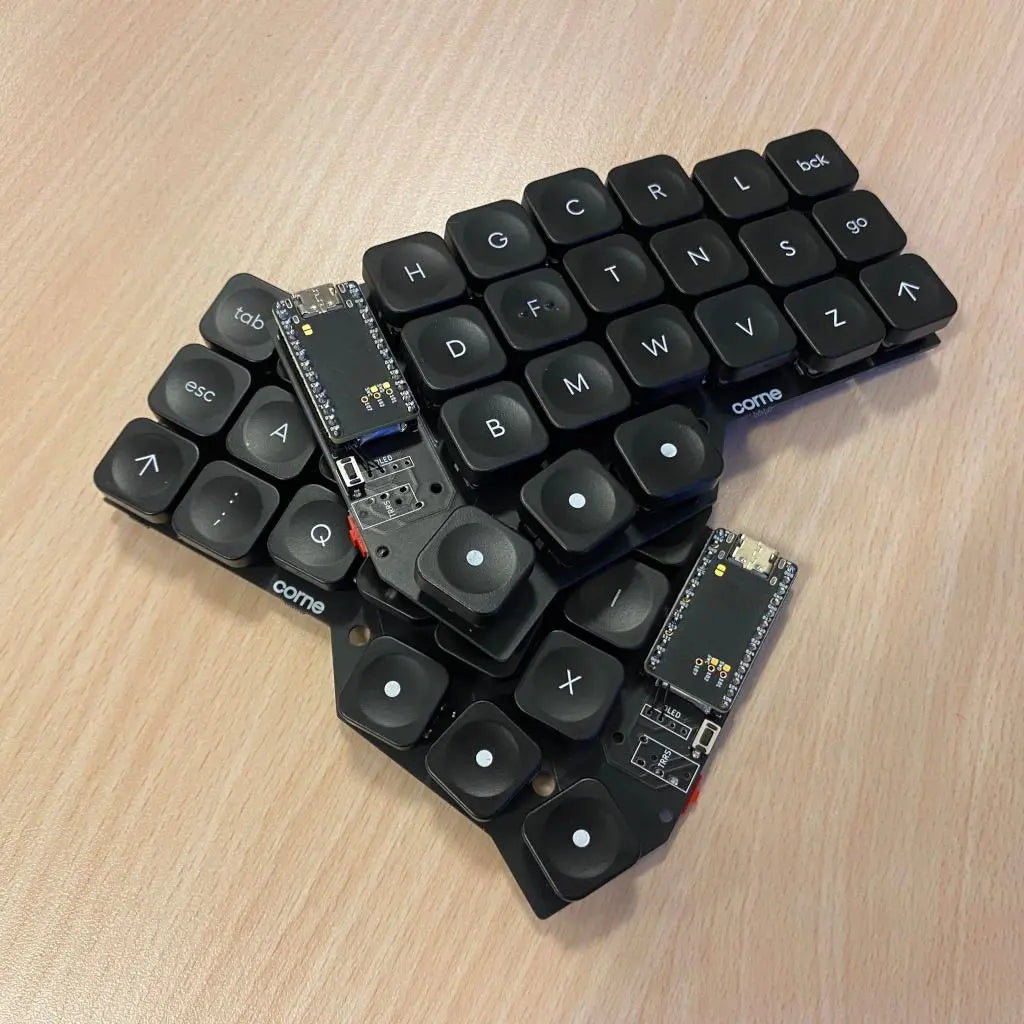

The Corne keyboard is a split keyboard with 3x6 column staggered keys and 3 thumb keys, based on Helix.

This keyboard runs QMK and is configurable with Via. The via firmware can be found here.

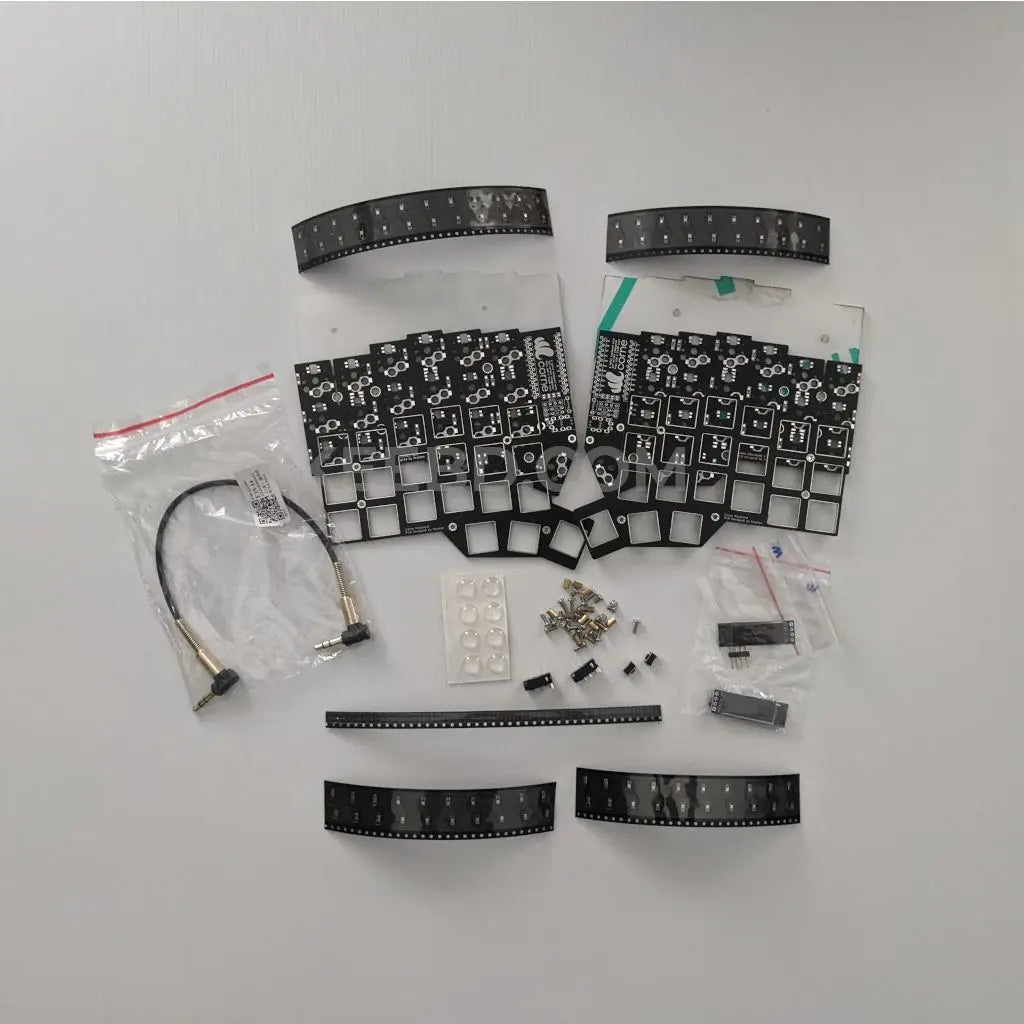

Kit Includes

2 x FR4 Switch Plates

2 x Corne Choc PCBs

2 x Acrylic Bottom Plates

2 x Acrylic OLED Covers

1 x TRS Cable

2 x TRRS Jacks

2 x 3x6 Tactile Switches

2 x OLED Displays

42 x Kailh Choc Hotswap Sockets

42 x Diodes (SMD)

4 x 10mm Brass Standoffs

10 x 5mm Brass Standoffs

4 x 6mm Screws

24 x 4mm Screws

8 x Rubber Feet

Required to Complete

2 x Pro Micro Controllers (Comes with Headers to Direct Attach)

42 x Choc Switches

42 x Choc Keycaps (40 x 1u, 2 x 1.5u)

Optional Items

42 x SK6812MINI LED Per Key Lights

12 x SK6812MINI LED Rear Facing Drop Lights

2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)

or

2 x 25 Pack Mill-Max Machined Pins

Build Instructions

Corne Choc Low Profile RGB Build Guide

This keyboard is designed by Foostan.
