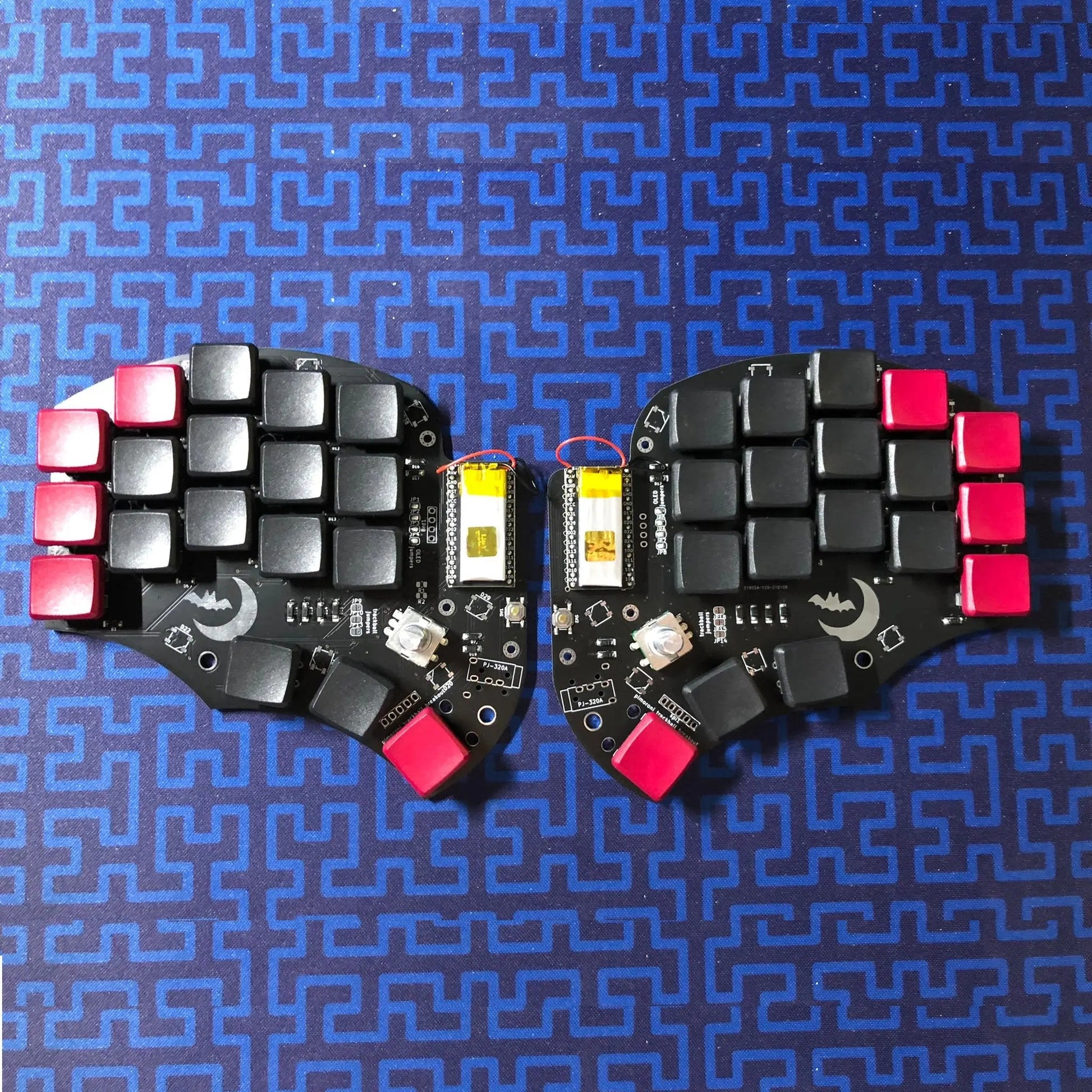

dracuLad Keyboard Kit

The dracuLad keyboard is a 34 to 36 key keyboard with encoder and built in pimoroni trackball support.

This keyboard runs QMK and the firmware can be found here.

ZMK basic support is also possible and the firmware can be found here.

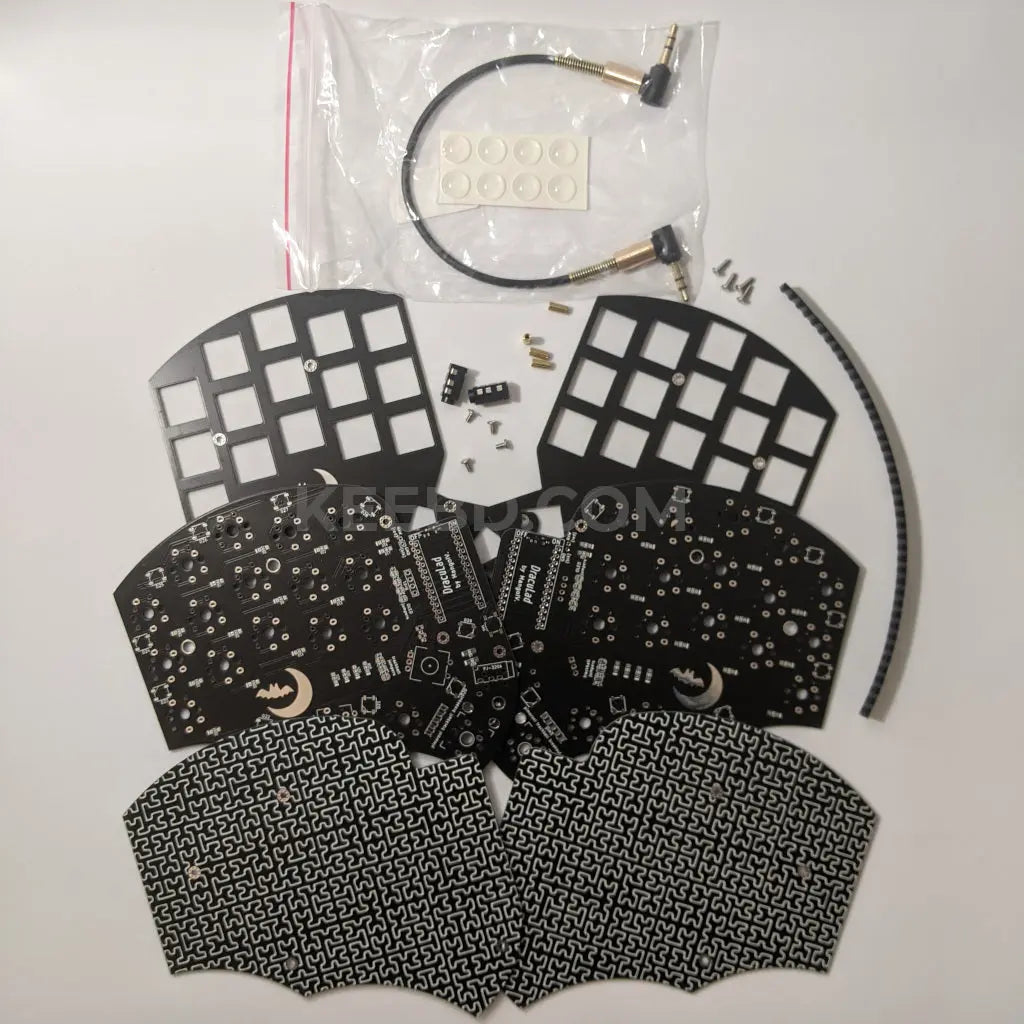

Kit Includes

2 x FR4 Switch Plates

2 x dracuLad PCB Boards

2 x FR4 Bottom Plates

2 x Tactile Switches (SMD)

1 x TRS Cable

2 x TRRS Jacks

40 x Diodes (SMD)

8 x 7mm Brass Standoffs

16 x 4mm Screws

8 x Rubber Feet

Required to Complete

2 x Pro Micro Controllers (Comes with Headers to Direct Attach)

34-36 x MX Switches / Choc Switches (Supports both MX Compatible or Choc Low Profile switches)

34-36 x MX Keycaps / Choc Keycaps

Optional Items

1 x dracuLad OLED Cover Kit (10mm if you are using machined headers and pins for your controllers + OLED displays. Shorter or longer depending on your setup)

2-4 x Encoders

2-4 x Encoder Knobs

2 x LCD OLED SSD1306 Modules (128x64)

2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)

2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)

or

2 x 25 Pack Mill-Max Machines Pins

20 x WS2812B RGB LED Rear Facing Drop Lights

1 x Pimoroni Trackball

Build Guide

dracuLad Build Guide

This keyboard is designed by MangoIV.
