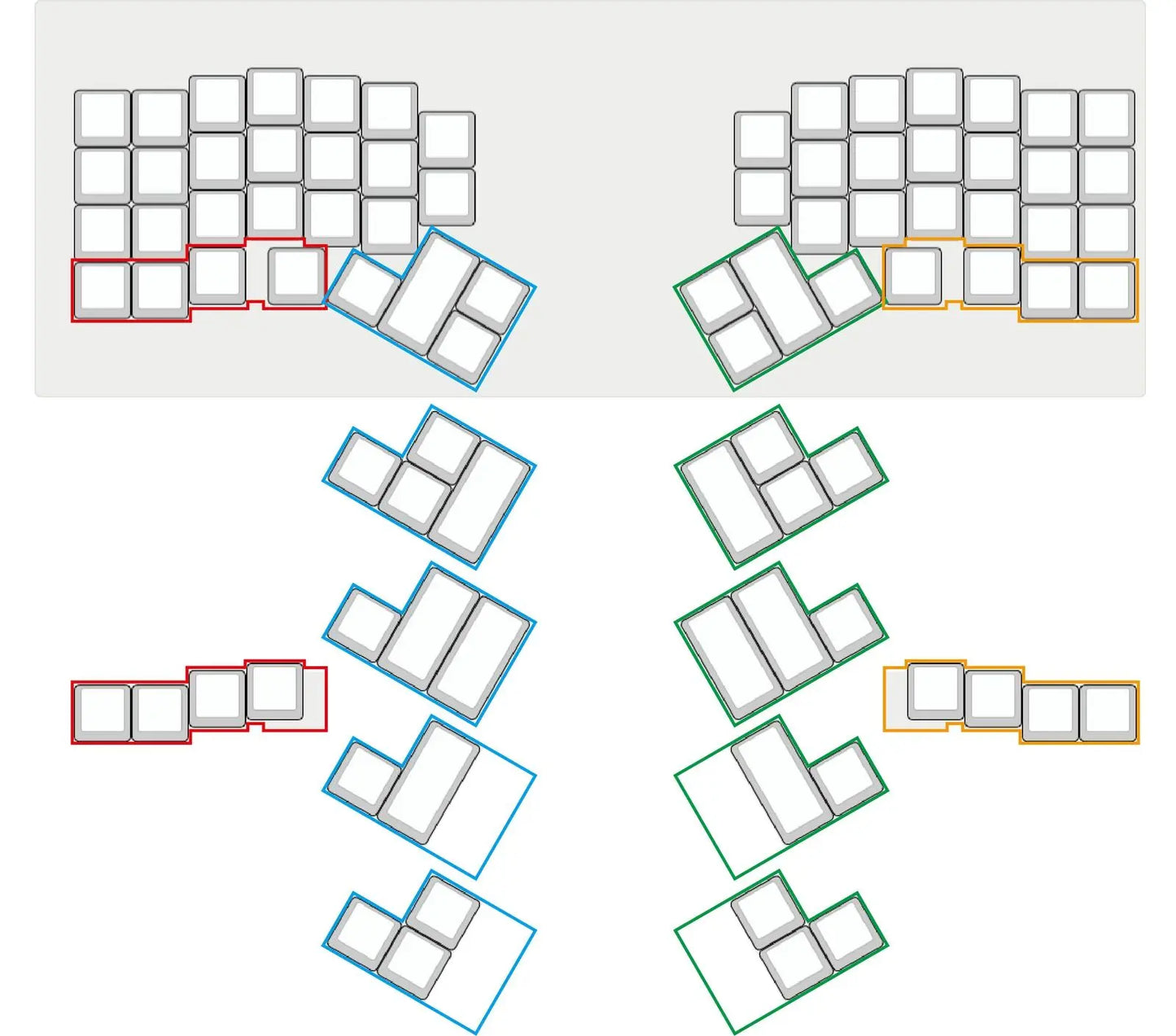

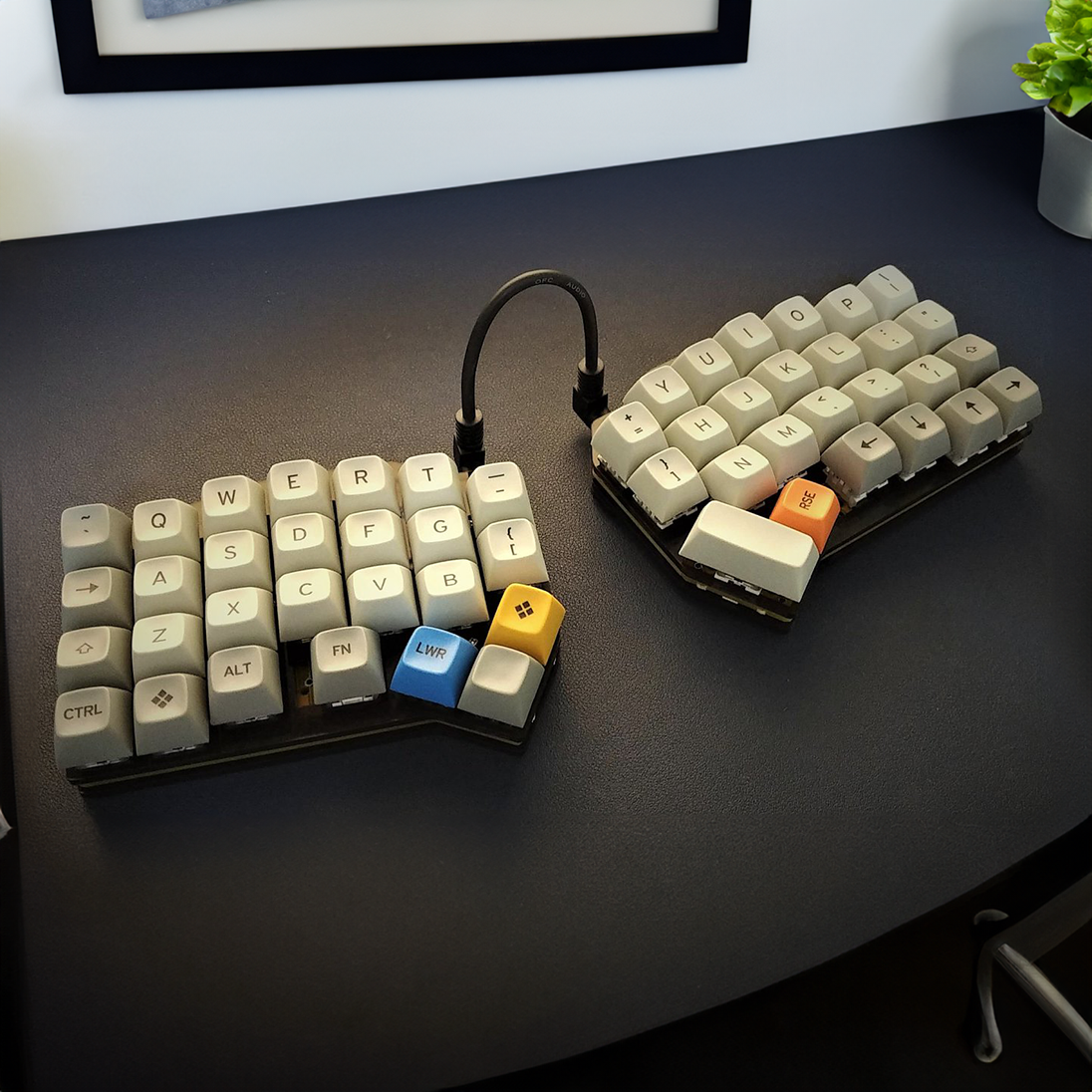

The Ergodash Mini is a split, ergonomic mechanical keyboard packed with options and features like RGB and per switch LED and over a dozen layout options, Cherry/Alps switch compatibility, piezo speaker and breakouts for additional connections.
This keyboard runs QMK firmware found here.
Kit Includes
2 x FR4 Switch Plates (Double Thumb)
2 x ErgoDash Mini PCBs
2 x Acrylic Foot Plates
2 x Acrylic Bottom Plates (Double Thumb)
56 x Diodes (Through Hole) or (SMD)
2 x TRRS Jacks
1 x TRS Cable
2 x Tactile Switches
14 x 4mm Screws
8 x 6mm Screws
6 x 10mm Screws
14 x 7mm Brass Standoffs
8 x Clear Rubber Feet
Required to Complete
2 x Pro Micro Controllers (Comes with Headers to Direct Attach)
56 x MX Switches
56 x MX Keycaps
Optional Items
20 x WS2812B RGB LED
56 x 3mm LED
2 x 40 Pin Machined Breakable Female Header (Enable Controller Hot Swap)
2 x 40 Pin Machined Breakable Male Header (Enable Hot Swap)
or
2 x 25 Pack Mill-Max Machined Pins
Build Instructions
This keyboard is designed by omkbd.
