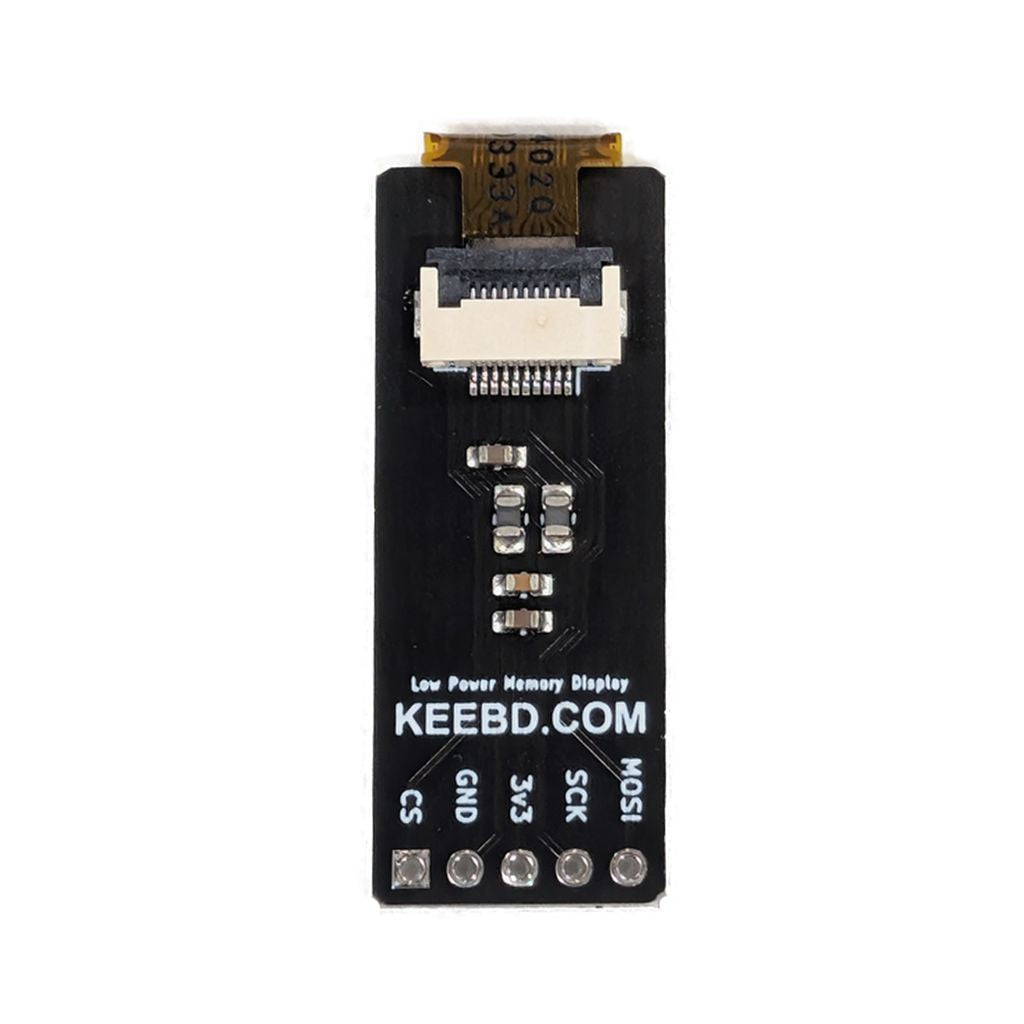

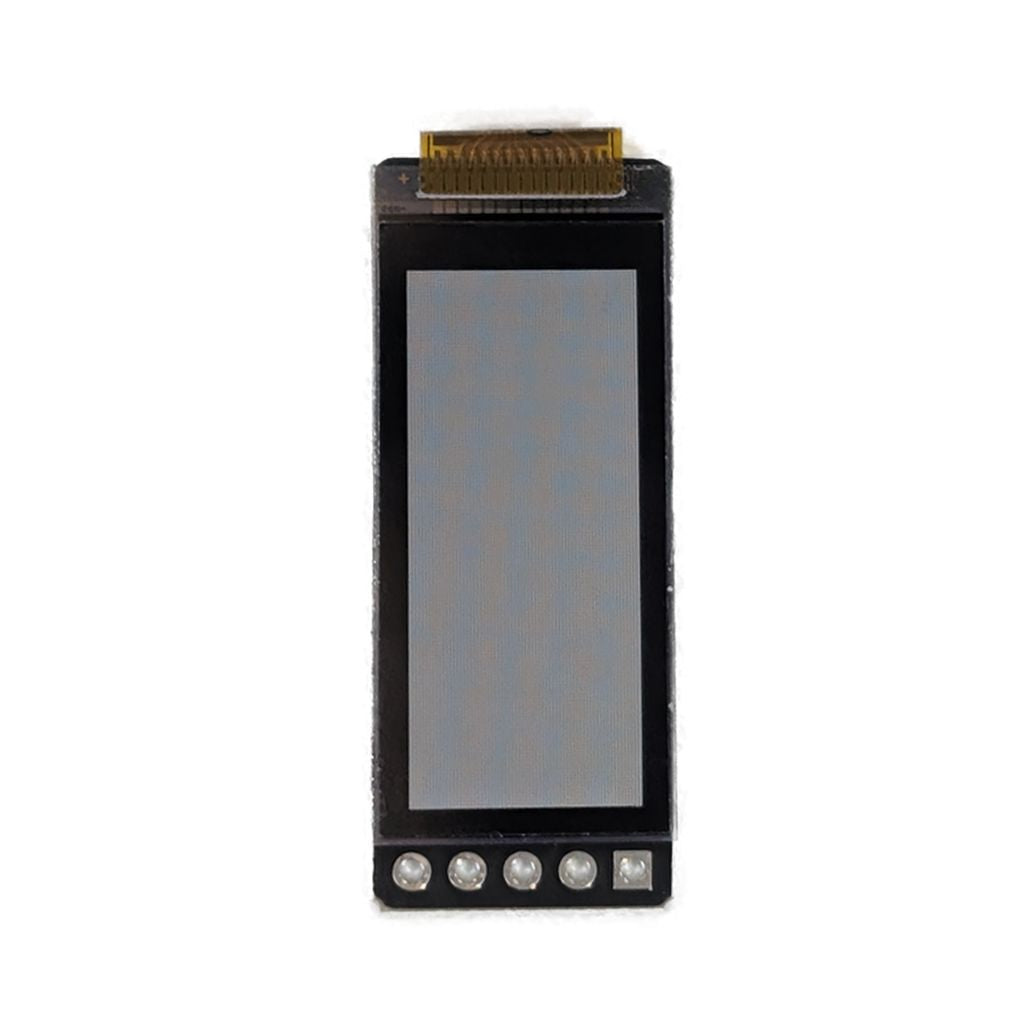

Low Power Memory Display
We respect your privacy and don't share your email with anybody.
...
Couldn't load pickup availability
Have your cake and eat it too with the all new low power memory display. Perect for your wireless or regular build. This is an excellent alternative to the nice!view displays and functions using the same firmware and hardware on existing keyboards.
Using Sharp's cutting edge Memory-in-Pixel technology, the display maintains 30Hz at e-paper level power draw.
Stay Informed. See the status of your keyboard at a glance including current profile, output, layer, battery, and more.
Header pins included. Plan on socketing your controlls and displays? Look here for different 5Pin Header Sockets heights.
Tech Specs Resolution: 160 x 68 (1.08")
Dimensions: 36 x 14 x 2.9mm
Refresh Rate: 30Hz
Typical Power Draw: ~10μA
Protocol: 3-wire SPI
Voltage: 3.3V
Display: Sharp LS011B7DH03

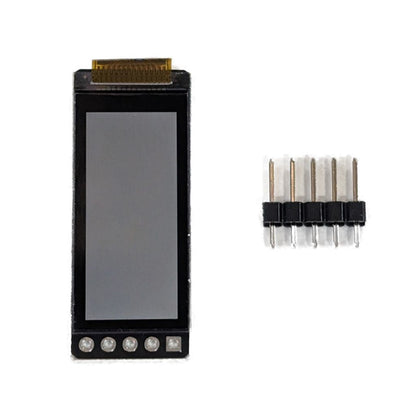

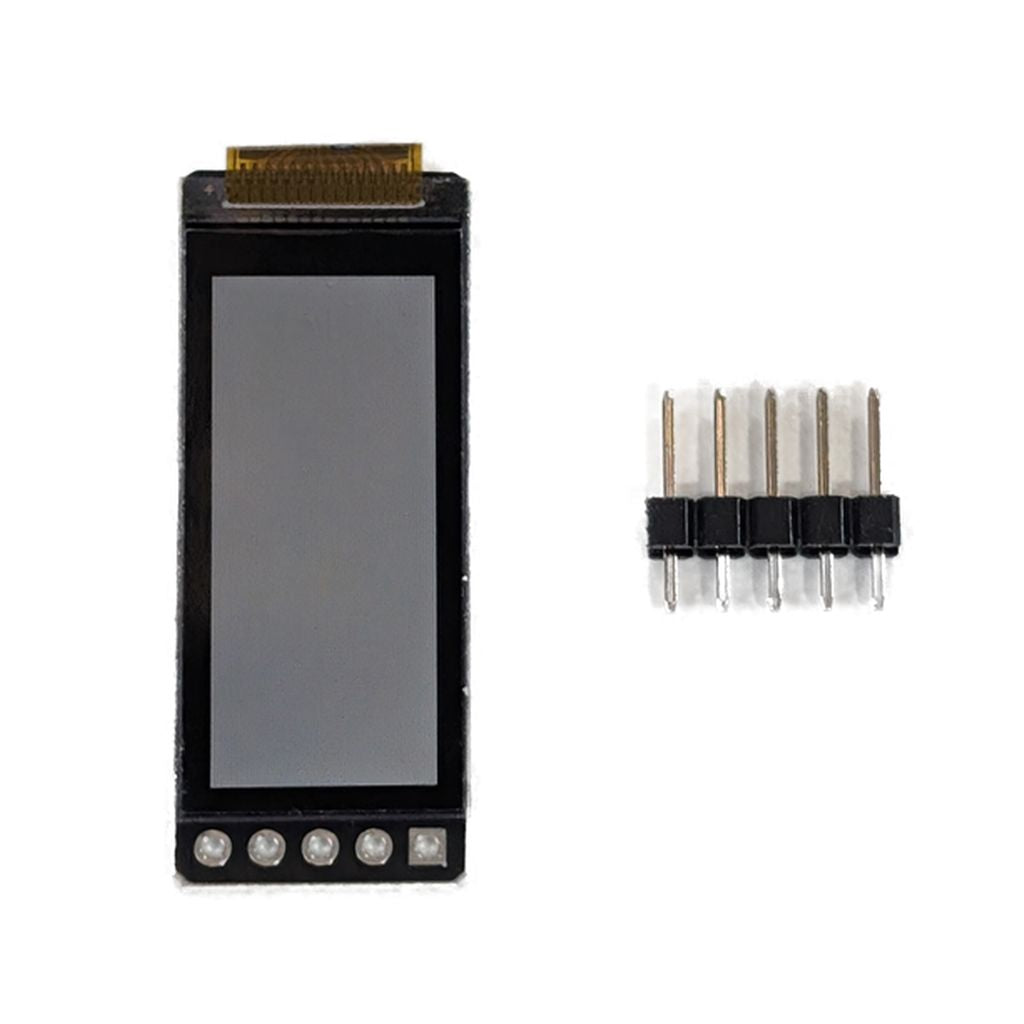

Includes
1 x Low Power Memory Display
1 x Mounting Header
Using Sharp's cutting edge Memory-in-Pixel technology, the display maintains 30Hz at e-paper level power draw.
Stay Informed. See the status of your keyboard at a glance including current profile, output, layer, battery, and more.
Header pins included. Plan on socketing your controlls and displays? Look here for different 5Pin Header Sockets heights.
Tech Specs Resolution: 160 x 68 (1.08")
Dimensions: 36 x 14 x 2.9mm
Refresh Rate: 30Hz
Typical Power Draw: ~10μA
Protocol: 3-wire SPI
Voltage: 3.3V
Display: Sharp LS011B7DH03
Includes
1 x Low Power Memory Display
1 x Mounting Header
