Pinecil Smart Portable Soldering Iron

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds!

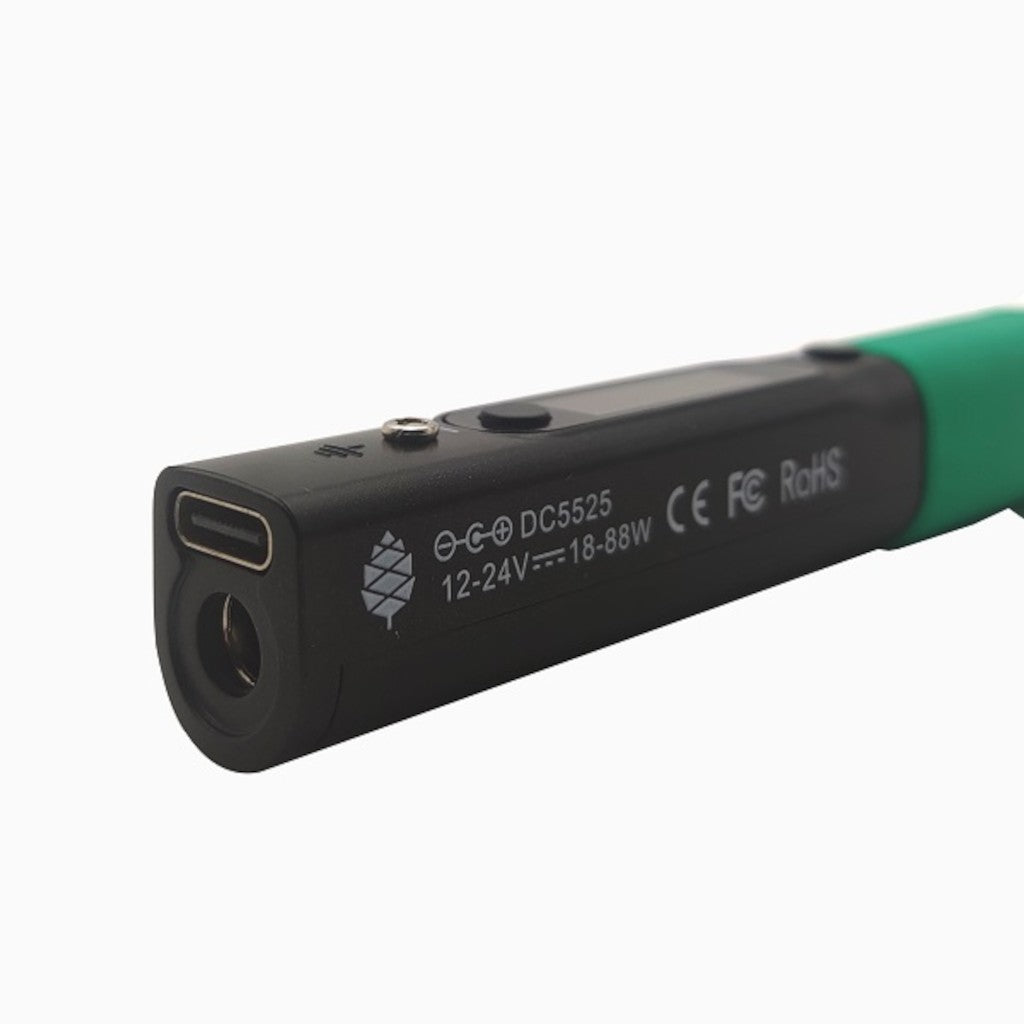

Dual power input design:

• 1) USB type C: PD and QC 3.0 12V-20V 3A
• 2) Barrel Jack: DC5525, 12V-24V DC 3A

Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature.

Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.

Portable and features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.

Auto standby mode engages when it is not in use ensuring the user safety.

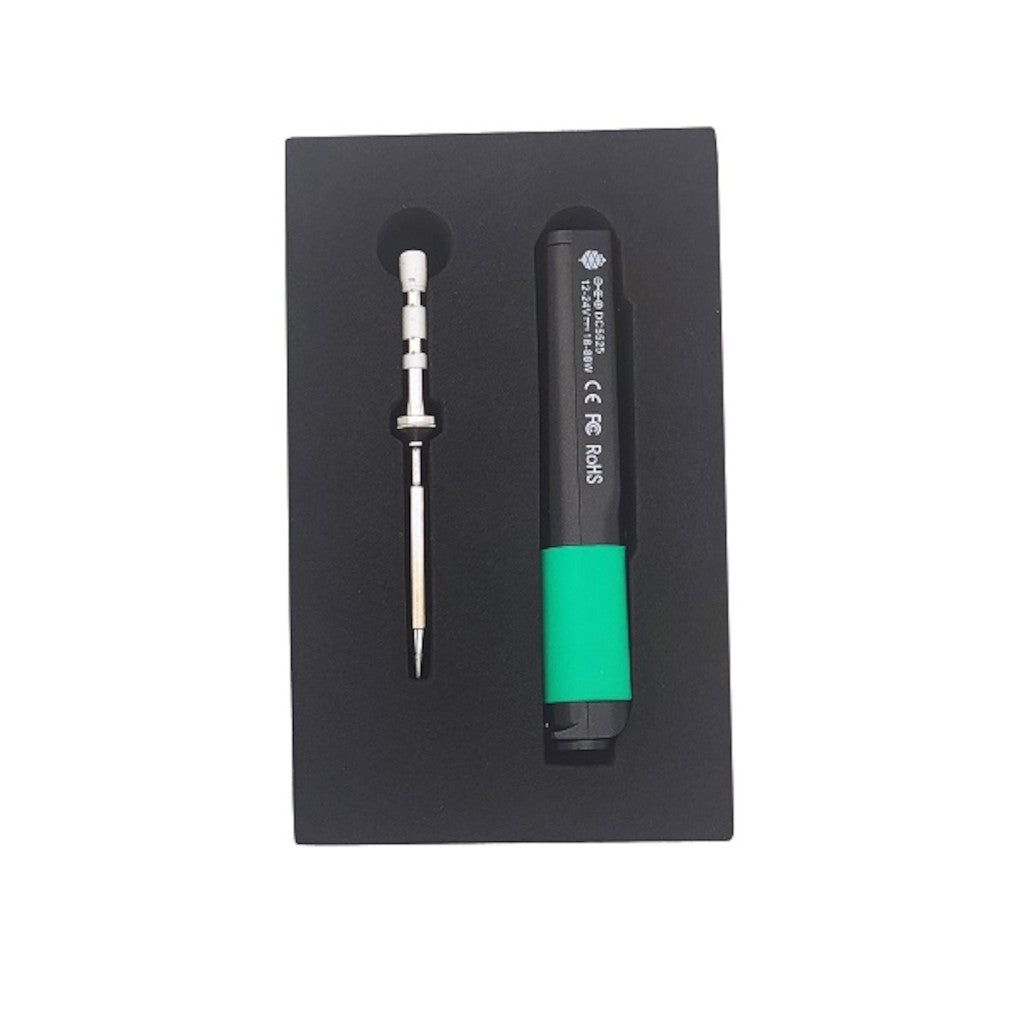

Includes

1 x Pinecil Soldering Iron

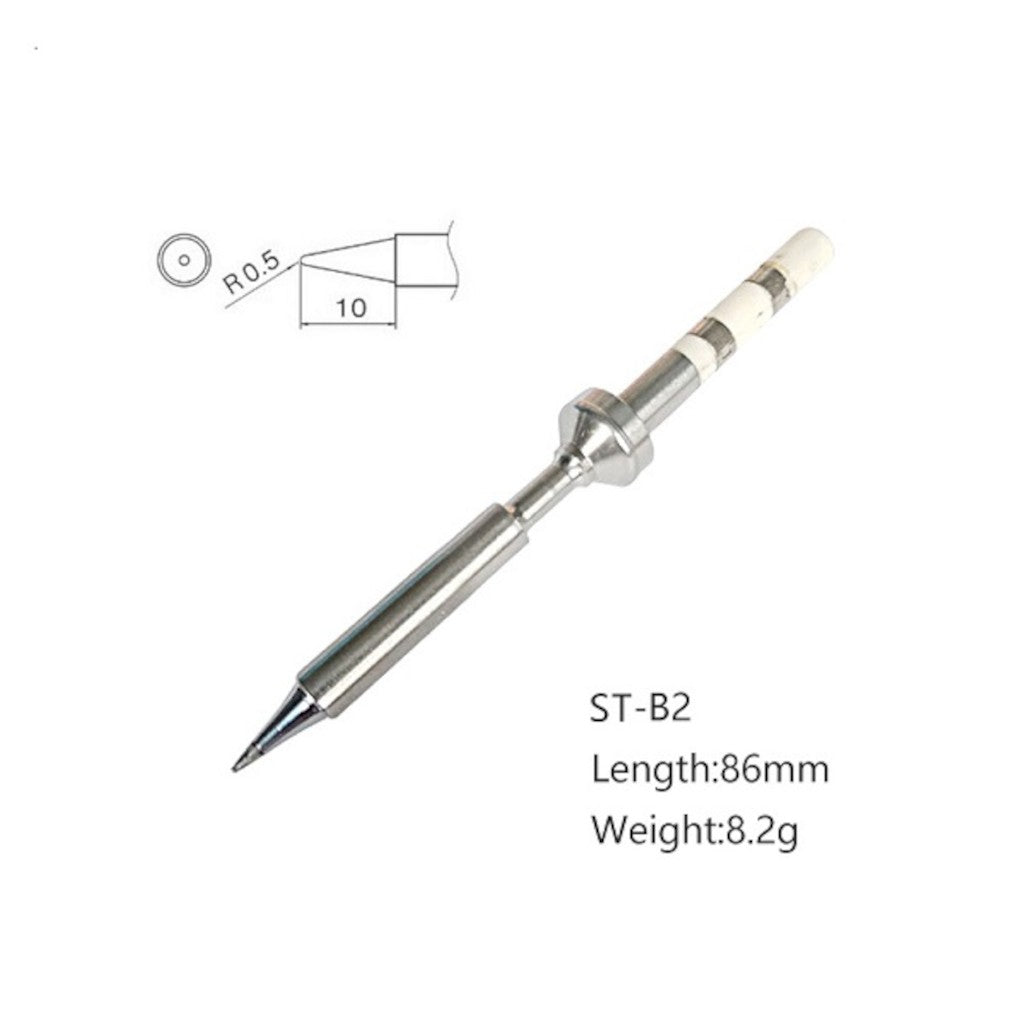

1 x B2 86mm Tip

Optional

1 x 65W USB-C Charger

1 x USB-C to USB-C Silicon Heat Resistant Power Cable

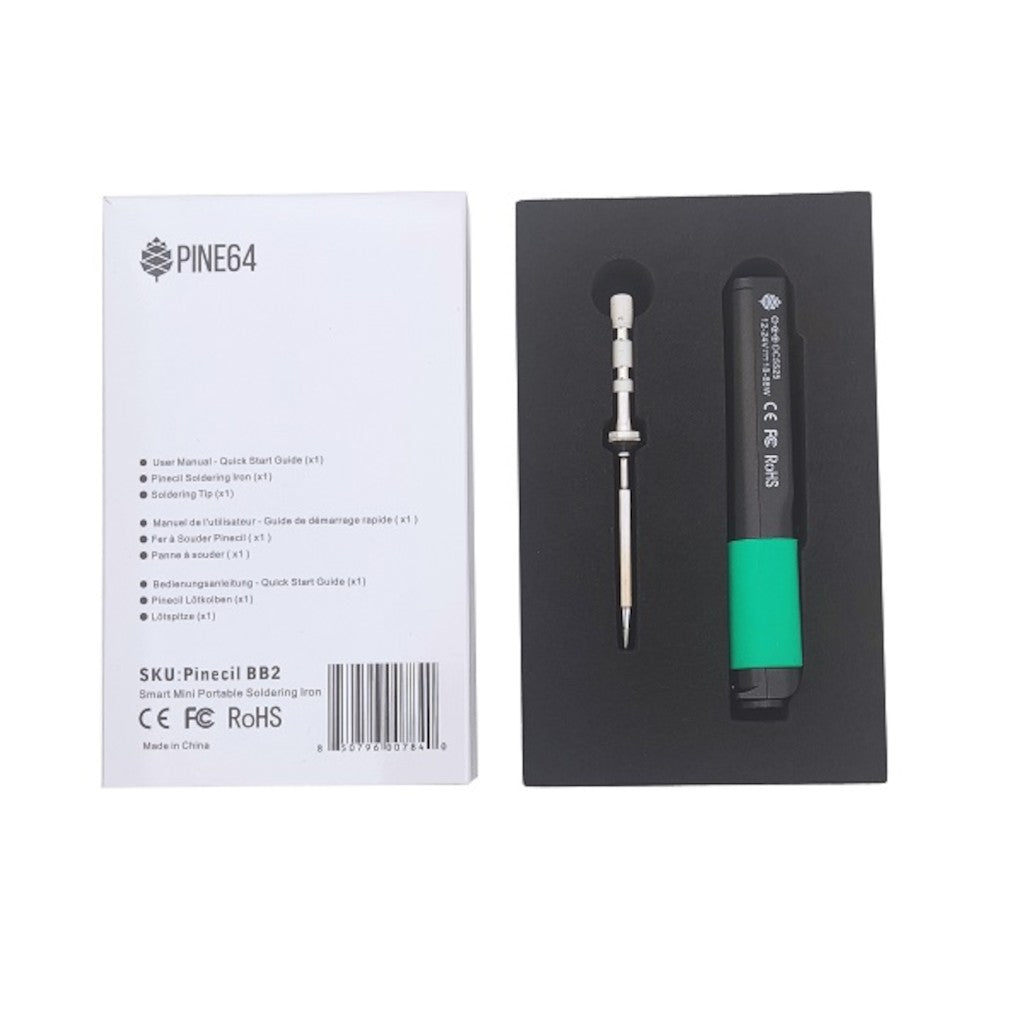

Package

• Dimensions: 15cm x 9cm x 2.2cm
• Weight: 80 grams

Unit

• 155mm with solder tip / 103mm without
• Weight: 28g with solder tip / 18g without solder tip
• Build:  Plastic with metal clip (Handle)
• Color: Black (case)/ Green (Sleeve)

Platform

• OS: Ralim’s IronOS build
• Chipset: GigaDevice GD32VF103TB
• CPU: 32-bit RV32IMAC RISC-V “Bumblebee Core” @ 108 MHz

Display

• Type: OLED White Colour Monochrome Display
• Size: 0.69 inches
• Resolution: 96x16pixels

Memory

• Internal Flash Memory: 128KB
• System Memory: 32KB SRAM
• Expansion: None

Power Ports

• USB type C: PD and QC 3.0 12V-20V 3A
• Barrel Jack: DC5525, 12V-21V DC 3A

Tip Included

• Type B2
• Length: 106mm
• Weight: 10g

Features

• Capable received power from either USB-C port or barrel jack.
• GPIO break-out thru USB-C port

Certification

• FCC
• CE RED
• ROHS
