Treadstone48 50% Keyboard Kit

Treadstone48 50% Keyboard Kit

Regular price $80.00 AUD
Regular price Sale price $80.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Diodes

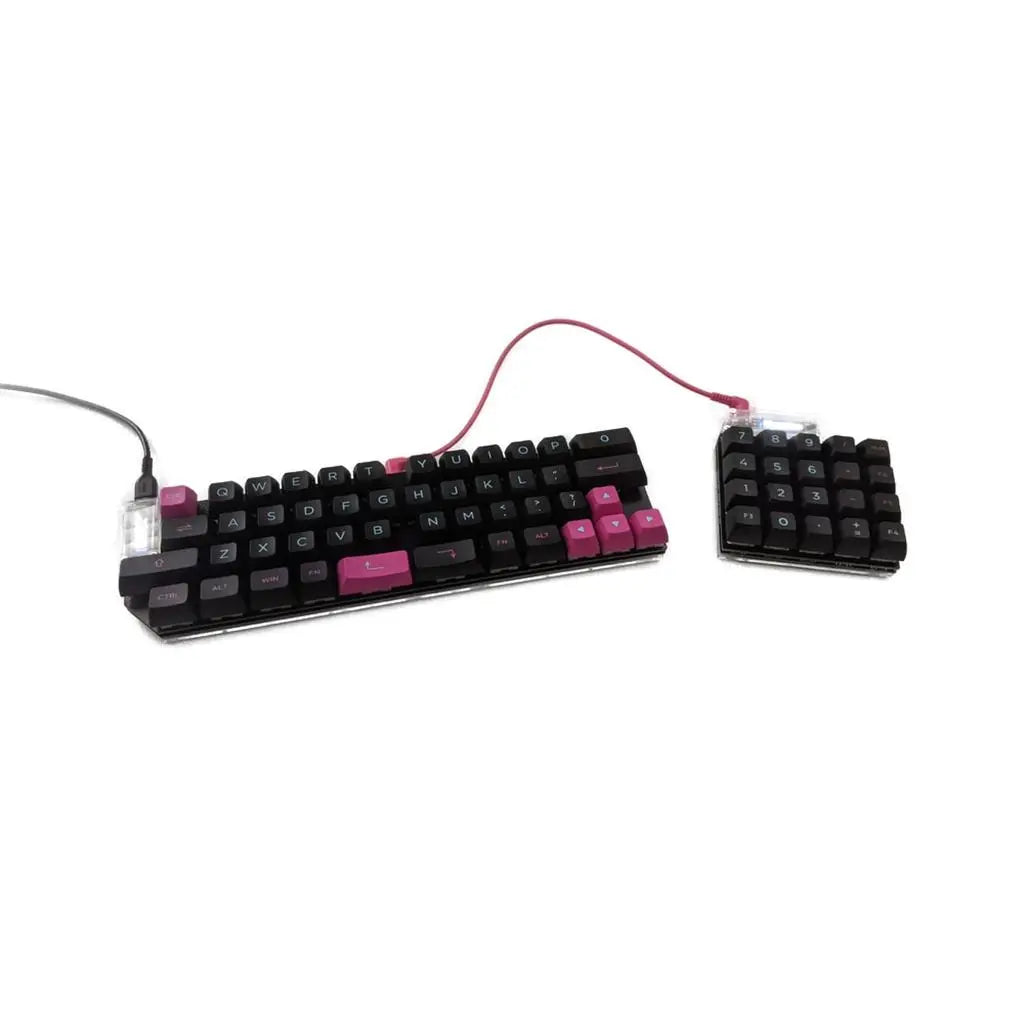

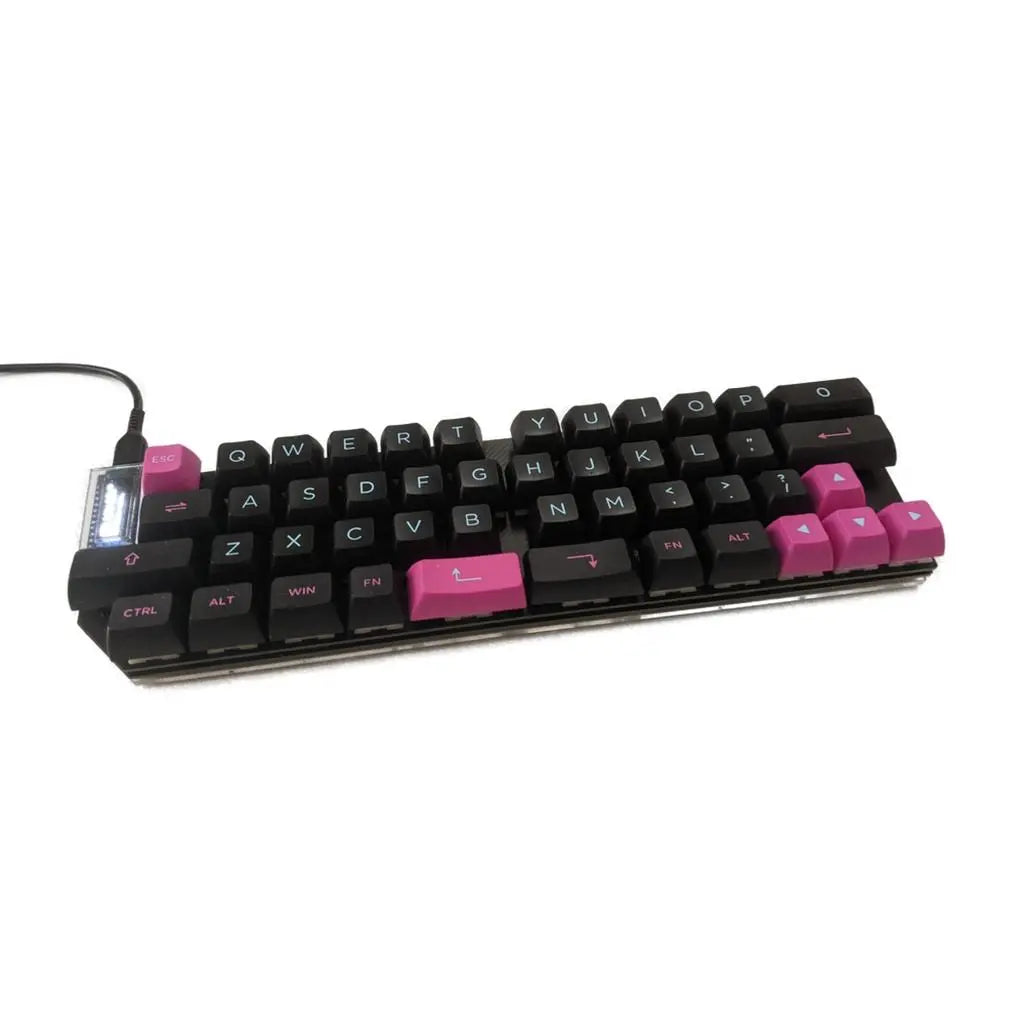

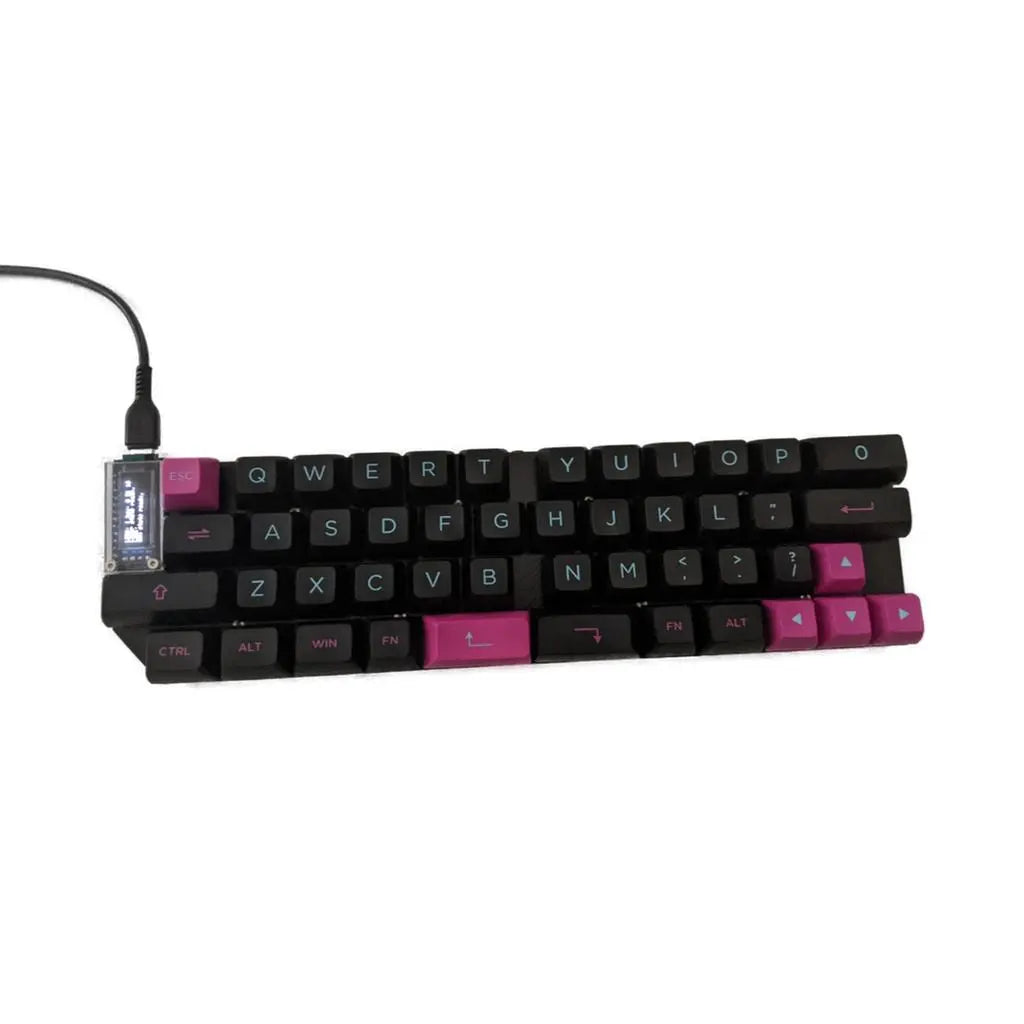

The Treadstone48 is 47 or 48-key (50%) Symmetric staggered keyboard. It is based on the Rhymestone. Therefore, The Rhymestone can connect to the Treadstone48 as a Numpad or lefthand keyboard.

This Symmetrical Staggered is designed to be easy to use in a natural posture and easy for your fingers to reach.

This keyboard runs QMK and the firmware can be found here.

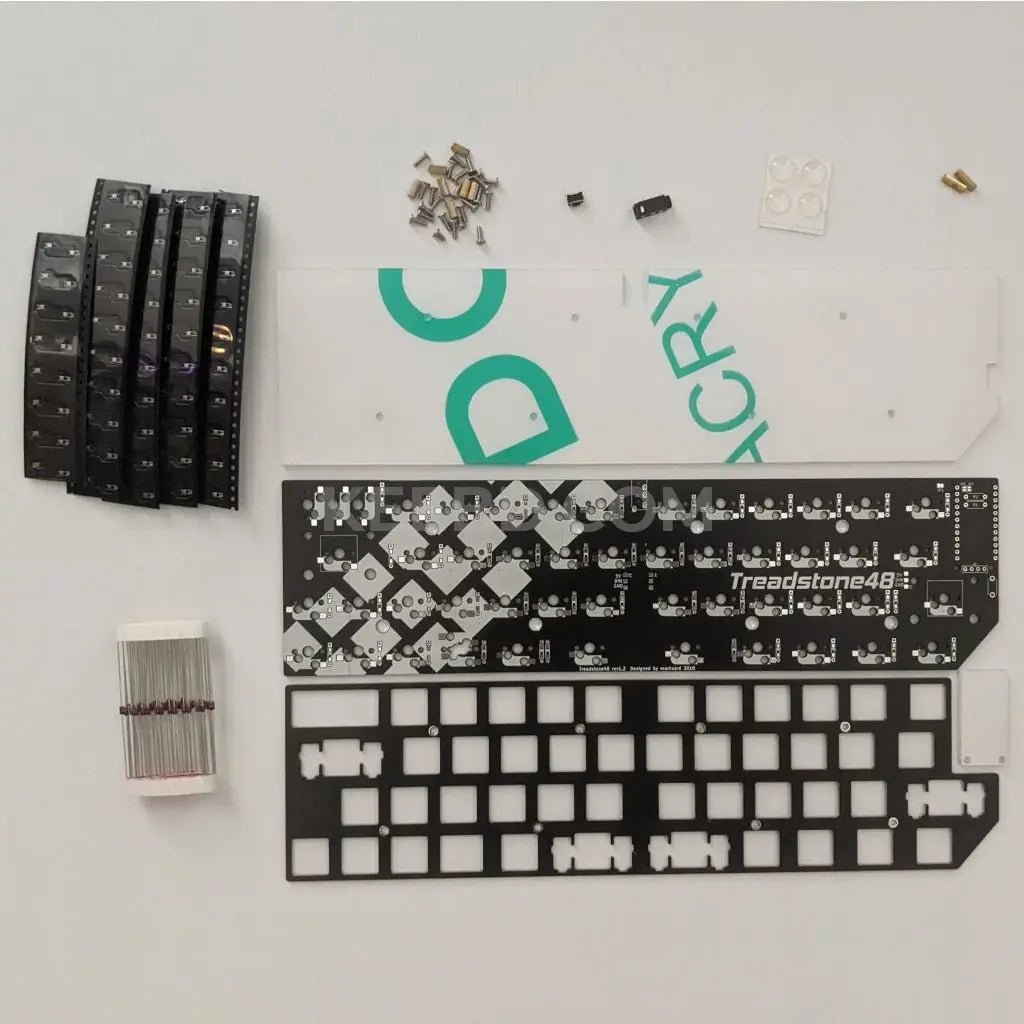

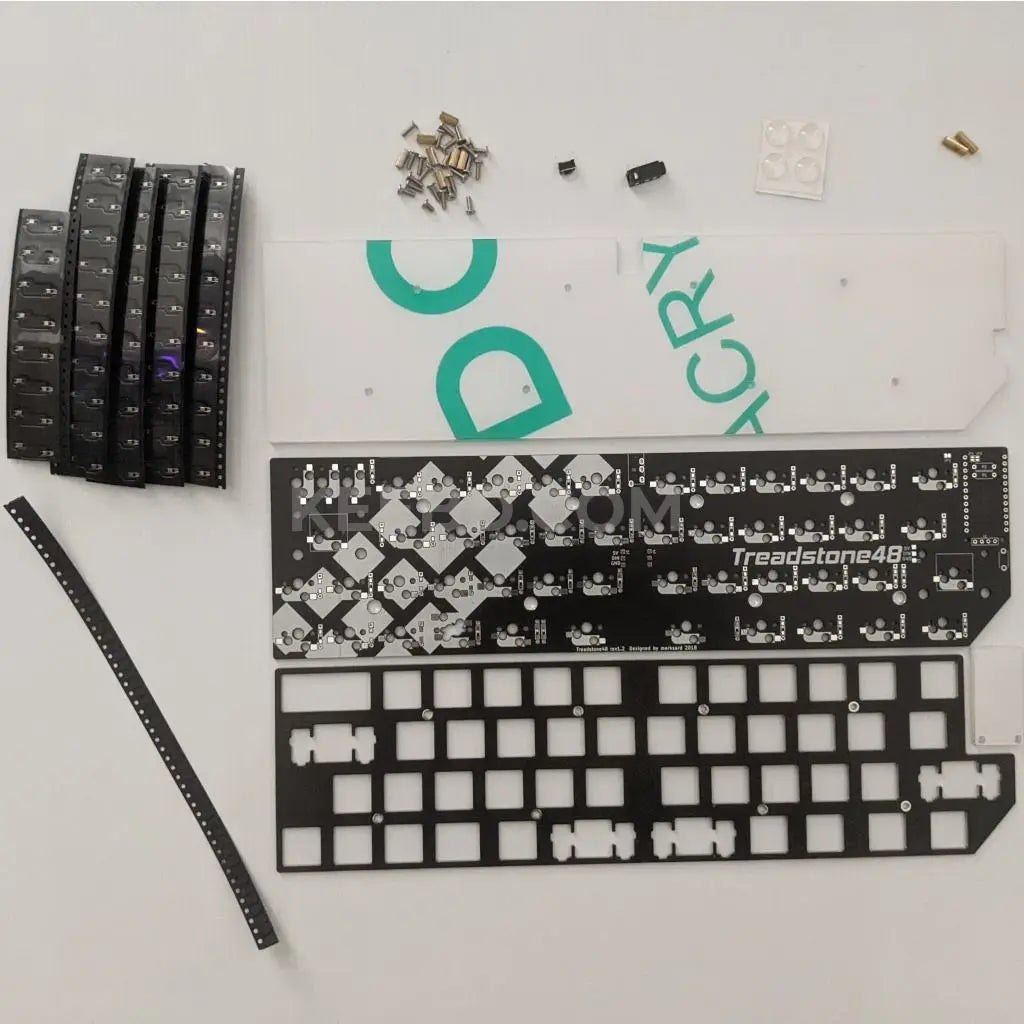

Kit Includes

1 x FR4 Switch Plates

1 x Treadstone48 PCB

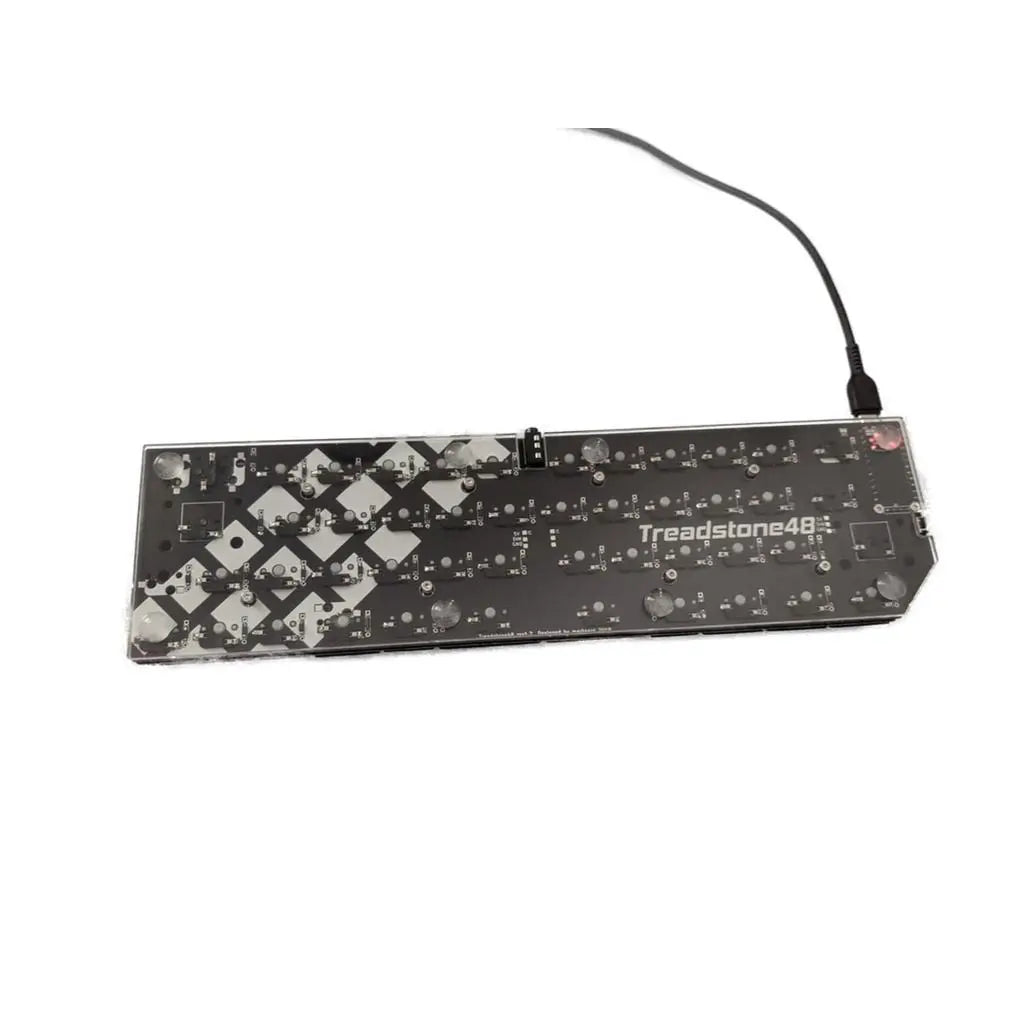

1 x Acrylic Bottom Plate

1 x Acrylic OLED Cover Plate

1 x TRRS Sockets

1 x Tactile Switch

1 x .91" OLED Display

48 x Kailh Hotswap Sockets

48 x Diodes (Through Hole or SMD)

8 x 7mm Brass Standoffs

2 x 10mm Brass Standoffs

10 x 4mm Screws

10 x 6mm Screws

4 x Clear Rubber Feet



Required to Complete

2 x Pro Micro Controllers (Comes with Headers to Direct Attach)

47-48 x MX Switches

47-48 x MX Keycaps



Optional Items

6 x WS2812B RGB LED Strip

Controller Hot Swap Option

1 x 40 Pin Machined Breakable Female Header

1 x 25 Mill-Max Machined Pins



Build Instructions

Treadstone48 Build Guide

Note: The OLED display needs to have the corners cut off to fit in between the OLED cover legs. Alternatively we socket the OLED display using diode legs and bend it forward out of the way of the legs for a nice fit.



This keyboard is designed by Marksard.
